8" x 3" Polyurethane Casters

Diameter: 8, 10, 12 inTread: 4 inCapacity: up to 6,000 lb
8" x 3" Polyurethane Casters for warehouse carts on epoxy and smooth concrete. Catalog chips cover wheel diameters 8, 10, 12 in, polyurethane treads, and plate-mount frames. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. Harder poly rolls easier on smooth epoxy; softer poly cushions vibration on uneven slabs. These heavy-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

3500 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 8" x 3" Superlast® Polyurethane (95A) on Forged Steel Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-83SYT 8" x 3" Superlast Poly Swivel Caster – 3500 lb
Part # S-MD-83SYT
from $1,162.00
Volume pricing available
PolyurethanePlate
Load rating
3500 lbs
Diameter 8"
Capacity 3500 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 11"
Bolt Pattern 7" x 7"
Hamilton Maxi-Duty Swivel Caster with 8" x 3" Superlast® Polyurethane (95A) on Forged Steel...
Shop Product
6000 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 12" x 4" Superlast Polyurethane (95A) on Forged Steel Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-124SYT 12" x 4" Poly Swivel Caster – 6000 lb
Part # S-MD-124SYT
from $1,588.00
Volume pricing available
PolyurethanePlate
Load rating
6000 lbs
Diameter 12"
Capacity 6000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 15-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 12" x 4" Superlast Polyurethane (95A) on Forged Steel...
Shop Product
5000 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 10" x 4" Superlast Polyurethane (95A) on Forged Steel Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-104SYT 10" x 4" Superlast Poly Swivel Caster – 5000 lb
Part # S-MD-104SYT
from $1,403.00
Volume pricing available
PolyurethanePlate
Load rating
5000 lbs
Diameter 10"
Capacity 5000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 13"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 10" x 4" Superlast Polyurethane (95A) on Forged Steel...
Shop Product
3500 lbs
TieredPricing

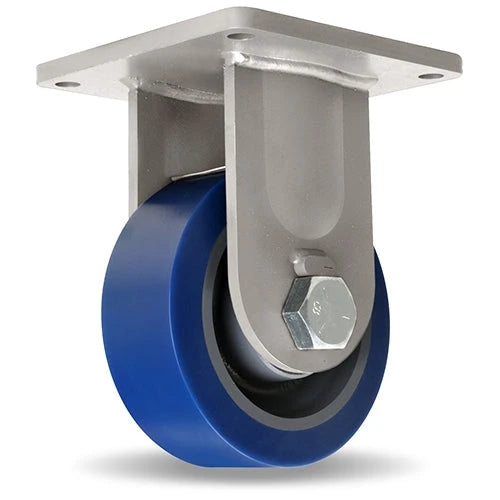

Hamilton Maxi-Duty Rigid Caster with 8" x 3" Superlast® Polyurethane (95A) on Forged Steel Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-83SYT 8" x 3" Superlast Polyurethane Rigid Caster – 3500 lb
Part # R-MD-83SYT
$746.00
Volume pricing available
PolyurethanePlate
Load rating
3500 lbs
Diameter 8"
Capacity 3500 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 11"
Bolt Pattern 7" x 7"
Hamilton Maxi-Duty Rigid Caster with 8" x 3" Superlast® Polyurethane (95A) on Forged Steel...
Shop Product
6000 lbs
TieredPricing

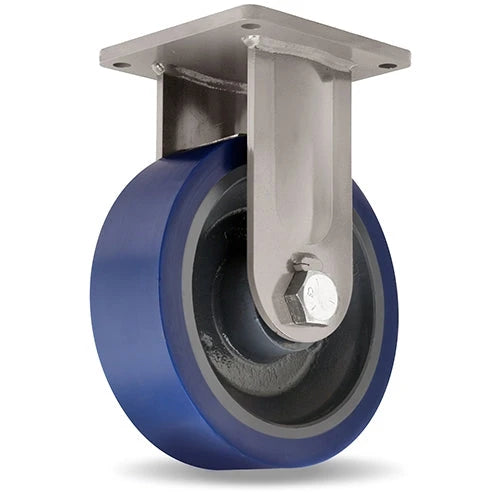

Hamilton Maxi-Duty Rigid Caster with 12" x 4" Superlast Polyurethane (95A) on Forged Steel Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-124SYT 12" x 4" Superlast Poly Rigid Caster – 6000 lb
Part # R-MD-124SYT
$1,165.00
Volume pricing available
PolyurethanePlate
Load rating
6000 lbs
Diameter 12"
Capacity 6000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 15-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 12" x 4" Superlast Polyurethane (95A) on Forged Steel...
Shop Product
5000 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 10" x 4" Superlast Polyurethane (95A) on Forged Steel Wheel with 1 1/4" Precision Tapered Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-104SYT 10" x 4" Superlast Poly Rigid Caster – 5000 lb
Part # R-MD-104SYT
$1,016.00
Volume pricing available
PolyurethanePlate
Load rating
5000 lbs
Diameter 10"
Capacity 5000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 13"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 10" x 4" Superlast Polyurethane (95A) on Forged Steel...
Shop Product

Maxi-Duty Caster Series with Superlast Polyurethane Wheels

For the extra tough jobs requiring protective polyurethane treads, Hamilton manufacturers these top-of-the-line Superlast® Wheels. The extra-thick (1") blue treads (hardness of 90-95 Shore A) are liquid cast and chemically bonded to solid-web, drop forged steel centers.
