4" x 2" Stainless Steel Casters

Plate sizes: 2-1/2 x 3-5/8, 2-11/16 x 3-5/8, 4 x 4-1/2Bolt holes: 1-3/4 x 2-13/16; 2-5/8 x 3-3/8 slotted to 3 x 3; 3 x 3Diameter: 4, 5 inTread: 1-1/4, 2, 4-1/2 inCapacity: up to 650 lb
2-1/2 x 3-5/8 inch top-plate casters for light institutional and furniture-grade frames. Catalog chips cover wheel diameters 4, 5 in, polyolefin, steel, and stainless treads, and capacities 300 to 650 lb. Replace worn corners in matched sets when possible so the cart tracks straight under load. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. These light-duty options cover everyday light institutional and furniture-grade frames without jumping to extreme forged series.
650 lbs
TieredPricing
Stainless Steel Hi-Temp Retort Precision Ball Bearing Swivel Caster with 4"x4.5" Plate - 650 lb Capacity colson-header
Ships in 1-3 Business Days
Colson 5"x2" Hi-Temp Stainless Swivel Caster – 650 lb
Part # D4.05109.835-RW-BRK7-SS
from $281.00
Volume pricing available
Plate
Load rating
650 lbs
Diameter 5"
Capacity 650 lbs
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 4-1/2"
Height 6.5"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 600°F
Rig Type Swivel
Brake Top Lock Brake
Frame Zinc Plated Steel
Stainless Steel Hi-Temp Retort Precision Ball Bearing Swivel Caster 650 lb Capacity | 4"x4.5"...
Shop Product
650 lbs
TieredPricing

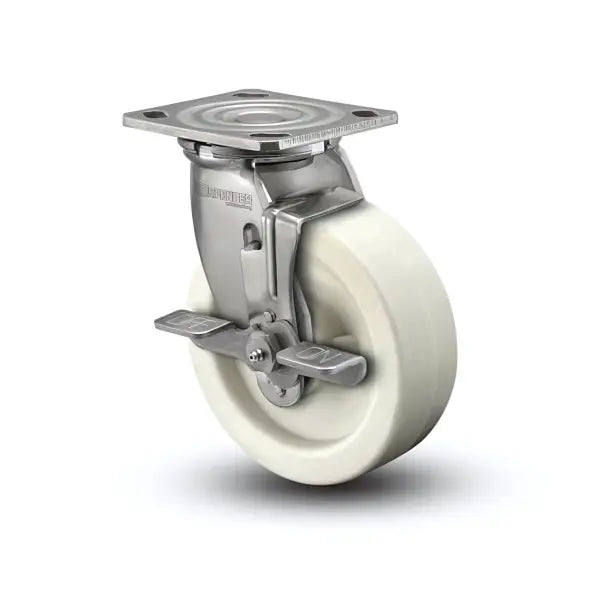

5"x2" Stainless Steel Hi-Temp Retort Swivel Caster, 650 lb Capacity, 4"x4.5" Plate colson-header
Ships in 1-3 Business Days
Colson 5"x2" Retort Swivel Stainless Caster – 650 lb
Part # D4.05109.831-RW-BRK7-SS
from $289.00
Volume pricing available
PolyurethanePlate
Load rating
650 lbs
Diameter 5"
Capacity 650 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6.5"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Swivel
Brake Top Lock Brake
Frame Zinc Plated Steel
Stainless 5"x2" Hi-Temp Retort Delrin Bearing Top-Lock Caster Durable & Reliable | High Load...
Shop Product
650 lbs
TieredPricing
Colson Casters Stainless 5" x 2" Polyolefin Delrin Bearing Top-Lock Caster with 4" x 4.5" Plate - SKU: D4.05109.831 BRK7 SS - Durable, Smooth Rolling & Safe for Industrial, Medical & Heavy-Duty Applications colson-header
Ships in 1-3 Business Days
Colson D4.05109.831 BRK7 SS 5" x 2" Polyolefin Stainless Caster with Brake
Part # D4.05109.831-BRK7-SS
from $210.00
Volume pricing available
PolyolefinPlate
Load rating
650 lbs
Diameter 5"
Capacity 650 lbs
Wheel Polyolefin
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 600°F
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Stainless Steel
Colson Casters | Stainless 5" x 2" Polyolefin Delrin Bearing Top-Lock Caster with 4"...
Shop Product
500 lbs
TieredPricing
Colson Casters Stainless 4" x 2" Hi-Temp Retort Roller Bearing Top-Lock Caster with 4" x 4.5" Plate - SKU: D4.04109.839 RW BRK7 SS WB29 | Heat-Resistant Industrial Casters for High-Temperature Environments colson-header
Ships in 1-3 Business Days
Colson D4.04109.839 4" x 2" Hi-Temp Stainless Caster with Brake – CasterHQ
Part # D4.04109.839-RW-BRK7-SS-WB29
from $273.00
Volume pricing available
PolyurethanePlate
Load rating
500 lbs
Diameter 4"
Capacity 500 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 180°F
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Stainless Steel
Colson Casters | Stainless 4" x 2" Hi-Temp Retort Roller Bearing Top-Lock Caster with...
Shop Product
500 lbs
TieredPricing
Colson Casters Stainless 4" x 2" Polyolefin Roller Bearing Top-Lock Caster with 4" x 4.5" Plate - SKU: D4.04109.839 BRK7 SS WB29 | Heavy-Duty, Durable Mobility Solution for Industrial & Medical Applications colson-header
Ships in 1-3 Business Days
Colson D4.04109.839 4"x2" Polyolefin Stainless Caster with Brake
Part # D4.04109.839-BRK7-SS-WB29
from $196.00
Volume pricing available
PolyolefinPlate
Load rating
500 lbs
Diameter 4"
Capacity 500 lbs
Wheel Polyolefin
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 600°F
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Stainless Steel
Colson Casters | Stainless 4" x 2" Polyolefin Roller Bearing Top-Lock Caster with 4"...
Shop Product
500 lbs
TieredPricing

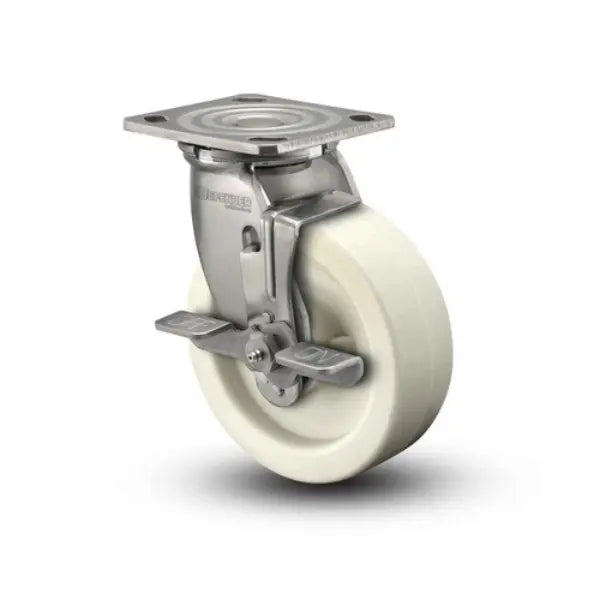

Colson Casters | Stainless 4" x 2" Hi-Temp Retort Precision Ball Bearing Top-Lock Caster with 4" x 4.5" Plate - SKU: D4.04109.835 RW BRK7 SS | Durable, High-Temperature Industrial Caster for Laboratories & Manufacturing colson-header
Ships in 1-3 Business Days
Colson D4.04109.835 Stainless 4" x 2" Hi-Temp Caster with Brake – CasterHQ
Part # D4.04109.835-RW-BRK7-SS
from $270.00
Volume pricing available
PolyurethanePlate
Load rating
500 lbs
Diameter 4"
Capacity 500 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 180°F
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Stainless Steel
Colson Casters | Stainless 4" x 2" Hi-Temp Retort Precision Ball Bearing Top-Lock Caster...
Shop Product
500 lbs
TieredPricing

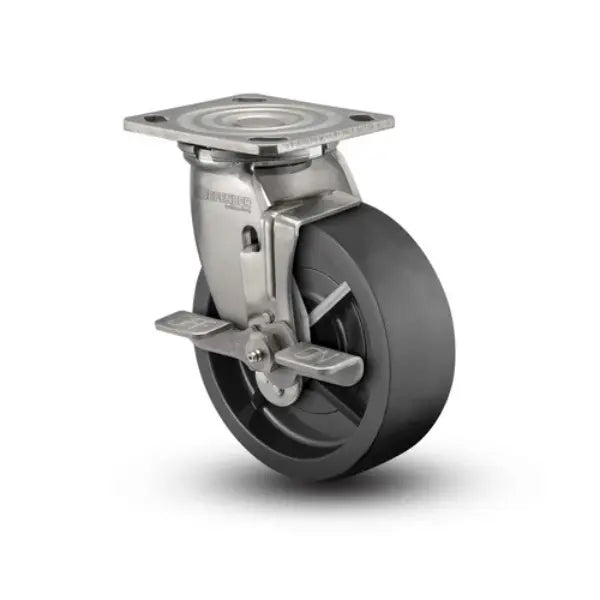

Colson Casters Stainless 4" x 2" Polyolefin Delrin Bearing Top-Lock Caster with 4" x 4.5" Plate - SKU: D4.04109.831 BRK7 SS | Heavy-Duty, Durable, Industrial & Healthcare Mobility Solutions colson-header
Ships in 1-3 Business Days
Colson D4.04109.831 4" x 2" Polyolefin Stainless Caster with Brake
Part # D4.04109.831-BRK7-SS
from $201.00
Volume pricing available
PolyolefinPlate
Load rating
500 lbs
Diameter 4"
Capacity 500 lbs
Wheel Polyolefin
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -40°F to 600°F
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Stainless Steel
Colson Casters | Stainless 4" x 2" Polyolefin Delrin Bearing Top-Lock Caster with 4"...
Shop Product
300 lbs
TieredPricing
Colson Casters 5" x 1.25" Polyolefin Ball Bearing Top-Lock Caster with 2.5" x 3.625" Plate - SKU: 2.05256.55 BRK1 | Heavy Duty Caster for Industrial, Commercial, and Warehouse Use colson-header
Ships in 1-3 Business Days
Colson 2.05256.55 BRK1 5" x 1.25" Polyolefin Top-Lock Caster
Part # 2.05256.55-BRK1
from $53.00
Volume pricing available
PolyolefinPlate
Load rating
300 lbs
Diameter 5"
Capacity 300 lbs
Wheel Polyolefin
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-1/4"
Height 6-3/16"
Bolt Pattern 1-3/4" x 2-13/16"
Temp Range -40°F to 600°F
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Stainless Steel
Colson Casters | 5" x 1.25" Polyolefin Ball Bearing Top-Lock Caster with 2.5" x...
Shop Product
300 lbs
TieredPricing

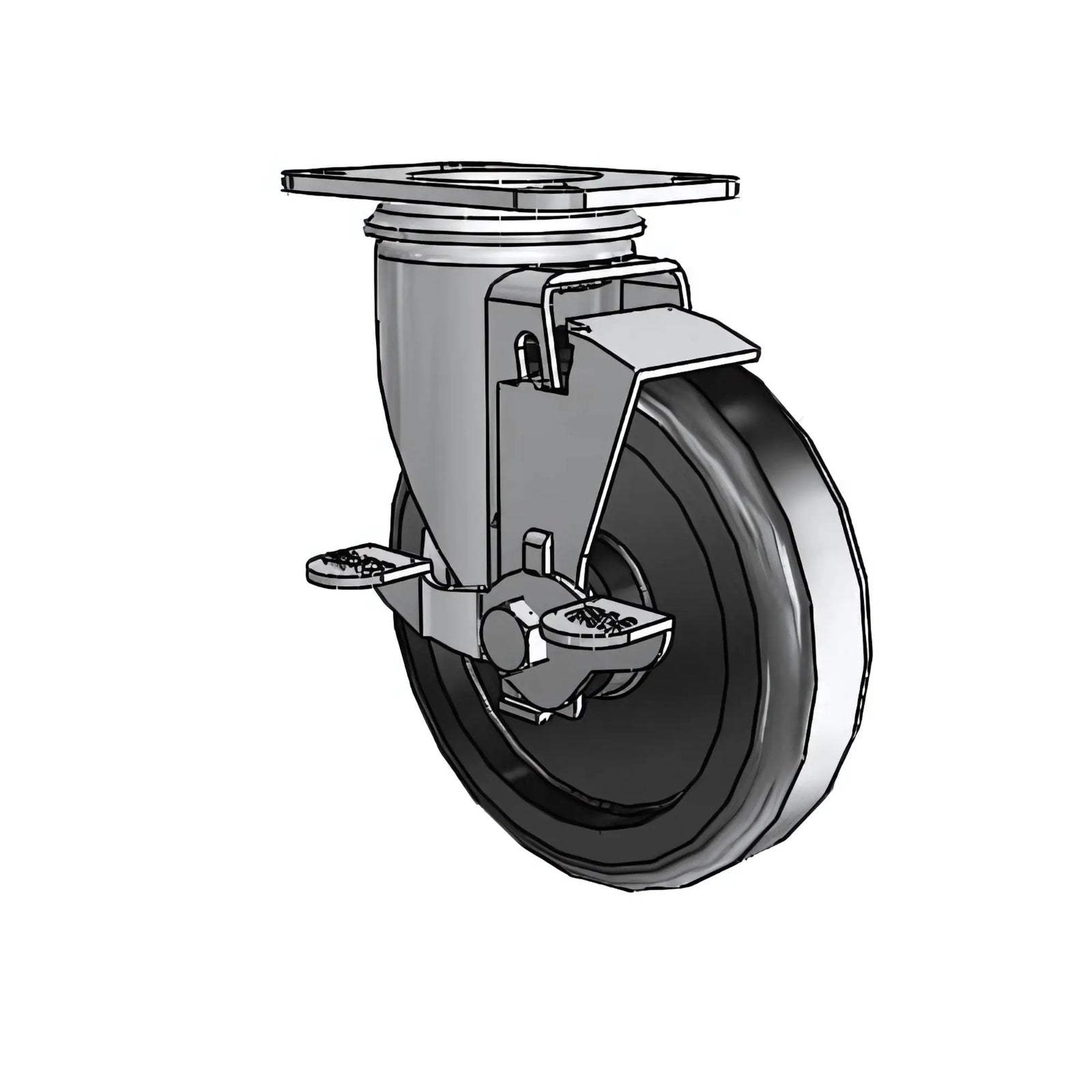

Colson Casters 5" x 1.25" Polyolefin Delrin Bearing Top-Lock Caster with 2.5" x 3.625" Plate - SKU: 2.05256.53 BRK1 | Durable, Smooth Mobility for Industrial & Commercial Use colson-header
Ships in 1-3 Business Days
Colson 2.05256.53 BRK1 5" x 1.25" Polyolefin Caster with Brake – CasterHQ
Part # 2.05256.53-BRK1
from $44.00
Volume pricing available
PolyolefinPlate
Load rating
300 lbs
Diameter 5"
Capacity 300 lbs
Wheel Polyolefin
Mount Plate
Plate Size 2-11/16" x 3-5/8"
More Details Less Details
Width 1-1/4"
Height 6.19"
Bolt Pattern 1-3/4" x 2-13/16"
Temp Range -20°F to 180°F
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Zinc Plated Steel
Colson Casters | 5" x 1.25" Polyolefin Delrin Bearing Top-Lock Caster with 2.5" x...
