Up to 350 lbs
Up to 6,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
High-capacity loads
Shock absorbing
Corrosion resistant
Outdoor / rough terrain
OEM replacements
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

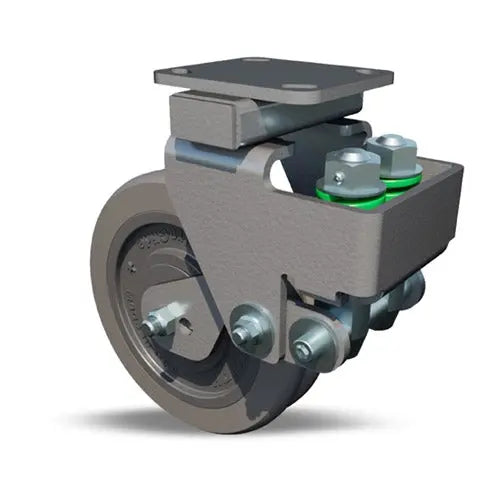

The UltraGlide 24/7 | AGV is designed to excel in a myriad of applications, especially automated guided vehicles (AGVs), and continuous duty operations. With a capacity range of 750 - 6500 lbs per wheel, adaptability and performance are at the forefront.
Built upon the esteemed legacy of its predecessor, the UltraGlide series offers innovative swivel surfaces ensuring reduced friction and effortless turns. Experience minimal maintenance and low startup forces, attributing to the split outer raceways.
The AGV poly formulation is not just about durability; it's an epitome of efficiency. Crafted to operate at cooler temperatures than most of its counterparts and impervious to moisture, it’s the leading choice for operations in wet and outdoor conditions.
Elevate operational efficiency with a wheel designed for both manual and powered applications, ensuring smooth turns and cooler, moisture-resistant operation. With a significant capacity range, the UltraGlide 24/7 | AGV is the embodiment of reliability and performance, crafted meticulously for the most demanding applications.
