All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Stevens ESCORT SRT-8 steel appliance hand truck, red steel frame, black uprights, strap and footplate

Safe & Appliance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

7" dia. Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 12 inTread: 3 inCapacity: 2,600 to 4,000 lb per casterPlate sizes: 5-1/4 x 7-1/4
This page lists seven polyurethane casters with 6 to 12 in wheels, rated 2,600 to 4,000 lb each, made by Hamilton. Plates include 5-1/4 x 7-1/4 in, in both swivel and rigid, with no brake options. You will find a Hamilton R-CH-63SWC95 6 x 3 in UltraGlide triple wheel rigid caster rated 2,600 lb and a Hamilton S-CH-83SWC95 8 x 3 in UltraGlide triple wheel swivel caster rated 4,000 lb here.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

4000 lbs
TieredPricing
Hamilton Champion Swivel Caster with 8" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-CH-83SWC95 8" x 3" UltraGlide Triple Wheel Swivel Caster
Part # S-CH-83SWC95
from $699.00
Volume pricing available
Polyurethane
Load rating
4000 lbs
Size8" x 3"
Capacity4000 lbs
WheelPolyurethane
Mount—
Type—
More Details Less Details
Width 3"
Height 10-1/2"
Core Aluminum
Hamilton Champion Swivel Caster with 8" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread...
Shop Product
2600 lbs
TieredPricing
Hamilton Champion Swivel Caster with 6" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-CH-63SWC95 6" x 3" UltraGlide Swivel Caster – 2600 lb
Part # S-CH-63SWC95
from $650.00
Volume pricing available
Polyurethane
Load rating
2600 lbs
Size6" x 3"
Capacity2600 lbs
WheelPolyurethane
Mount—
Type—
More Details Less Details
Width 3"
Height 8"
Core Aluminum
Hamilton Champion Swivel Caster with 6" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread...
Shop Product
4000 lbs
TieredPricing
Hamilton Champion Swivel Caster with 10" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton CH-13SWF95 10" x 3" UltraGlide Swivel Caster – 4000 lb
Part # S-CH-13SWF95
from $858.00
Volume pricing available
Polyurethane
Load rating
4000 lbs
Size10" x 3"
Capacity4000 lbs
WheelPolyurethane
Mount—
Type—
More Details Less Details
Width 3"
Height 12-1/2"
Core Aluminum
Hamilton Champion Swivel Caster with 10" x 3" UltraGlide (95A) Triple Wheel Grey Tread...
Shop Product
4000 lbs
TieredPricing
Hamilton Champion Swivel Caster with 12" x 3" UltraGlide (95A) Triple Wheel Black Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton CH-12SWF95 12" x 3" UltraGlide Swivel Caster – 4000 lb
Part # S-CH-12SWF95
from $967.00
Volume pricing available
PolyurethanePlate
Load rating
4000 lbs
Size12" x 3"
Capacity4000 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 3"
Height 15-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Aluminum
Temp Range -50°F to 200°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Champion Swivel Caster with 12" x 3" UltraGlide (95A) Triple Wheel Black Tread...
Shop Product
2600 lbs
TieredPricing
Hamilton Champion Rigid Caster with 6" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-CH-63SWC95 6" x 3" UltraGlide Triple Wheel Rigid Caster – 2600 lb
Part # R-CH-63SWC95
$489.00
Volume pricing available
Polyurethane
Load rating
2600 lbs
Size6" x 3"
Capacity2600 lbs
WheelPolyurethane
Mount—
Type—
More Details Less Details
Width 3"
Height 8"
Core Aluminum
Hamilton Champion Rigid Caster with 6" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread...
Shop Product
4000 lbs
TieredPricing

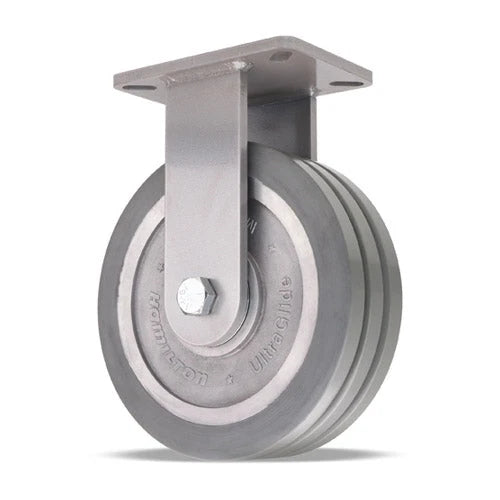

Hamilton Champion Rigid Caster with 10" x 3" UltraGlide (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-CH-13SWF95 10" x 3" UltraGlide Rigid Caster – 4000 lb
Part # R-CH-13SWF95
$846.00
Volume pricing available
PolyurethanePlate
Load rating
4000 lbs
Size10" x 3"
Capacity4000 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Aluminum
Temp Range -50°F to 200°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 10" x 3" UltraGlide (95A) Triple Wheel Grey Tread...
Shop Product
4000 lbs
TieredPricing
Hamilton Champion Rigid Caster with 12" x 3" UltraGlide (95A) Triple Wheel Black Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-CH-12SWF95 12" x 3" UltraGlide Rigid Caster – 4000 lb
Part # R-CH-12SWF95
$766.00
Volume pricing available
PolyurethanePlate
Load rating
4000 lbs
Size12" x 3"
Capacity4000 lbs
WheelPolyurethane
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 15-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Aluminum
Temp Range -50°F to 200°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 12" x 3" UltraGlide (95A) Triple Wheel Black Tread...
Shop Product

Champion Caster Series with UltraGlide 24/7 Wheels

The new UltraGlide 24/7 | AGV represents Hamilton’s latest modular wheel design to reduce the amount of energy needed to move loads in manual or powered applications.

The new UltraGlide series, like its twin-wheel predecessor, features independent swivel surfaces that eliminates scrubbing, making it much easier to turn. The wheel assembly also includes split outer raceways to minimize friction that provides low startup and maintain forces.
