Hamilton Spring-Loaded AEZFFM Forge Master Casters w/ UltraGlide 24/7 Wheels · Up to 2,775 lb

Diameter: 6, 8 inTread: 3 inCapacity: up to 2,775 lb
Hamilton Spring-Loaded AEZFFM Forge Master for heavy warehouse carts, die carts, and plant fixtures. You will see wheel diameters 6, 8 in, plate-mount frames, and capacities 2,775 lb across the SKUs listed below. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

2775 lbs
TieredPricing
Hamilton Aerospace S-AEZFFM-83SWC95 - 8" x 3" UltraGlide Spring Loaded Forge Master Swivel Caster with Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-AEZFFM-83SWC95 8" x 3" UltraGlide Swivel Spring Loaded Caster – 2775 lb
Part # S-AEZFFM-83SWC95
$2,091.00
Volume pricing available
PolyurethanePlate
Load rating
2775 lbs
Diameter 8"
Capacity 2775 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 3"
Height 13"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Aerospace S-AEZFFM-83SWC95 Spring Loaded Forge Master Swivel Caster 8" x 3" UltraGlide 24-7...
Shop Product
2775 lbs
TieredPricing
Hamilton Aerospace Swivel Caster 6"x3" - UltraGlide Triple Wheel Grey Crown Tread with Aluminum Core & 3/4" Sealed Bearings - Forge Master Series Hamilton
Made to Order · 4-6 Wk
Hamilton S-AEZFFM-63SWC95 6"x3" UltraGlide Swivel Spring Loaded Caster – 2775 lb
Part # S-AEZFFM-63SWC95
$1,991.00
Volume pricing available
PolyurethanePlate
Load rating
2775 lbs
Diameter 6"
Capacity 2775 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 3"
Height 12"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Aerospace Spring Loaded Forge Master Swivel Caster 6" x 3" UltraGlide 24-7 Triple...
Shop Product
2775 lbs
TieredPricing
2775 lbs Load Capacity - 10" Hamilton Aerospace S-AEZFFM-13SWF95 Spring Loaded Forge Master Swivel Caster - UltraGlide 24-7 Triple Wheel with Precision Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-AEZFFM-13SWF95 10" x 3" UltraGlide Swivel Spring Loaded Caster – 2775 lb
Part # S-AEZFFM-13SWF95
$2,084.00
Volume pricing available
PolyurethanePlate
Load rating
2775 lbs
Diameter 10"
Capacity 2775 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 3"
Height 14"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Aerospace S-AEZFFM-13SWF95 Spring Loaded Forge Master Swivel Caster 2775 lbs Load Capacity |...
Shop Product
2775 lbs
TieredPricing
Hamilton Aerospace R-AEZFFM-83SWC95 - 8" x 3" UltraGlide Spring Loaded Forge Master Rigid Caster with Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-AEZFFM-83SWC95 8" x 3" UltraGlide Spring Loaded Rigid Caster – 2775 lb
Part # R-AEZFFM-83SWC95
$1,804.00
Volume pricing available
PolyurethanePlate
Load rating
2775 lbs
Diameter 8"
Capacity 2775 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 3"
Height 13"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Aerospace R-AEZFFM-83SWC95 Spring Loaded Forge Master Rigid Caster 8" x 3" UltraGlide 24-7...
Shop Product
2775 lbs
TieredPricing
Hamilton Aerospace Rigid Caster 6"x3" - UltraGlide Triple Wheel Grey Crown Tread with Aluminum Core & 3/4" Sealed Bearings - Forge Master Series Hamilton
Made to Order · 4-6 Wk
Hamilton R-AEZFFM-63SWC95 6"x3" UltraGlide Rigid Spring Loaded Caster – 2775 lb
Part # R-AEZFFM-63SWC95
$1,609.00
Volume pricing available
PolyurethanePlate
Load rating
2775 lbs
Diameter 6"
Capacity 2775 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 3"
Height 12"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Aerospace Spring Loaded Forge Master Rigid Caster 6" x 3" UltraGlide 24-7 Triple...
Shop Product
2775 lbs
TieredPricing

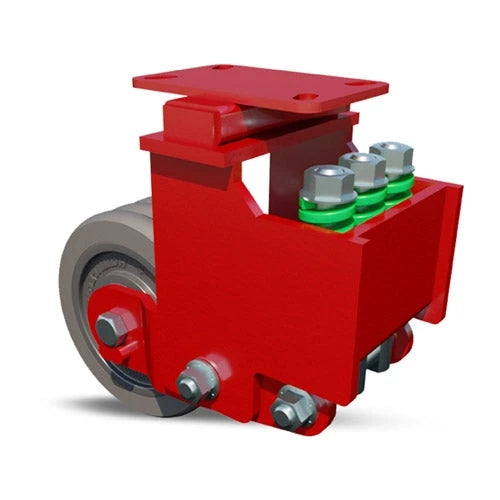

2775 lbs Load Capacity - 10" Hamilton Aerospace R-AEZFFM-13SWF95 Spring Loaded Forge Master Rigid Caster - UltraGlide 24-7 Triple Wheel with Precision Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-AEZFFM-13SWF95 10" x 3" UltraGlide Rigid Spring Loaded Caster – 2775 lb
Part # R-AEZFFM-13SWF95
$2,212.00
Volume pricing available
PolyurethanePlate
Load rating
2775 lbs
Diameter 10"
Capacity 2775 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 3"
Height 14"
Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Aerospace R-AEZFFM-13SWF95 Spring Loaded Forge Master Rigid Caster 2775 lbs Load Capacity |...
Shop Product

Hamilton Spring Loaded AEZFFM Casters with UltraGlide 24/7 Wheels

State-of-the-Art UltraGlide 24/7 Wheel Technology | Spring-Loaded for Optimal Performance

Revolutionary and Reliable Casters for Modern Needs

The Hamilton Spring Loaded AEZFFM Casters are engineered for those seeking unparalleled wheel performance. Equipped with the cutting-edge UltraGlide 24/7 Wheels, these casters guarantee smooth maneuverability around the clock. Their spring-loaded feature enhances load-bearing capabilities, ensuring they remain a top pick for industrial and commercial uses.

Efficiency Meets Durability with Hamilton's AEZFFM Casters

Opt for the AEZFFM series from Hamilton and invest in casters that redefine durability and efficiency. Whether it's for warehouse operations, commercial setups, or industrial applications, these casters stand out in terms of performance. Trust in Hamilton's legacy of crafting top-tier caster solutions.

Need Assistance? Hamilton's Expert Team is Ready to Help!

Exploring options for your operational needs? Let Hamilton's team of caster specialists guide you. Contact us on weekdays from 8 am - 5 pm and let us find the perfect caster solution tailored to your requirements.
