Hamilton Spring-Loaded Workhorse SPWH Casters w/ UltraGlide XC Wheels · Up to 1,200 lb · 4"–8"

Plate sizes: 4 x 5, 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4, 6, 8 inTread: 2 inCapacity: up to 1,450 lb
Match a 4 x 5 top plate when bolting casters under warehouse carts on epoxy and smooth concrete. You will see wheel diameters 4, 6, 8 in, polyurethane treads, and capacities 620 to 1,450 lb across the SKUs listed below. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

1450 lbs
TieredPricing
Hamilton 6" Swivel Caster - 1450 lbs Load Capacity, Spring Loaded Workhorse with UltraGlide XC Polyurethane (70D) on Cast Iron Wheel, 1/2" Sealed Precision Ball Bearings - S-SPWH-6SWF70D-2 Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPWH-6SWF70D-2 6" x 2" Poly Swivel Spring Loaded Caster – 1450 lb
Part # S-SPWH-6SWF70D-2
from $609.00
Volume pricing available
Cast IronPlate
Load rating
1450 lbs
Diameter 6"
Capacity 1450 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 5"
More Details Less Details
Width 2"
Height 8-3/16"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton 6" Swivel Caster - Model S-SPWH-6SWF70D-2 UltraGlide XC Polyurethane | 1450 lbs Load...
Shop Product
620 lbs
TieredPricing
Hamilton 620 lbs Load Capacity 6x2" Swivel Caster with Spring Loaded - UltraGlide XC Polyurethane 70D on Cast Iron Wheel, 1/2" Sealed Precision Ball Bearings - Workhorse Series S-SPWH-6SWF70D-1 Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPWH-6SWF70D-1 6" x 2" Polyurethane Swivel Spring Loaded Caster – 620 lb
Part # S-SPWH-6SWF70D-1
from $590.00
Volume pricing available
Polyurethane
Load rating
620 lbs
Diameter 6"
Capacity 620 lbs
Wheel Polyurethane
More Details Less Details
Width 2"
Height 8-3/16"
Core Iron
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton 620 lbs Load Capacity Swivel Caster - Workhorse S-SPWH-6SWF70D-1 Engineered for Performance |...
Shop Product
1200 lbs
TieredPricing
Hamilton 1200 lbs Load Capacity Spring Loaded Workhorse Swivel Caster - 4x2 UltraGlide XC Polyurethane (70D) on Cast Iron Wheel, 1/2" Sealed Precision Ball Bearings - S-SPWH-4SWF70D-2 Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPWH-4SWF70D-2 4"x2" Polyurethane Swivel Spring Loaded Caster – 1200 lb
Part # S-SPWH-4SWF70D-2
from $549.00
Volume pricing available
Cast IronPlate
Load rating
1200 lbs
Diameter 4"
Capacity 1200 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 5"
More Details Less Details
Width 2"
Height 2"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Spring Loaded Workhorse Swivel Caster S-SPWH-4SWF70D-2 Load Capacity: 1200 lbs Robust and reliable,...
Shop Product
620 lbs
TieredPricing

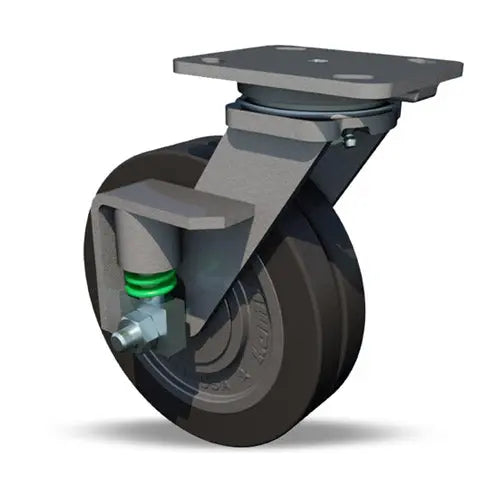

Hamilton 620 lbs Load Capacity Swivel Caster - 4" x 2" UltraGlide XC 70D Polyurethane on Cast Iron Wheel, Spring Loaded, with 1/2" Sealed Precision Ball Bearings - Workhorse S-SPWH-4SWF70D-1 Hamilton
Made to Order · 4-6 Wk
Hamilton S-SPWH-4SWF70D-1 4" x 2" Polyurethane Spring Loaded Swivel Caster – 620 lb
Part # S-SPWH-4SWF70D-1
from $549.00
Volume pricing available
PolyurethanePlate
Load rating
620 lbs
Diameter 4"
Capacity 620 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 5"
More Details Less Details
Width 2"
Height 6.6875"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Iron
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse S-SPWH-4SWF70D-1 Swivel Caster 620 lbs Load Capacity | UltraGlide XC 70D Wheel...
Shop Product
1450 lbs
TieredPricing
8" UltraGlide XC Polyurethane on Cast Iron Rigid Caster Wheel, 1450 lbs Load Capacity, Hamilton Workhorse, 1/2" Sealed Precision Ball Bearings, Spring Loaded - Model R-SPWH-8SWF70D-2 Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPWH-8SWF70D-2 8" x 2" Polyurethane Spring Loaded Rigid Caster – 1450 lb
Part # R-SPWH-8SWF70D-2
$660.00
Volume pricing available
PolyurethanePlate
Load rating
1450 lbs
Diameter 8"
Capacity 1450 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 10.1875"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton UltraGlide XC 8" Rigid Caster Wheel Model R-SPWH-8SWF70D-2 Optimal Performance & Durability |...
Shop Product
620 lbs
TieredPricing
Hamilton 620 lbs Load Capacity Rigid Caster - 8x2 UltraGlide XC Polyurethane 70D on Cast Iron Wheel, Spring Loaded, with 1/2" Sealed Precision Ball Bearings - R-SPWH-8SWF70D-1 Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPWH-8SWF70D-1 8"x2" Polyurethane Rigid Spring Loaded Caster – 620 lb
Part # R-SPWH-8SWF70D-1
from $668.00
Volume pricing available
Cast IronPlate
Load rating
620 lbs
Diameter 8"
Capacity 620 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 10.1875"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Spring Loaded Workhorse Rigid Caster R-SPWH-8SWF70D-1 Optimal Durability & Maneuverability | 620 lbs...
Shop Product
1450 lbs
TieredPricing
Hamilton 6" Rigid Caster - 1450 lbs Load Capacity, Spring Loaded Workhorse with UltraGlide XC Polyurethane (70D) on Cast Iron Wheel, 1/2" Sealed Precision Ball Bearings - R-SPWH-6SWF70D-2 Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPWH-6SWF70D-2 6" x 2" Polyurethane Rigid Spring Loaded Caster – 1450 lb
Part # R-SPWH-6SWF70D-2
from $625.00
Volume pricing available
Cast IronPlate
Load rating
1450 lbs
Diameter 6"
Capacity 1450 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 8-3/16"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton 6" Rigid Caster - Model R-SPWH-6SWF70D-2 UltraGlide XC Polyurethane | 1450 lbs Load...
Shop Product
620 lbs
TieredPricing
Hamilton 620 lbs Load Capacity 6x2" Rigid Caster with Spring Loaded - UltraGlide XC Polyurethane 70D on Cast Iron Wheel, 1/2" Sealed Precision Ball Bearings - Workhorse Series R-SPWH-6SWF70D-1 Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPWH-6SWF70D-1 6"x2" Poly Rigid Spring Loaded Caster – 620 lb
Part # R-SPWH-6SWF70D-1
from $625.00
Volume pricing available
Polyurethane
Load rating
620 lbs
Diameter 6"
Capacity 620 lbs
Wheel Polyurethane
More Details Less Details
Width 2"
Height 8-3/16"
Core Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton 620 lbs Load Capacity Rigid Caster - Workhorse R-SPWH-6SWF70D-1 Engineered for Performance |...
Shop Product
1200 lbs
TieredPricing

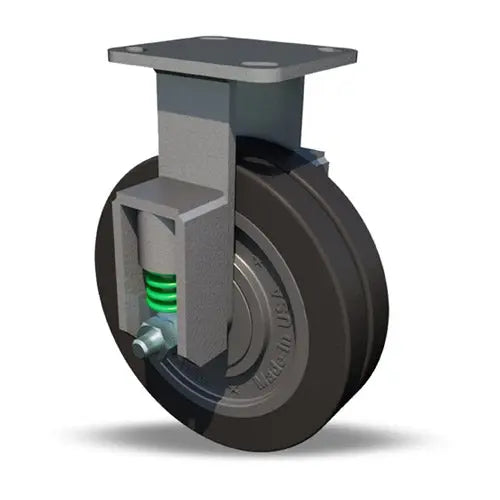

Hamilton 1200 lbs Load Capacity Spring Loaded Workhorse Rigid Caster - 4x2 UltraGlide XC Polyurethane (70D) on Cast Iron Wheel, 1/2" Sealed Precision Ball Bearings - R-SPWH-4SWF70D-2 Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPWH-4SWF70D-2 4"x2" Polyurethane Rigid Spring Loaded Caster – 1200 lb
Part # R-SPWH-4SWF70D-2
from $490.00
Volume pricing available
Cast IronPlate
Load rating
1200 lbs
Diameter 4"
Capacity 1200 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 5"
More Details Less Details
Width 2"
Height 6-11/16"
Bolt Pattern 2-5/8" x 3-5/8" and 3" x 3"
Core Aluminum
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Spring Loaded Workhorse Rigid Caster R-SPWH-4SWF70D-2 Load Capacity: 1200 lbs Robust and reliable,...
Shop Product
1200 lbs
TieredPricing
Hamilton 1200 lbs Load Capacity Rigid Caster - 4" x 2" UltraGlide XC 70D Polyurethane on Cast Iron Wheel, Spring Loaded, with 1/2" Sealed Precision Ball Bearings - Workhorse R-SPWH-4SWF70D-1 Hamilton
Made to Order · 4-6 Wk
Hamilton R-SPWH-4SWF70D-1 4" x 2" Polyurethane Rigid Spring Loaded Caster – 1200 lb
Part # R-SPWH-4SWF70D-1
from $479.00
Volume pricing available
PolyurethanePlate
Load rating
1200 lbs
Diameter 4"
Capacity 1200 lbs
Wheel Polyurethane
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6.6875"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Core Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Workhorse R-SPWH-4SWF70D-1 Rigid Caster 1200lbs Load Capacity | UltraGlide XC 70D Wheel Enhanced...
Shop Product

Hamilton Spring Loaded | SPWH Casters with UltraGlide XC Wheels

UltraGlide XC Wheel Technology | Ergonomic Spring-Loaded Design

Superior Performance with Hamilton's UltraGlide Casters

Experience industry-leading mobility with the Hamilton Spring Loaded SPWH Casters equipped with UltraGlide XC Wheels. Designed for both efficiency and endurance, these casters redefine caster performance. Their UltraGlide XC technology ensures seamless movement, while the spring-loaded design offers enhanced adaptability to various floor conditions. Ideal for e-commerce warehouse setups and other demanding environments.

Maximize Operational Efficiency with Hamilton SPWH Casters

The Hamilton SPWH series is not just another set of casters. Crafted to optimize warehouse operations, these spring-loaded casters with UltraGlide XC wheels are the epitome of durability and functionality. Elevate your e-commerce operations with Hamilton's trusted caster technology.

Need Hamilton Caster Insights? Our Experts are Ready to Assist

Considering integrating the SPWH series into your e-commerce warehouse? Let our Hamilton Caster Specialists guide you. Get in touch weekdays for expert advice on maximizing your caster performance.
