Up to 350 lbs
Up to 6,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
High-capacity loads
Shock absorbing
Corrosion resistant
Outdoor / rough terrain
OEM replacements
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

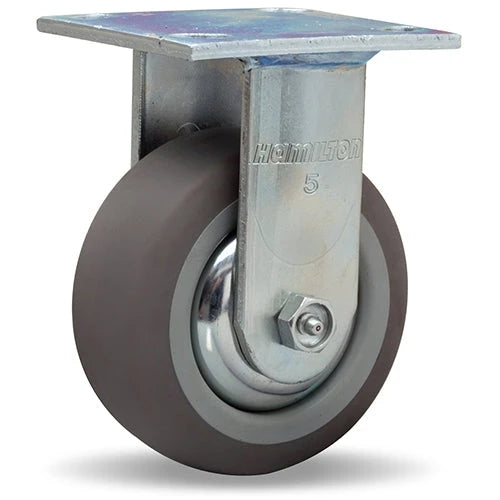

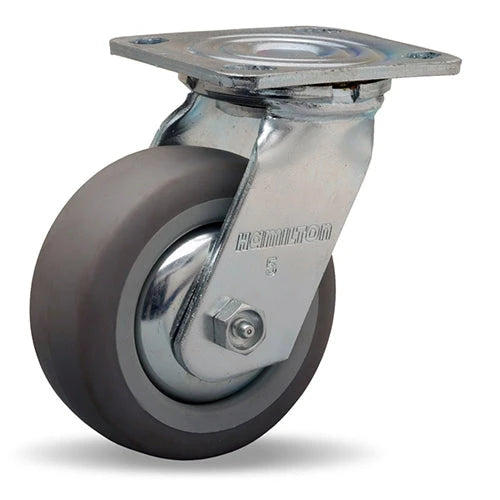

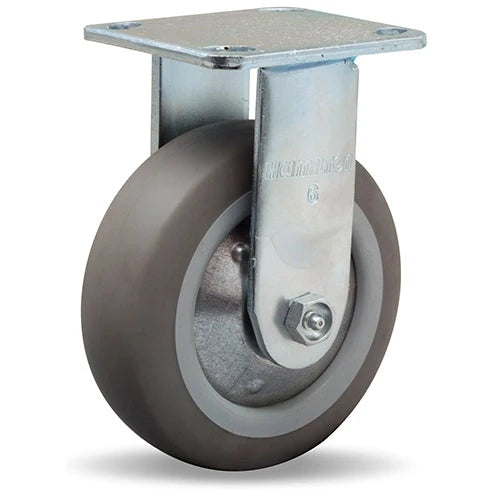

Discover the high-tech Versa-Tech Wheels, expertly designed for both industrial and institutional applications. These wheels are crafted with a soft 65 Durometer rubber tread, permanently bonded to a polyolefin core, offering unparalleled rollability and impact resistance.
Versa-Tech Wheels ensure a cushioned ride over uneven surfaces and withstand harsh conditions including exposure to oil, grease, solvents, and various chemicals. The non-marking gray rubber with a white center not only looks clean and contemporary but also minimizes floor scuffing.
Lab tests confirm that Versa-Tech Wheels outperform other major brands in terms of rollability and durability. These wheels provide the benefits of Moldon Rubber-tired wheels but are more economical and non-marking.
Suitable for a wide temperature range from -45° to +180° F and intermittently up to +220° F. The smooth, dirt-resistant design is ideal for industrial use, effectively resisting oil, grease, solvents, chemicals, and harsh cleaning compounds.
