Nylon Casters — Ergonomic Swivel Hamilton · 1,200 lb

Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 1,200 lb
Nylon Casters - Ergonomic Swivel for chemical, food-contact, and washdown carts. Expect wheel diameters 4, 5, 6, 8 in, nylon treads, and plate-mount frames. Replace worn corners in matched sets when possible so the cart tracks straight under load. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. These medium-duty options cover everyday chemical, food-contact, and washdown carts without jumping to extreme forged series.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

1200 lbs
TieredPricing
Hamilton Ergo-X2 S-ERGO-8WNB - 8" x 2" White Nylon Wheel Swivel Caster with 1/2" Sealed Precision Bearings - Durable & Ergonomic CasterHQ
Made to Order · 4-6 Wk
Hamilton S-ERGO-8WNB 8" x 2" White Nylon Swivel Ergonomic Caster – 1200 lb
Part # S-ERGO-8WNB
from $697.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 8"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Width 2"
Height 9-1/2"
Temp Range -40°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Ergo-X2 S-ERGO-8WNB Swivel Caster 8" x 2" White Nylon Wheel | 1/2" Sealed...
Shop Product
1200 lbs
TieredPricing

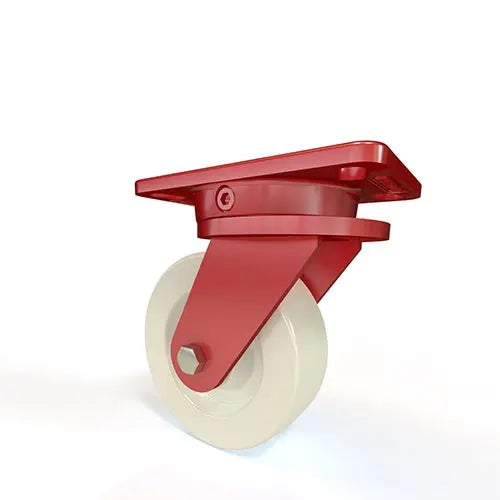

Hamilton Ergo-X2 Swivel Caster S-ERGO-6WNB - 6" x 2" White Nylon Wheel with 1/2" Sealed Precision Bearings CasterHQ
Made to Order · 4-6 Wk
Hamilton S-ERGO-6WNB 6" x 2" White Nylon Swivel Ergonomic Caster – 1200 lb
Part # S-ERGO-6WNB
from $679.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Width 2"
Height 7-1/2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-ERGO-6WNB Hamilton Ergo-X2 Swivel Caster 6" x 2" White Nylon Wheel | 1/2" Sealed...
Shop Product
TieredPricing

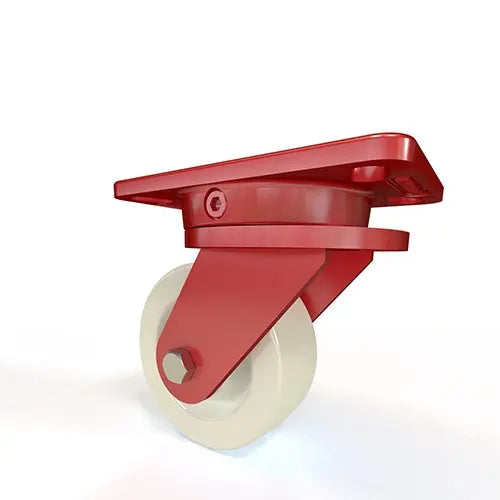

Hamilton Ergo-X2 Swivel Caster - 5" x 2" White Nylon Wheel with 1/2" Sealed Precision Ball Bearings - Premium Industrial Quality CasterHQ
Made to Order · 4-6 Wk
Hamilton S-ERGO-5WNB 5" x 2" White Nylon Swivel Ergonomic Caster
Part # S-ERGO-5WNB
from $671.00
Volume pricing available
NylonPlate
Diameter 5"
Wheel Nylon
Mount Plate
More Details Less Details
Width 2"
Height 6-1/2"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-ERGO-5WNB Hamilton Ergo-X2 Swivel Caster 5" x 2" White Nylon Wheel | 1/2" Sealed...
Shop Product
1200 lbs
TieredPricing
Hamilton Ergo-X2 Swivel Caster - 4" x 2" White Nylon Wheel - 1/2" Precision Sealed Bearings - High-Durability Industrial Caster CasterHQ
Made to Order · 4-6 Wk
Hamilton S-ERGO-4WNB 4" x 2" White Nylon Swivel Ergo Caster – 1200 lb
Part # S-ERGO-4WNB
from $658.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 4"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Width 2"
Height 5-5/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-ERGO-4WNB Hamilton Ergo-X2 Swivel Caster 4" x 2" White Nylon Wheel | 1/2" Sealed...
Shop Product
1200 lbs
TieredPricing
Hamilton Ergo-X2 R-HS-8WNB - 8" x 2" White Nylon Wheel Rigid Caster with 1/2" Sealed Precision Bearings - Durable & Ergonomic CasterHQ
Made to Order · 4-6 Wk
Hamilton R-HS-8WNB 8" x 2" White Nylon Rigid Caster – 1200 lb
Part # R-HS-8WNB
from $131.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 8"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Width 2"
Height 9-1/2"
Temp Range -40°F to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Ergo-X2 R-HS-8WNB Rigid Caster 8" x 2" White Nylon Wheel | 1/2" Sealed...
Shop Product
1200 lbs
TieredPricing

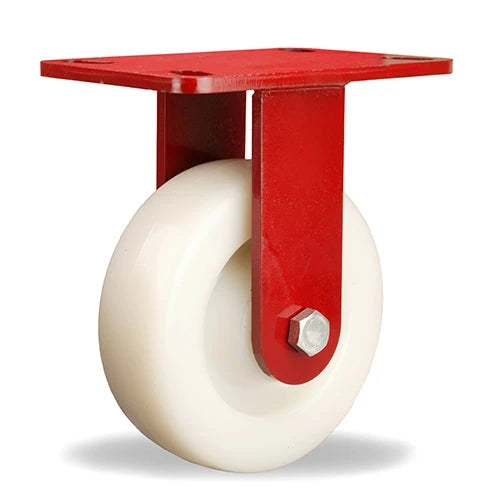

Hamilton Ergo-X2 Rigid Caster R-HS-6WNB - 6" x 2" White Nylon Wheel with 1/2" Sealed Precision Bearings CasterHQ
Made to Order · 4-6 Wk
Hamilton R-HS-6WNB 6" x 2" White Nylon Rigid Ergonomic Caster – 1200 lb
Part # R-HS-6WNB
from $98.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Width 2"
Height 7-1/2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
R-HS-6WNB Hamilton Ergo-X2 Rigid Caster 6" x 2" White Nylon Wheel | 1/2" Sealed...
Shop Product
1200 lbs
TieredPricing

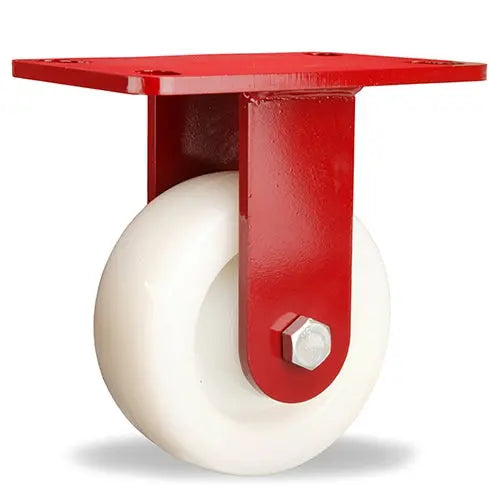

Hamilton Ergo-X2 Rigid Caster - 5" x 2" White Nylon Wheel with 1/2" Sealed Precision Ball Bearings - Premium Industrial Quality CasterHQ
Made to Order · 4-6 Wk
Hamilton R-HS-5WNB 5" x 2" White Nylon Rigid Ergonomic Caster – 1200 lb
Part # R-HS-5WNB
from $100.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 5"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Width 2"
Height 6-1/2"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
R-HS-5WNB Hamilton Ergo-X2 Rigid Caster 5" x 2" White Nylon Wheel | 1/2" Sealed...
Shop Product
1200 lbs
TieredPricing

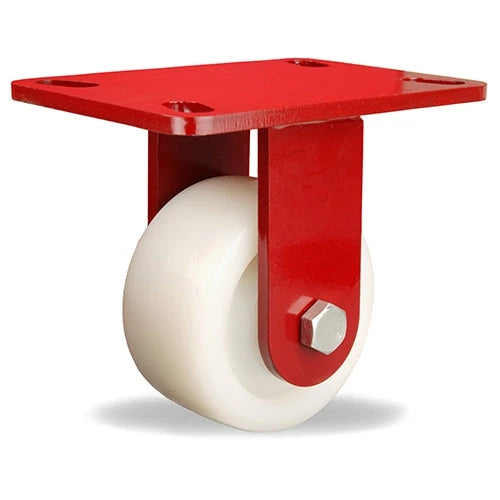

Hamilton Ergo-X2 Rigid Caster - 4" x 2" White Nylon Wheel - 1/2" Precision Sealed Bearings - High-Durability Industrial Caster CasterHQ
Made to Order · 4-6 Wk
Hamilton R-HS-4WNB 4" x 2" White Nylon Rigid Ergonomic Caster – 1200 lb
Part # R-HS-4WNB
from $94.00
Volume pricing available
NylonPlate
Load rating
1200 lbs
Diameter 4"
Capacity 1200 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Width 2"
Height 5-5/8"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
R-HS-4WNB Hamilton Ergo-X2 Rigid Caster 4" x 2" White Nylon Wheel | 1/2" Sealed...
Shop Product

Hamilton Ergo X2 Casters with White Nylon Wheels

Premium White Nylon Wheels | High-Performance Ergonomic Design

Revolutionary Ergo Design Caster for Maximum Efficiency

Discover the Hamilton Ergo X2 Casters with White Nylon Wheels - an industry-leading solution crafted for optimal ergonomic performance. The caster's white nylon wheels are not only stylish but also incredibly durable, making them perfect for a range of applications. Experience smoother operations with Hamilton's unique ergonomic caster design, ensuring prolonged usability and top-tier functionality.

Experience Ergonomic Excellence with Hamilton Ergo X2 Casters

Choosing Hamilton's Ergo X2 series means investing in top-tier caster technology. Engineered for professionals who prioritize both design and function, our ergonomic casters deliver an unparalleled user experience. Join countless satisfied customers who trust Hamilton for all their caster needs.

Need Guidance on Caster Selection? Hamilton Experts Await!

Thinking of integrating the Hamilton Ergo X2 Casters in your setup? Our seasoned team of Caster Specialists is eager to assist. Dial in weekdays between 8 am - 5 pm for tailored solutions that cater directly to your unique requirements.
