PRODUCT CODE: HRP-POA-63G

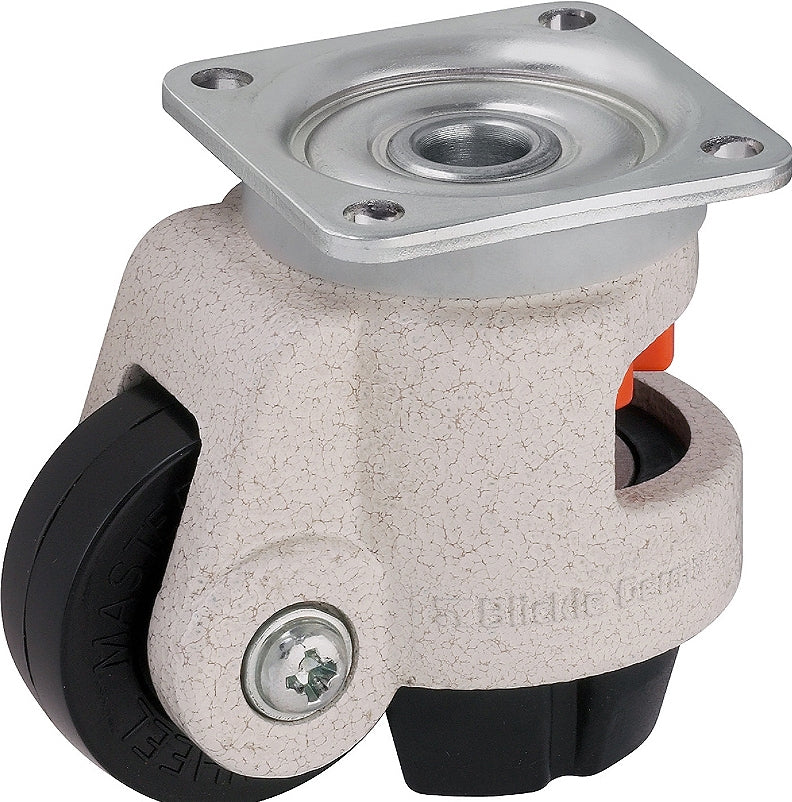

Leveling castor with integrated truck lock and top plate fitting, Nylon wheel
Bracket: Made of die-cast aluminium, with sealed ball bearing in the swivel head, steel top plate fitting. Powder-coated, ivory colour. Truck lock made of hard rubber, black. Height adjustment with flat spanner or integrated adjustment wheel. Bolted wheel axle. Steel parts are zinc-plated, blue-passivated, Cr6-free.
Wheels: Made of high-quality, impact-resistant nylon, very low rolling and swiveling resistance, smooth running performance on even floors, very high abrasion resistance.
Tread/tyre: Made of high-quality, impact-resistant nylon.
Wheel centre colour: Grey

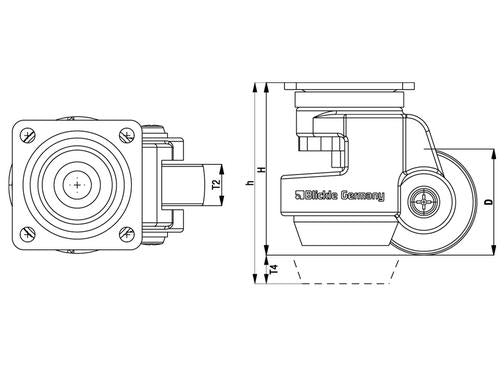

| Plate size | 90 x 90 |
| Bolt hole spacing | 70 x 70 |
| Bolt hole Ø | 9 |
| Wheel Ø | 63 mm (D) |
| Wheel width | 30 mm (T2) |
| Load capacity | 500 kg |
| Total height | 104 mm (H) |
| Max. total height | 116 mm (h) |
| Adjustment range | 12 mm (T4) |
| Offset swivel caster | 46 mm |
| unit weight | 1,3 kg |
| Temperature resistance to | -25 ° C |
| Temperature resistance to | 80 ° C |
| tread and tire hardness | 70° Shore D |
| Bearing type | Plain bore |
| Plate size | 90 x 90 |
| Bolt hole spacing | 70 x 70 |
| Bolt hole Ø | 9 |
| Wheel Ø | 63 mm (D) |
| Wheel width | 30 mm (T2) |
| Load capacity | 500 kg |
| Total height | 104 mm (H) |
| Max. total height | 116 mm (h) |
| Adjustment range | 12 mm (T4) |
| Offset swivel caster | 46 mm |
| unit weight | 1,3 kg |
| Temperature resistance to | -25 ° C |
| Temperature resistance to | 80 ° C |
| tread and tire hardness | 70° Shore D |
| Bearing type | Plain bore |
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
| Wheel Ø | 2,5 inch (D) |
| Wheel width | 1,142 inch (T2) |
| Load capacity | 1100 lbs |
| Total height | 4,1 inch (H) |
| Bolt hole Ø | 0,354 inch (d2) |
| Offset swivel caster | 1,8 inch |
| unit weight | 3 lbs |
| Temperature resistance to | -13 °F |
| Temperature resistance to | 176 °F |
| tread and tire hardness | 70° Shore D |
| Bearing type: | Plain bore |
$147.00
