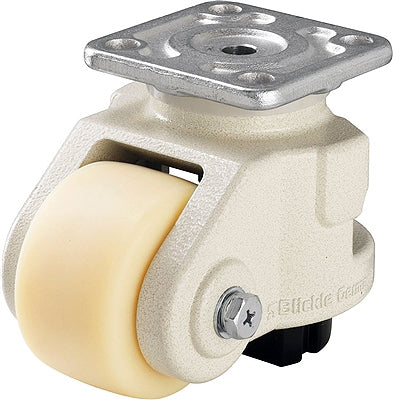

Leveling castor with integrated truck lock and top plate fitting, Nylon wheel
Bracket: Made of die-cast aluminium, with sealed ball bearing in the swivel head, steel top plate fitting. Powder-coated, ivory colour. Truck lock made of hard rubber, black. Height adjustment with flat spanner or integrated adjustment wheel. Bolted wheel axle. Steel parts are zinc-plated, blue-passivated, Cr6-free.
Wheels: Made of high-quality, impact-resistant nylon, very low rolling and swiveling resistance, smooth running performance on even floors, very high abrasion resistance.
Tread/tyre: Made of high-quality, impact-resistant nylon.
Wheel centre colour: Grey

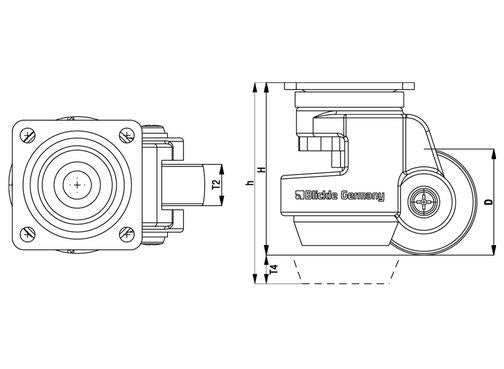

| Plate size | 100 x 100 |
| Bolt hole spacing | 70 x 70 |
| Bolt hole Ø | 13 |
| Wheel Ø | 90 mm (D) |
| Wheel width | 55 mm (T2) |
| Load capacity | 2000 kg |
| Total height | 130 mm (H) |
| Max. total height | 150 mm (h) |
| Adjustment range | 20 mm (T4) |
| Offset swivel castor | 70 mm |
| unit weight | 3,3 kg |
| Temperature resistance to | -25 ° C |
| Temperature resistance to | 80 ° C |
| tread and tyre hardness | 80° Shore D |
| Bearing type | Plain bore |
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
| Wheel Ø | 3,5 inch (D) |
| Wheel width | 2,165 inch (T2) |
| Load capacity | 4400 lbs |
| Total height | 5,1 inch (H) |
| Bolt hole Ø | 0,512 inch (d2) |
| Offset swivel castor | 2,8 inch |
| unit weight | 7,2 lbs |
| Temperature resistance to | -13 °F |
| Temperature resistance to | 176 °F |
| tread and tyre hardness | 80° Shore D |
| Bearing type: | Plain bore |
This 3-9/16" x 2-5/32" Nylon Swivel Leveling Caster – 4400 lb is rated to 4400 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2-5/32" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.
This caster uses a top-plate mount with a 100" x 100" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$604.50
| Identification | |
| Brand | Blickle |
| Dimensions & Mounting | |
| Wheel Diameter | 3-9/16" |
| Wheel Tread Width | 2-5/32" |
| Plate Size | 100" x 100" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 4400 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Zinc Plated Steel |
