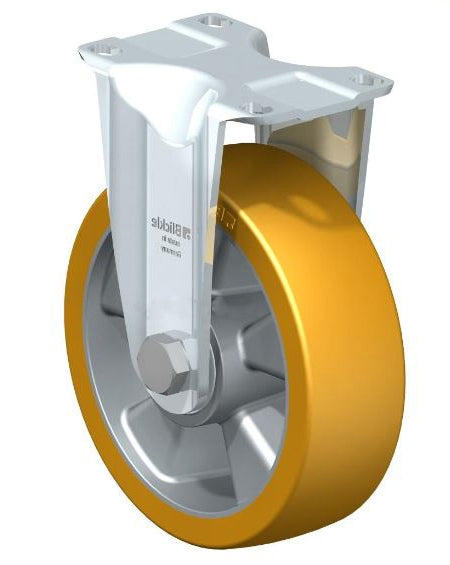

5" x 1-9/16" Extrathane Polyurethane Rigid Caster – 3-5/8" x 2-1/2" Top Plate | CasterHQ

This 5" x 1-9/16" Extrathane Polyurethane Rigid Caster – 3-5/8" x 2-1/2" Top Plate is rated to 400 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

This caster runs a Polyurethane wheel with a 1" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

This caster uses a top-plate mount with a 2" x 3" plate and a 2" x 4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
