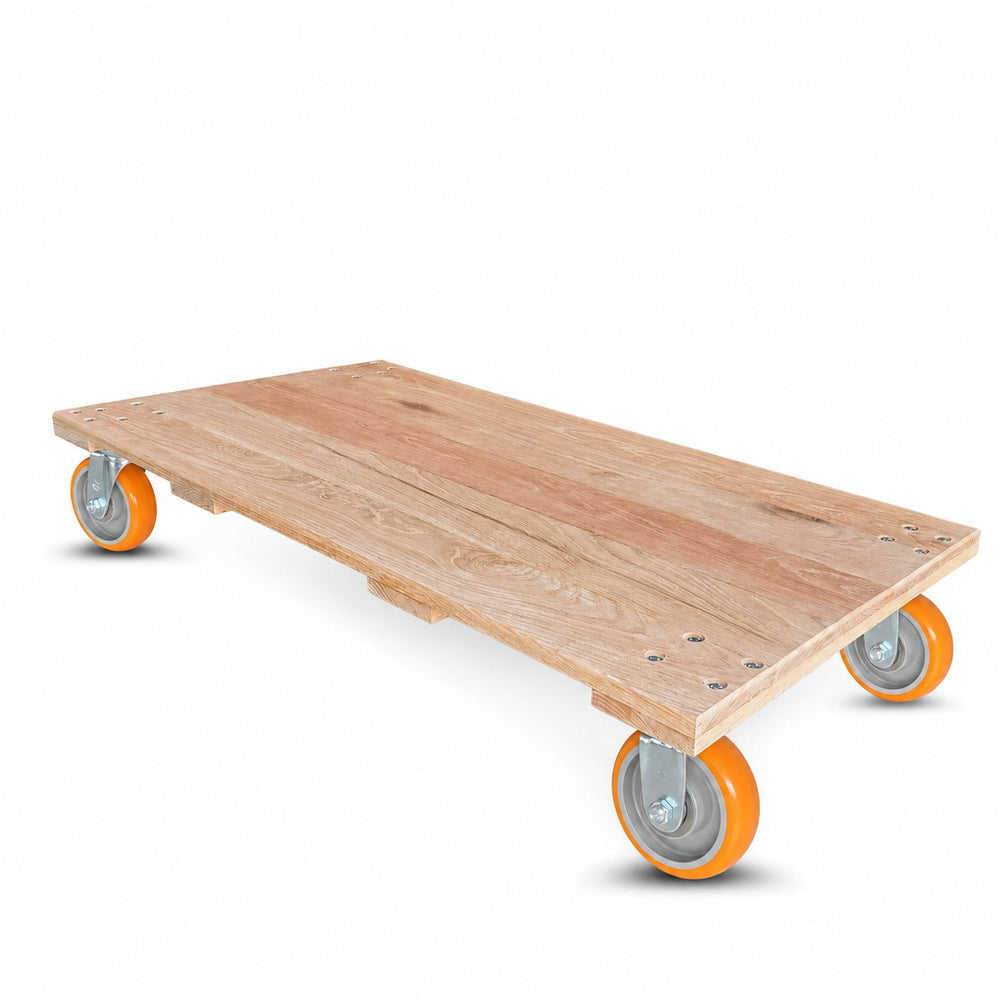

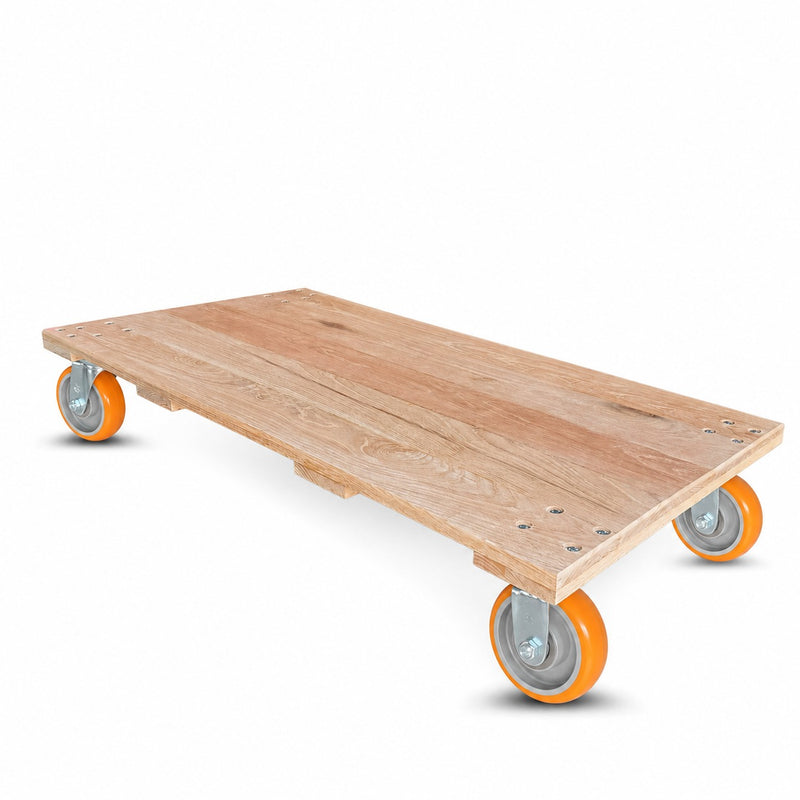

This is a built-to-order 6 ft x 3 ft solid oak deck cart on four 8" x 2" kingpinless swivel casters with orange ergonomic polyurethane-on-aluminum wheels, 85 Shore A. Each caster is rated 1,250 lb; we publish a 3,750 lb working (rolling) capacity because we derate to three casters, and a 5,000 lb static (parked) capacity. The 72" x 36" oak deck rides on four cross beams for load distribution, and all four casters swivel for full 360° positioning in tight cells and dock areas.
Request a Quote or Volume Pricing| Deck size | 72" L x 36" W (6 ft x 3 ft) |
|---|---|
| Deck material | Solid oak |
| Deck support | 4 cross beams under the deck |
| Working (rolling) capacity | 3,750 lb — derated to 3 of 4 casters |
| Static (parked) capacity | 5,000 lb |
| Caster quantity and type | 4 x swivel, kingpinless raceway |
| Caster rating | 1,250 lb per caster |
| Wheel size | 8" diameter x 2" wide |
| Wheel tread | Ergonomic polyurethane, orange |
| Wheel core | Aluminum |
| Durometer | 85 Shore A |
| Caster mount height | 9-1/2" nominal for this 8" x 2" kingpinless class |
| Brakes | None as configured — face brake, side lock, and total lock available on request |
| Configuration | All 4 swivel as built. 2 rigid / 2 swivel and other layouts available |
| Build type | Made to order, 1-2 weeks |
| Part number | SD-OAK7236-ERGO8K-3750LBS |
Overall deck height depends on the oak and cross-beam stack on your build. Confirm exact top-of-deck height with our team before you spec under-machine or under-rack clearance.
It moves heavy, long, or awkward loads across a shop or warehouse floor without a forklift. The 6 ft x 3 ft solid oak deck gives you a flat, forgiving surface that will not gouge machined faces or painted parts the way bare steel can, and the 8" polyurethane wheels roll over shop-floor joints, cords, and debris that stop a 4" or 5" wheel. Typical loads are motors, gearboxes, weldments, panels, tooling carts, and multi-piece kits staged for assembly.
3,750 lb rolling and 5,000 lb static. Each of the four casters carries a 1,250 lb rating, so the theoretical sum is 5,000 lb. We publish the working number at three casters (3 x 1,250 = 3,750 lb) because floor irregularities transfer load off one corner while the cart is moving. Distribute the load over the deck rather than concentrating it at one end, and keep the center of gravity low.
Not as built — all four casters are swivel with no brake, and brake options are available on request. The same 8" x 2" kingpinless caster class is offered with a face brake, a side lock, and total-lock rigs that stop both the wheel and the swivel. If the cart will park on a grade, at a workstation, or anywhere an operator loads it by hand, specify at least two braked casters. Tell us the application and we will spec it.
Yes. All four casters swivel as configured, and we build other layouts to order. The common alternatives are 2 rigid / 2 swivel for straight-line tracking down a long aisle, 2 swivel with brakes for parked stability, and total-lock on all four for a cart that doubles as a work surface. Deck size, beam count, and wheel compound can also change. Send us the application and our team will spec the rig.
This cart carries roughly 3.75x the load on a deck about 3.6x the area. An 18" x 40" solid-top oak dolly is a 1,000 lb appliance and furniture tool built to fit a 36" residential doorway on 5" wheels. This is an industrial platform cart: 8" wheels on kingpinless rigs, a 36" wide deck, and four cross beams. Choose the 18" x 40" for doorways and delivery work; choose this one for plant-floor loads that a furniture dolly cannot legally carry.
Kingpinless rigs remove the single most common failure point on heavy swivel casters. A conventional swivel caster is held together by a kingpin or king bolt, and shock loading a 3,000 lb cart over a dock plate is what eventually stretches and shears it. A kingpinless raceway spreads that load through a forged, sealed raceway instead. On a cart that will be pushed hard, loaded unevenly, and dropped across floor joints for years, it is the difference between a rebuild and a replacement.
3,750 lb while rolling. Each of the four casters is rated 1,250 lb and we derate to three casters, because floor joints and dock plates transfer load off one corner in motion. Parked and fully supported, the cart is rated 5,000 lb static.
Yes. As configured the cart has four 8" x 2" kingpinless swivel casters for full 360° positioning. Other configurations, including 2 rigid / 2 swivel and braked or total-lock rigs, are built to order. Contact our team with the application.
8" diameter x 2" wide ergonomic polyurethane on an aluminum core, 85 Shore A, in orange. The aluminum core keeps rolling resistance and deflection low under load, and the polyurethane tread is non-marking on finished concrete and epoxy floors.
No brakes as built. Face brake, side lock, and total lock are available in the same 8" x 2" kingpinless caster class. We recommend at least two braked casters if the cart is loaded by hand or parked anywhere off level.
1 to 2 weeks. This is a made-to-order cart, not shelf stock. Volume orders and custom deck sizes are quoted on the same lead time basis.
Yes. The 72" x 36" deck with four cross beams is our standard build for this cart, and deck length, width, and beam count are all changeable. Send dimensions and load and we will quote it.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 72"x36" Oak Deck Platform Cart 8" Kingpinless Swivel Casters – 3,750 lb is rated to 3,750 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,495.00
| Dimensions & Mounting | |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 3,750 lbs |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Solid Oak Deck / Zinc Plated Steel Rigs |
