Brand: Albion Casters
SKU: 28AX08228S01LTO
Size: 8" x 2"
Type: Ergonomic Swivel Caster
Material: MAX Efficiency Wheel
Features: Toe Guard, Swivel Lock, Maintenance-Free
Load Capacity: 1500 lb
Mount Height: 9.5 in
Fastening: 4" x 4.5" top plate
Origin: Made in USA

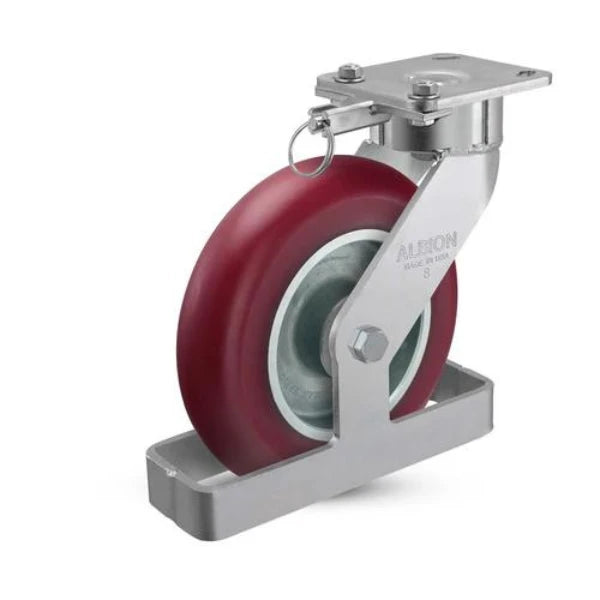

The Albion Casters 8" x 2" Maintenance-Free USA Ergonomic Swivel Caster with MAX Efficiency Wheel is engineered for top-tier performance and durability. This high-quality caster features a Toe Guard and Swivel Lock for enhanced safety and maneuverability, making it ideal for demanding environments. The 8" x 2" size and maintenance-free design ensure smooth operation under heavy loads, with a robust load capacity of 1500 lb. The advanced materials and ergonomic design contribute to its long-lasting performance, providing a reliable solution for industrial and commercial applications.
Our dedicated team is available Monday through Friday, 8 am - 5 pm to assist with any questions and ensure you find the ideal caster for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 8" x 2" Maintenance-Free USA Ergonomic Swivel Caster is engineered for excellence in heavy-duty applications. Featuring a MAX Efficiency Wheel with a precision ball bearing raceway, this caster delivers smooth, reliable performance with minimal maintenance. Designed to meet the demands of industrial and commercial environments, it combines durability, safety, and ease of use.
For assistance or inquiries, our dedicated customer support team is available Monday through Friday, 8 am - 5 pm. We are here to help you with product information, order support, and technical assistance.
This Albion 28AX08228S01LTO 8" x 2" Ergonomic Swivel Caster – 1500 lb is rated to 1500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$238.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1500 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
