HAMILTON

Hamilton 4200 lbs Rigid Caster | 5" Double Flange Track Wheel

Pronto Ship. All sales final.

Pronto Ship: Ships in 24-48 hours from Hamilton. Please confirm all specs before checkout, since Hamilton items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
5" x 3"
Capacity
4200 lbs
Overall Height
8"
Plate Size
5-1/2" x 7-1/2"
BHP
4-1/8" x 6-1/8"
Bolt
1/2"
Pronto Ship · Ships in 24-48 hours
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Download CAD
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview
Hamilton Extra Heavy Duty Rigid Caster | R-EHD-FT53FH

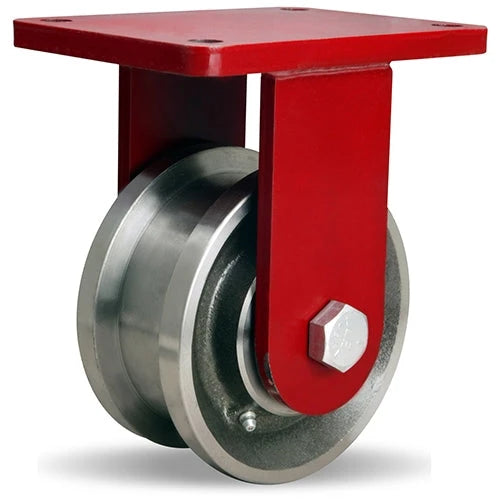

Hamilton 4200 lbs Extra Heavy Duty Rigid Caster - Model R-EHD-FT53FH

Product Specifications:

  • Load Capacity: 4200 lbs
  • Wheel Type: Double Flange Track
  • Wheel Dimensions: 5" x 1 11/16"
  • Bearing: 1" Straight Roller Bearing
  • Model: R-EHD-FT53FH

Elevate the durability and functionality of your equipment with Hamilton's Extra Heavy Duty Rigid Caster. Designed to support a massive load capacity of up to 4200 lbs, this caster is engineered for superior performance. The 5 x 1 11/16-inch double flange track wheel is fitted with a robust 1-inch straight roller bearing, ensuring smooth movement and longevity. Invest in reliability and efficiency with the R-EHD-FT53FH model.

Key Features

Top 10 Features of Hamilton's R-EHD-FT53FH Extra Heavy Duty Rigid Caster

  1. Remarkable load capacity of 4200 lbs – built for heavy-duty applications.
  2. Designed by industry-leading brand – Hamilton.
  3. Features a 5 x 1 11/16-inch double flange track wheel – for superior ground contact and stability.
  4. Integrated with a 1-inch straight roller bearing – ensuring smooth movement.
  5. Model R-EHD-FT53FH – representing the pinnacle of caster technology.
  6. Constructed with durable materials – for prolonged life and consistent performance.
  7. Offers efficient weight distribution – reducing wear and tear on your floors.
  8. Designed for easy installation – compatible with a variety of equipment.
  9. Rigid caster design – ensuring straight movement and robust handling.
  10. Optimal for industrial, commercial, and warehouse applications – offering flexibility and reliability.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Hamilton Rigid Caster: Advanced Specifications & Features

Core Features

Designed for top-tier performance, the Hamilton Rigid Caster integrates the best of engineering and durability. Boasting a straight roller bearing type, this caster promises smooth and efficient movement. Its impressive load capacity of 4200 lbs at 3 mph makes it a formidable choice for demanding applications.

Construction & Design

The caster's robust weldment rig type ensures long-lasting sturdiness. Coated with a vibrant crimson powder finish and complemented by a wheel sporting a clear coat finish, it's not just functional but aesthetically pleasing too. The rigid design denotes its steadfast movement capabilities.

Wheel & Hub Specifications

Featuring a double flanged track wheel type with a diameter of 5 inches, this caster offers optimal surface contact. The wheel's core is constructed from resilient steel, ensuring durability and longevity. Hub dimensions include a diameter of 3 3/8 inches (both M and N), a hub length of 3 1/4 inches, and a metal tread wheel material for maximum traction.

Mounting & Installation

Equipped with a mounting bolt of .5 inches and a mounting plate measuring 5 1/2 x 7 1/2 inches, installation is streamlined and versatile. The mounting plate's precise dimensions, 7.5 inches in length and 5.5 inches in width, ensure a snug fit for varied applications.

Additional Information

This caster's shipping weight stands at 33 lbs. It also offers ease of maintenance with a designated replacement wheel model, WFT-53FH-1. Various dimensions such as diameter P at 6 inches, dimension R at 1/8 inch, wheel face K at 3 inches, and face S at 1 11/16 inches further underscore its meticulous design.

Invest in quality, durability, and design with Hamilton's top-of-the-line rigid caster.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton R-EHD-FT53FH 5" x 1 11/16" Double Flange Rigid Caster – 4200 lb is rated to 4200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Steel wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 5-1/2" x 7-1/2" plate and a 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for -30°F to 320°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Steel wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 8". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Hamilton R-EHD-FT53FH 5
Hamilton R-EHD-FT53FH 5" x 1 11/16" Double Flange Rigid Caster – 4200 lb | CasterHQ

$514.00

Technical Specifications

Specifications

Identification
Part Number / SKUR-EHD-FT53FH
Core
Load Capacity4200 lbs
Wheel Diameter5"
Wheel Width3"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).8"
Rig TypeRigid
BrakeNo Brake
Mounting
Mount StylePlate
Plate Size5-1/2" x 7-1/2"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.4-1/8" x 6-1/8"
Recommended Mounting Bolt1/2"
Wheel
Wheel MaterialSteel
Wheel Core MaterialSteel
Wheel ColorClearcoat
Hub Width3-1/4"
Bearing TypeStraight Roller
Construction
Frame / FinishCrimson Powder
Temperature Range-30°F to 320°F
Unit Weight33 lbs
Compliance
Buy AmericanYes
Reference Dimensions
8" OVERALL HEIGHT 5" x 3" WHEEL DIA x W 5-1/2" x 7-1/2" PLATE
Overall Height8"
Wheel5" x 3"
Top Plate5-1/2" x 7-1/2"
Bolt Pattern4-1/8" x 6-1/8"
Wheel MaterialSteel
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 4200 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size5-1/2" x 7-1/2"
Bolt Pattern4-1/8" x 6-1/8"
Rig TypeRigid
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more plate casters →
