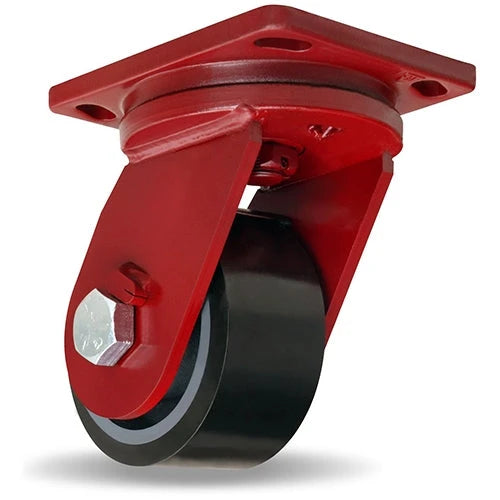

This Hamilton S-EPSD-63DB70 6" x 3" Duralast XC Swivel Caster – 2860 lb is rated to 2860 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 6-1/2" x 7-1/2" plate and a 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 8-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$562.00
| Identification | |
|---|---|
| Part Number / SKU | S-EPSD-63DB70 |
| Replacement Wheel Part No | W-630-DB70-1 |
| Core | |
| Load Capacity | 2860 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 8-1/2" |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-11/16" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 6-1/2" x 7-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Color | Black Poly on Gray Center |
| Bearing Type | Precision Sealed Ball Bearing |
| Axle Diameter | 1" |
| Construction | |
| Unit Weight | 37 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2500 lbsLighter duty | 6" × 3"Nylon | Swivel | 7-1/2" | $95.00 | View → | |
| 2500 lbsLighter duty | 6" × 3"Cast Iron | Rigid | 8" | $338.00 | View → | |
| 2860 lbs | 6" × 3"Polyurethane | — | 8-1/2" | $562.00 | Viewing | |
| 3000 lbsHeavier duty | 6" × 3"Polyurethane | Swivel | 8" | $375.00 | View → | |
| 3000 lbsHeavier duty | 6" × 3"Polyurethane | Swivel | 8" | $438.00 | View → |
