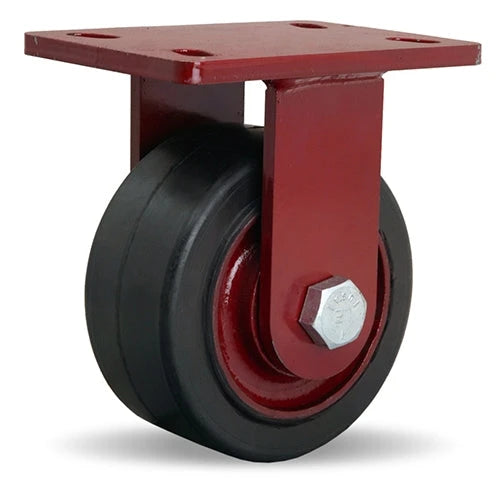

Hamilton ForgeMaster 6" Rigid Caster | R-FM-63RH Heavy Duty

This Hamilton R-FM-63RH 6" x 3" Mold-On Rubber Rigid Caster – 680 lb is rated to 680 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

This caster runs a Rubber wheel with a 3" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

This caster uses a top-plate mount with a 5" x 7" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

The Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.

The overall height (floor to top of plate or stem) is 7-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
