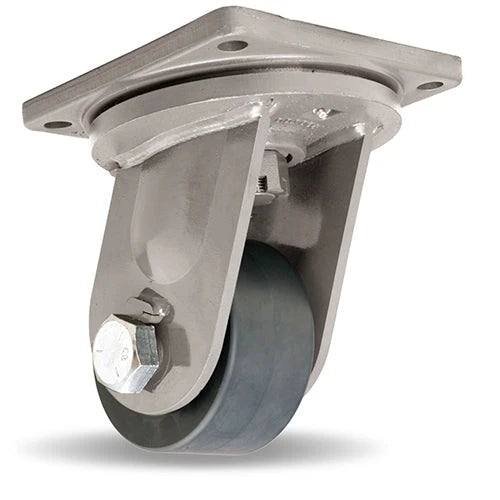

This Hamilton S-MD-63NYB 6" x 3" Nylast Swivel Caster – 5400 lb is rated to 5400 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 3" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.
This caster uses a top-plate mount with a 8-1/2" x 8-1/2" plate and a 7" x 7" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 10". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,062.00
| Identification | |
|---|---|
| Part Number / SKU | S-MD-63NYB |
| Replacement Wheel Part No | W-630-NYB-1-1/4 |
| Core | |
| Load Capacity | 5400 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 10" |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-5/8" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 8-1/2" x 8-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 7" x 7" |
| Recommended Mounting Bolt | 5/8" |
| Wheel | |
| Wheel Material | Nylon |
| Wheel Color | Charcoal Gray |
| Bearing Type | Precision Sealed Ball Bearing |
| Axle Diameter | 1-1/4" |
| Construction | |
| Unit Weight | 48 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 4800 lbsLighter duty | 6" × 3"Ductile Iron | Swivel | 7-1/2" | $200.00 | View → | |
| 5000 lbsLighter duty | 6" × 3"Steel | Swivel | 8-1/2" | $602.00 | View → | |
| 5400 lbs | 6" × 3"Nylon | — | 10" | $1,062.00 | Viewing | |
| 6000 lbsHeavier duty | 6" × 3"Ductile Iron | Rigid | 7-1/2" | $158.00 | View → | |
| 10000 lbsHeavier duty | 6" × 3" | Swivel | 7-1/2" | $1,022.00 | View → |
