HAMILTON

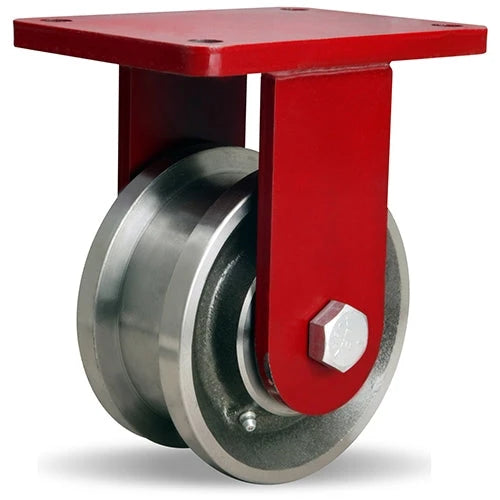

Hamilton R-EHD-FT53FT 5-inch Rigid Track Caster - 4200 lbs

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
5" x 3"
Capacity
4200 lbs
Overall Height
8"
Plate Size
5-1/2" x 7-1/2"
BHP
4-1/8" x 6-1/8"
Bolt
1/2"
Made to Order · 4-6 Weeks Lead
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Download CAD
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview
Extended Information on R-EHD-FT53FT Hamilton Extra Heavy-Duty Rigid Caster

R-EHD-FT53FT Hamilton Extra Heavy-Duty Rigid Caster: The Pinnacle of Strength and Durability

Product Overview

The R-EHD-FT53FT Hamilton Extra Heavy-Duty Rigid Caster sets new standards in strength and durability. It comes equipped with a 5x1 11/16-inch Double Flange Track Wheel and a 3/4-inch Precision Tapered Roller Bearing, ideal for the most demanding industrial tasks.

Key Features

  1. 5x1 11/16-inch Double Flange Track Wheel for unparalleled strength.
  2. 3/4-inch Precision Tapered Roller Bearing ensures a smooth ride.
  3. Extra Heavy-Duty Design capable of handling the most strenuous tasks.
  4. Low Maintenance Requirements saves time and resources.
  5. Rigid Caster Structure offers high stability and control.

Additional Benefits

  • Corrosion-Resistant: Increases longevity.
  • Quick Installation: Simplifies the setup process.
  • Industry Standard Compliance: Meets all quality and safety benchmarks.

Recommended Use Cases

This caster is extremely versatile and is the perfect choice for various heavy-duty industrial requirements, such as:

  • Material Handling Facilities
  • High-Capacity Freight Systems
  • Industrial Manufacturing Units
  • Aerospace and Defense

Why Choose R-EHD-FT53FT?

If your operation demands a caster that is both robust and reliable, the R-EHD-FT53FT Hamilton Extra Heavy-Duty Rigid Caster is your top pick. Its combination of features and benefits make it an industry leader.

Key Features
Hamilton R-EHD-FT53FT Extra Heavy-Duty Rigid Caster Features

Top 10 Features of Hamilton R-EHD-FT53FT Extra Heavy-Duty Rigid Caster

  1. Extra Heavy-Duty Design: Crafted for the most demanding applications.
  2. 5-inch Double Flange Track Wheel: For increased stability and strength.
  3. 4200 lbs Load Capacity: High weight-bearing capabilities for industrial use.
  4. Precision Tapered Roller Bearing: Ensures smooth wheel rotation.
  5. Steel Core: Provides unmatched wheel durability.
  6. Crimson Powder Finish: For enhanced corrosion resistance.
  7. Mounting Plate Dimensions: 5 1/2 x 7 1/2 inches, offering secure installation.
  8. Overall Height of 8 inches: Perfect for a variety of applications.
  9. Shipping Weight of 33 lbs: Indicative of a sturdy and robust build.
  10. Replacement Wheel Availability: WFT-53FT-1, ensuring long-term use.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information
Hamilton R-EHD-FT53FT Extra Heavy-Duty Rigid Caster Detailed Information

Hamilton R-EHD-FT53FT Extra Heavy-Duty Rigid Caster: The Ultimate Solution for Heavy-Duty Applications

Overview

The Hamilton R-EHD-FT53FT Extra Heavy-Duty Rigid Caster is specifically engineered for challenging, heavy-duty industrial settings. With a massive 4200 lbs load capacity and a 5-inch double flange track wheel, this rigid caster is your go-to option for robust and reliable performance.

Key Features

  • Wheel Diameter: 5-inch, ideal for stable movement.
  • Load Capacity: Can support an impressive 4200 lbs at 3 mph.
  • Bearing Type: Equipped with precision tapered roller bearings for smoother operation.
  • Wheel Core Material: Fabricated with a durable steel core.
  • Caster Rig Type: Weldment construction for superior strength.

Additional Specifications

  • Mounting Bolt Size: .5 inches for secure fixing.
  • Overall Height: 8 inches, making it adaptable for various applications.
  • Shipping Weight: Weighs 33 lbs, indicative of its heavy-duty construction.
  • Caster and Wheel Finish: Comes with a crimson powder finish and a clearcoat on the wheel for added durability.

Mounting and Replacement Information

  • Mounting Plate Dimensions: 5 1/2 x 7 1/2 inches.
  • Replacement Wheel Model: WFT-53FT-1 for hassle-free long-term usage.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton R-EHD-FT53FT 5" x 1-11/16" Double Flange Rigid Caster – 4200 lb is rated to 4200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Steel wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 5-1/2" x 7-1/2" plate and a 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What floors and applications is it best for?+

The Steel wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 8". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Hamilton R-EHD-FT53FT 5
Hamilton R-EHD-FT53FT 5" x 1-11/16" Double Flange Rigid Caster – 4200 lb | CasterHQ

$590.00

Technical Specifications

Specifications

Identification
Part Number / SKUR-EHD-FT53FT
Core
Load Capacity4200 lbs
Wheel Diameter5"
Wheel Width3"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).8"
Rig TypeRigid
BrakeNo Brake
Mounting
Mount StylePlate
Plate Size5-1/2" x 7-1/2"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.4-1/8" x 6-1/8"
Recommended Mounting Bolt1/2"
Wheel
Wheel MaterialSteel
Wheel Core MaterialSteel
Wheel ColorClearcoat
Hub Width3-1/4"
Bearing TypeTapered Roller Bearing
Construction
Frame / FinishCrimson Powder
Unit Weight33 lbs
Compliance
Buy AmericanYes
Reference Dimensions
8" OVERALL HEIGHT 5" x 3" WHEEL DIA x W 5-1/2" x 7-1/2" PLATE
Overall Height8"
Wheel5" x 3"
Top Plate5-1/2" x 7-1/2"
Bolt Pattern4-1/8" x 6-1/8"
Wheel MaterialSteel
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 4200 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size5-1/2" x 7-1/2"
Bolt Pattern4-1/8" x 6-1/8"
Rig TypeRigid
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more plate casters →
