Hamilton R-HL-5HNY 5" High Heat Rigid Caster (475°F)

Pronto Ship. All sales final.

Pronto Ship: Ships in 24-48 hours from Hamilton. Please confirm all specs before checkout, since Hamilton items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
5" x 1-3/8"
Capacity
320 lbs
Overall Height
6-3/8"
Plate Size
3-1/8" x 4-1/8"
BHP
1-3/4" x 3" and 2-3/8" x 3-3/8"
Bolt
5/16"
Pronto Ship · Ships in 24-48 hours
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Download CAD
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview

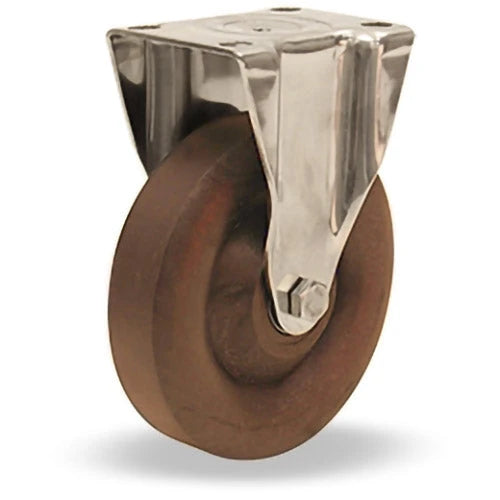

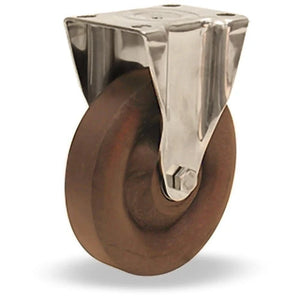

R-HL-5HNY Hamilton High Heat Hi-Lo Rigid Caster with Scorcher Wheel

Rated up to 475° F - Ideal for High Heat Environments | 5" x 1 3/8" Scorcher Wheel for Smooth Performance

Sustain High Temperatures with Ease

Explore the resilience of the R-HL-5HNY Hamilton High Heat Hi-Lo Rigid Caster, specifically designed to withstand temperatures up to 475° F. This makes it an indispensable component in high heat applications, ensuring your operations remain uninterrupted in extreme conditions.

Precision and Durability Combined

The 5" x 1 3/8" Scorcher Wheel equipped on this Rigid caster delivers smooth maneuverability and steadfast performance. Complemented by a 1/2" roller bearing with high heat grease, the caster's movement is seamless, enhancing productivity in your high-temperature processes.

Your High Heat Application Ally

Whether you're managing a bakery, an autoclave facility, or a heat treatment plant, the R-HL-5HNY is your go-to caster for high-heat applications. Trust in Hamilton's commitment to quality and performance for all your Rigid caster needs.

Professional Support for Top-tier Performance

Selecting the right caster for your high-heat environment can be challenging. Our team of Hamilton Caster Experts is available from 8 am to 5 pm, Monday through Friday, to assist you in making an informed decision and to ensure your operations run smoothly.

Key Features

Top 10 Features of Hamilton R-HL-5HNY Rigid Caster

  • High Heat Tolerance: Efficiently rated for temperatures up to 475°F.
  • 5" Scorcher Wheel: Designed for optimal performance in high-temperature environments.
  • 1/2" Roller Bearing with High Heat Grease: Ensures durability and smooth operation under extreme conditions.
  • Rigid Caster Design: Allows for easy maneuvering and directional movement.
  • Heavy-Duty Construction: Built to withstand rigorous industrial use.
  • Hi-Lo Temperature Range: Reliable performance in varying temperature gradients.
  • Low Maintenance: Engineered for ease of use with minimal upkeep required.
  • Versatile Applications: Ideal for bakeries, autoclaves, and heat treatment plants.
  • Hamilton Quality Assurance: Backed by the reputation of a leader in caster solutions.
  • Professional Support: Access to Hamilton caster experts for guidance and support.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Extended Information on Hamilton R-HL-5HNY Rigid Caster

Unmatched Heat Resistance

The Hamilton R-HL-5HNY Rigid Caster is designed to operate effortlessly in environments where temperatures soar up to 475°F. The specialized Scorcher Wheel is crafted to maintain integrity and performance in high heat conditions, making it an ideal choice for industries where heat resistance is a must.

Superior Wheel and Bearing Design

Featuring a 5" x 1 3/8" Scorcher Wheel and 1/2" roller bearings packed with high heat grease, this caster promises a smooth gliding experience. The high-grade materials ensure that the caster can handle heavy loads while providing reliable mobility.

Durability Meets Low Maintenance

Durability is at the forefront of the Hamilton R-HL-5HNY design. Not only is this caster built to last, but it also requires minimal maintenance. It stands up to the test of time and continuous use, saving you time and resources in upkeep.

Versatility Across Applications

Whether it's for a bakery, autoclave, or a heat treatment facility, the Hamilton R-HL-5HNY adapts to various high-heat applications. This versatility ensures that the caster can be a go-to option for a wide range of industries.

Expert Support When You Need It

Hamilton's commitment to excellence doesn't end with their products. Professional support is available to assist with any questions or customization needs, ensuring that you get the most out of your heavy-duty caster.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton R-HL-5HNY 5" x 1 3/8" Scorcher Rigid Caster – 475°F is rated to 320 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Nylon wheel with a 1-3/8" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

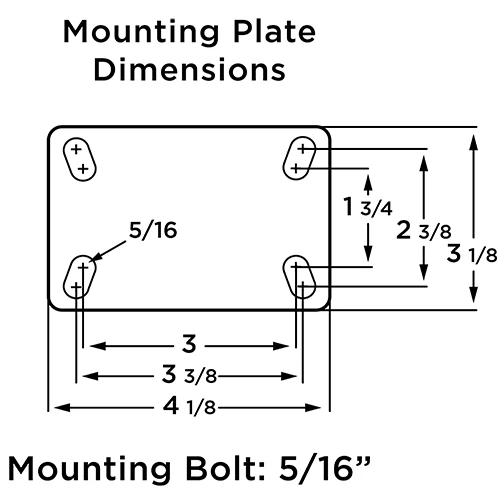

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 3-1/8" x 4-1/8" plate and a 1-3/4" x 3" and 2-3/8" x 3-3/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for Up to 475°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 6-3/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Technical FAQs & Engineering Notes

Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.

How do I properly factor the 25% safety margin into a multi-caster cart configuration?

Treat published load capacity as a continuous working limit, not a one-time peak. Divide total loaded cart weight (product + rack + fixtures) by the number of casters that share the load, then size so that working load per caster stays at or below about 75% of the rated capacity (a common ~25% margin). On four-wheel oven racks, uneven floors and thermal growth can shift load to two or three casters; if your process routinely parks on imperfect floors, engineer for three-caster support rather than perfect four-way share. Confirm ratings at your process temperature — heat softens many wheel compounds and can lower usable capacity versus room-temperature catalog numbers.

When must an application bypass standard polyurethane and spec high-temperature glass-filled nylon or phenolic wheels?

Bypass standard polyurethane when continuous or cyclic wheel temperatures exceed the urethane compound’s published service range (often well below typical bake / washdown-after-heat zones). Spec glass-filled nylon or phenolic (or other high-temp tread systems on the PDP) when racks enter ovens, proofers, or wash tunnels where tread softening, bond failure, or flat spots would appear with PU. Match the wheel to the hottest surface the tread sees, including residual heat after exit, and verify chemical exposure (cleaners, fats, steam) against the material notes on this product. When in doubt, ask for the temperature and duty cycle — we will confirm whether this SKU or a high-temp alternate is the right call.

Why do traditional kingpin swivel raceways fail prematurely under towing or AGV side-thrust loads compared to kingpinless alternatives?

A traditional kingpin clamps the swivel assembly through a single axial fastener. Repeated side thrust from towing, tugger lines, or AGV path corrections loads that pin and the raceway faces in ways ordinary cart steering does not. Over time that shows up as elongated kingpin holes, brinelled races, or loose swivels. Kingpinless (or forged integrated) raceways distribute thrust through a continuous race path instead of relying on that central pin — better suited when side loads are planned into the duty cycle. Oven-rack and high-temp lines still need the correct wheel material first; upgrade the swivel construction when towing or powered side loads are part of the application, not only when heat is.

Hamilton R-HL-5HNY 5
Hamilton R-HL-5HNY 5" x 1 3/8" Scorcher Rigid Caster – 475°F | CasterHQ

$82.00

Technical Specifications

Specifications

Identification
Part Number / SKUR-HL-5HNY
Replacement Wheel Part NoW-513-HNY-1/2
Core
Load Capacity320 lbs
Wheel Diameter5"
Wheel Width1-3/8"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).6-3/8"
Rig TypeRigid
BrakeNo Brake
Mounting
Mount StylePlate
Plate Size3-1/8" x 4-1/8"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.1-3/4" x 3" and 2-3/8" x 3-3/8"
Recommended Mounting Bolt5/16"
Wheel
Wheel MaterialNylon
Wheel Core MaterialNylon
Wheel ColorCharcoal Gray
Bearing TypeStraight Roller Bearing
Construction
Frame / FinishSteel, Bright Zinc Plated
Temperature RangeUp to 475°F
Unit Weight2.75 lbs
Compliance
Buy AmericanYes
Reference Dimensions
6-3/8" OVERALL HEIGHT 5" x 1-3/8" WHEEL DIA x W 3-1/8" x 4-1/8" PLATE
Overall Height6-3/8"
Wheel5" x 1-3/8"
Top Plate3-1/8" x 4-1/8"
Bolt Pattern1-3/4" x 3" and 2-3/8" x 3-3/8"
Wheel MaterialNylon
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 320 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size3-1/8" x 4-1/8"
Bolt Pattern1-3/4" x 3" and 2-3/8" x 3-3/8"
Rig TypeRigid
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more 3-1/8" x 4-1/8" plate casters →
