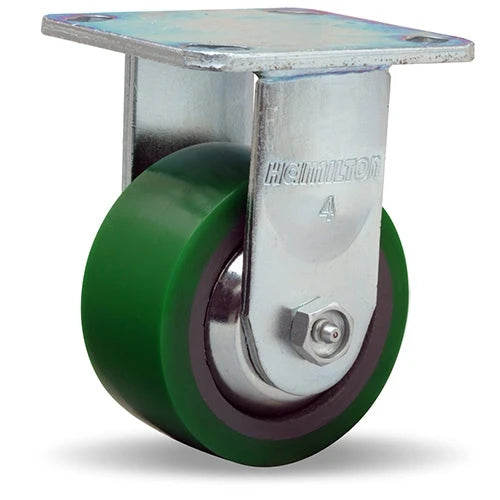

Hamilton Thread Guards TG Casters w/ Duralast Polyurethane Wheels · Up to 1,250 lb · 4"–8"

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 8 inTread: 2 inCapacity: 1,200 to 1,250 lb per casterPlate sizes: 4 x 4-1/2
You get four polyurethane casters here from Hamilton with 6 to 8 in wheels, rated 1,200 to 1,250 lb each. Every one uses a 4 x 4-1/2 in top plate, with swivel and rigid versions, with no brake options. Picks range from a Hamilton R-TG-6DB 6 x 2 in Duralast rigid thread guard caster rated 1,200 lb to a Hamilton S-TG-8DB 8 x 2 in Duralast polyurethane swivel caster rated 1,250 lb.

Shop by type

2 types

Wheel = wheel diameter · capacity is per caster.

Duralast Wheels Series D - High Capacity Range

Capacity Range: 1,000 – 9,000 lbs | High Durability and Performance

Exceptional Quality and Reliability

Duralast Wheels in the Series D are crafted for superior performance, offering a load capacity range of 1,000 to 9,000 lbs. The wheels feature a unique liquid cast polyurethane layer, approximately 1/2" thick, chemically bonded to heavy-duty iron centers.

Known for their distinctive green treads, Duralast Wheels are not only chemically inert, non-sparking, and non-conductive but also gentle on floors without leaving marks. They are a robust solution for various industrial applications, guaranteeing against tread separation for one year under normal free-wheeling conditions.

Versatile Bearing Options

Available with multiple bearing options, including straight roller bearings, precision ball bearings, and precision tapered bearings. Wheels over 5" in diameter with straight and tapered roller bearings come with ball-check lubrication fittings in the hub for added convenience.

Physical Properties of Duralast Wheels

These wheels boast outstanding physical properties: a hardness of 90-95 Durometer (Shore A), a high tensile strength of 7000-7400 psi, and excellent abrasion resistance. Suitable for a wide temperature range, they remain unaffected by occasional steam cleaning, showcasing resilience in diverse environments.
