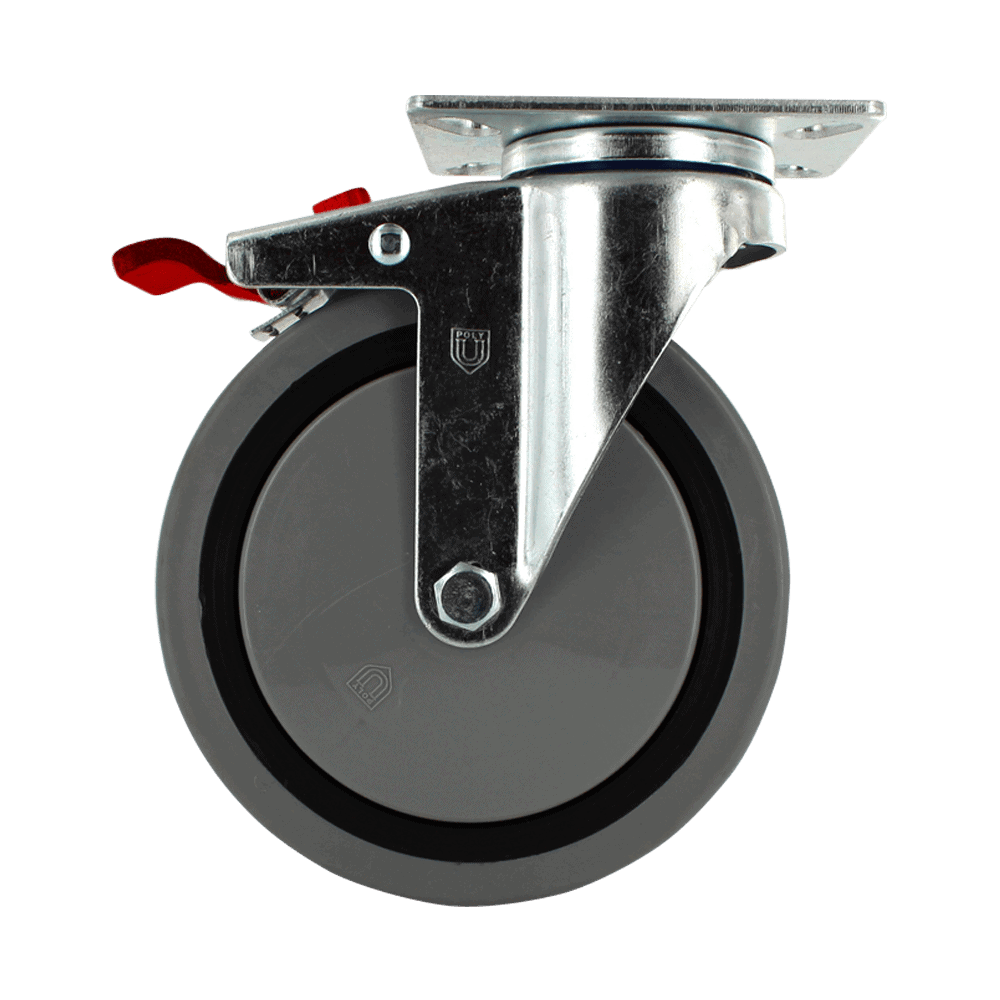

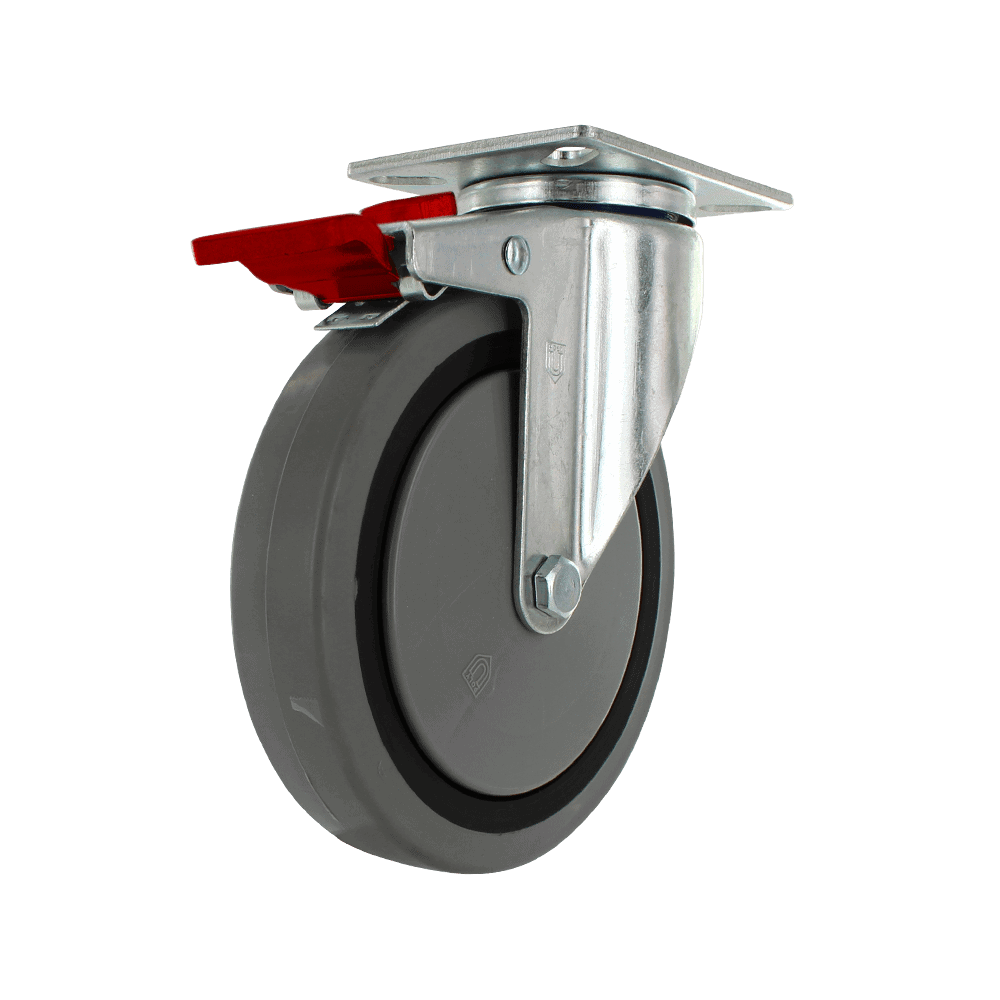

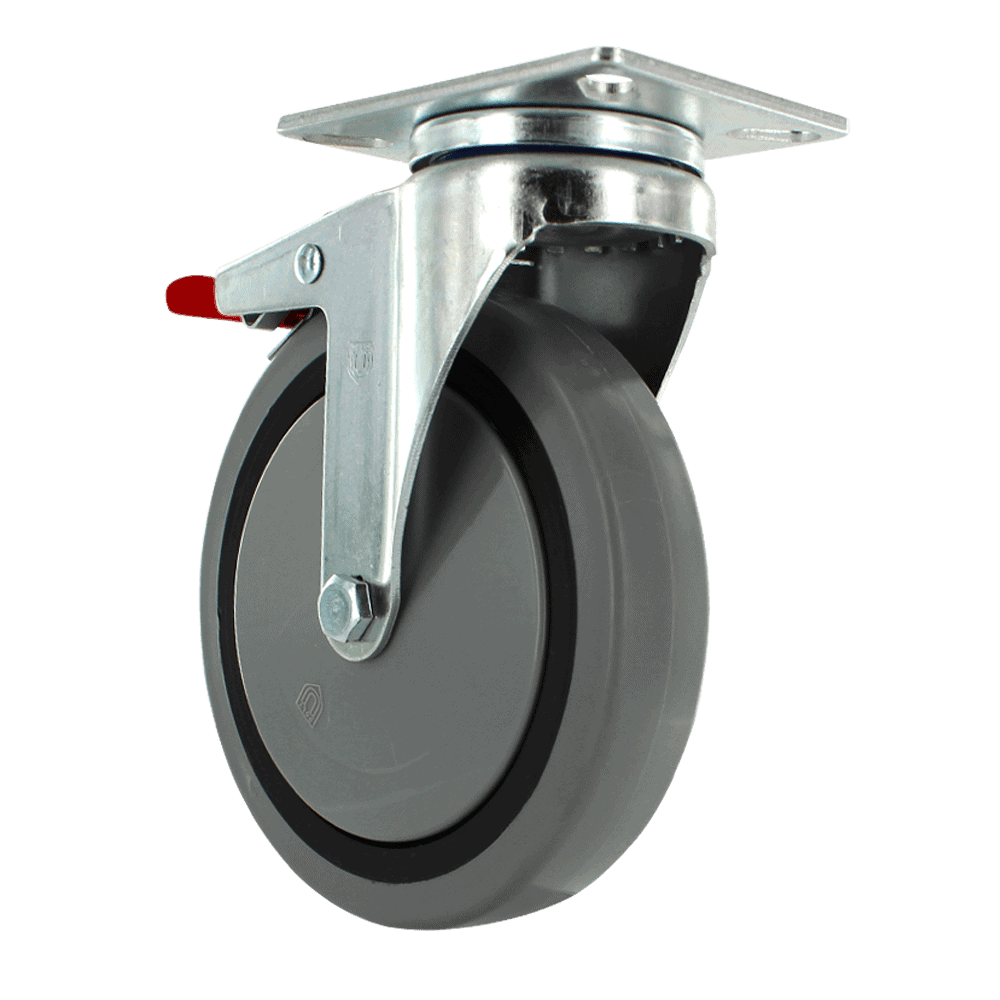

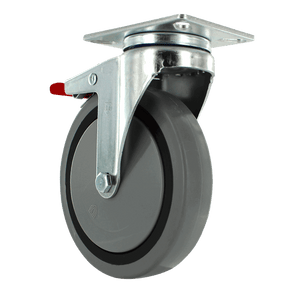

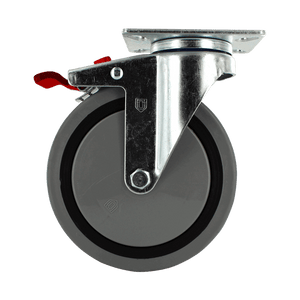

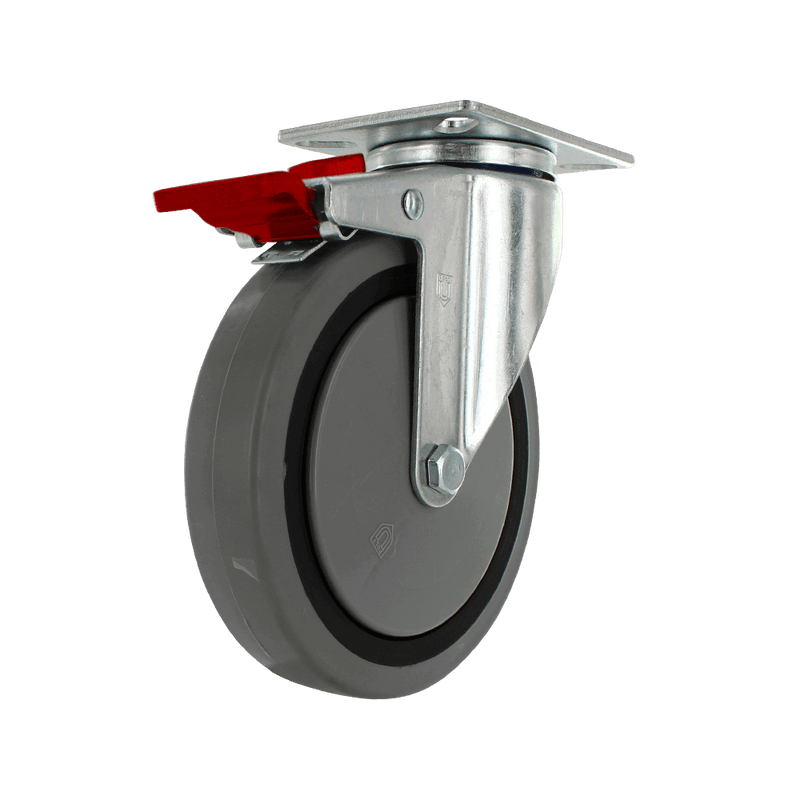

Industrial Swivel Caster with Zinc Plated Steel with Lacquer Dip Yoke, 3 1/8" X 4 1/8" Plate Mount, 6" X 1 1/4" TPR A70 Crown Tread Gray on Black Wheel, 3/8" Dual Precision Bearings with 3/8" Axle and Nylon Lock Nut. With Total Lock Brake.
Cart · Distribution/Logistics · Food/Beverage · Healthcare · Hospitality · Industrial
| Product Series | 20 |
| Series Types | 26-Industrial Medium Duty |
| Caster Type | Swivel |
| Brake | Total Lock Brake |
| Wheel Part No | WN2644EK |
| Wheel Diameter | 6" / 152.4mm |
| Wheel Tread Width | 1.25" / 31.75mm |
| Hub Width | 1.6" / 40.64mm |
| Wheel Profile | Crown |
| Wheel Durometer | Shore A70 |
| Wheel Material | TPR |
| Bearing Type | Dual Precision |
| Bearing Material | Steel |
| Bearing Size | 0.38" / 9.52mm |
| Axle Size | 0.38" / 9.52mm |
| Load Capacity | 325lbs / 147kg |
| Overall Height | 7.25" / 184.15mm |
| Swivel Radius | 4.5" / 114.3mm |
| Attachment Method | Top Plate |
| Imperial Plate Size | 2.38" x 3.63" / 60.33mm x 92.07mm |
| Plate Hole Centers | 2.94" x 1.75" / 74.61mm x 44.45mm |
| Operating Temp | -30°F TO 140°F / -34°C to 60°C |
| Warranty Duration | 1 year |
| Caster Finish | Zinc Plated Steel with Lacquer Dip |
| Wheel Color | Gray/Black |
| Threadguard | YES |
| Total Lock Brake | 1 |
Manufactured by P&H Casters in Arlington, TX. CasterHQ is P&H's largest US master dealer, eight miles from the factory. For pricing, lead time, and bulk pricing, request a quote or call 844-439-4335.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This caster runs a Soft TPR wheel with a 1-1/4" tread width. This wheel material balances load capacity, rolling ease, and floor protection for the intended application.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -30°F to 140°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Soft TPR wheel performs best on smooth concrete and finished warehouse floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$38.00
| Identification | |
|---|---|
| Part Number / SKU | Z26P264NEKHL |
| Core | |
| Wheel Width | 1-1/4" |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 4-1/2" |
| Mounting | |
| Mount Style | Plate |
| Wheel | |
| Wheel Material | Soft TPR |
| Wheel Core Material | Polypropylene |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Shore A70 |
| Bearing Type | Dual Precision Ball Bearings |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -30°F to 140°F |
| Compliance | |
| Manufacturer certification | Manufactured by P&H Casters (ISO 9001:2015 certified) |
