The Kinexus is PH Casters' workhorse medical and equipment caster, designed for general hospital furniture, treatment carts, supply trolleys, and rehabilitation equipment that demands durability, easy maintenance, and a clean clinical appearance.

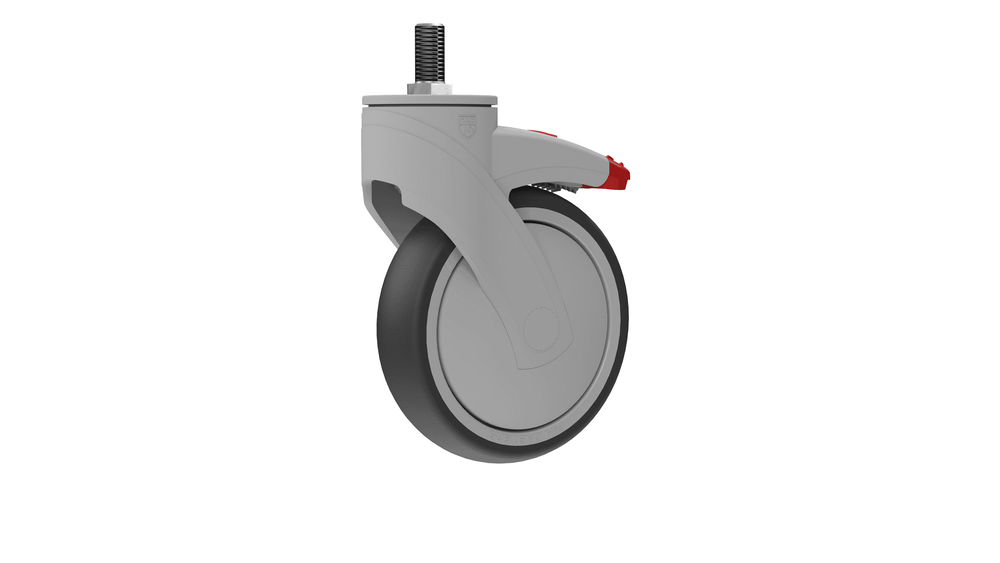

Light/Medium Duty Swivel With Precision Bearing Caster With Plastic Yoke, 1/2" X 13 X 1" Open Hole With Bolt Mount, 125mm X 32mm TPR A76-85 Crown Tread On Polypropylene Gray On Gray Wheel, Single Precision Bearings And 8mm Axle And Nylon Nut
Key Specifications:
Typical Applications: hospital beds, patient lifts, treatment carts, IV stands, surgical and procedure carts, rehabilitation equipment, institutional kitchen carts, shower chairs, and assistive devices.
For volume orders, OEM specifications, or non-standard configurations, contact CasterHQ engineering. Lead time on standard SKUs is 3-5 business days from purchase order.
Order processing
Made to order. Built to specification after your PO. Typical lead time: In Stock · Ships in 2-3 Days.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This PH Casters Kinexus P25ASDB6G3X — 125mm Swivel is rated to 220 lb per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Hard TPR wheel with a 1.26" / 32mm tread width. This wheel material balances load capacity, rolling ease, and floor protection for the intended application.
This caster uses a LTS-1/2-13x1 mount. Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.
The Hard TPR wheel performs best on smooth concrete and finished warehouse floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$20.00
| Identification | |
| Brand | PH Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4.92" (125 mm) |
| Wheel Tread Width | 1.26" / 32mm |
| Mount Style | LTS-1/2-13x1 |
| Load & Performance | |
| Weight Capacity Per Caster (lbs) | 220 |
| Brake Type | SW |
| Materials & Finish | |
| Wheel Material | Hard TPR |
