The Tandem Standard Height is PH Casters' premium twin-wheel medical caster for hospital beds, patient lifts, treatment chairs, and high-load hospital trolleys. The twin-wheel design distributes load across two precision-bearing wheels for smoother rolling under repeated dynamic load.

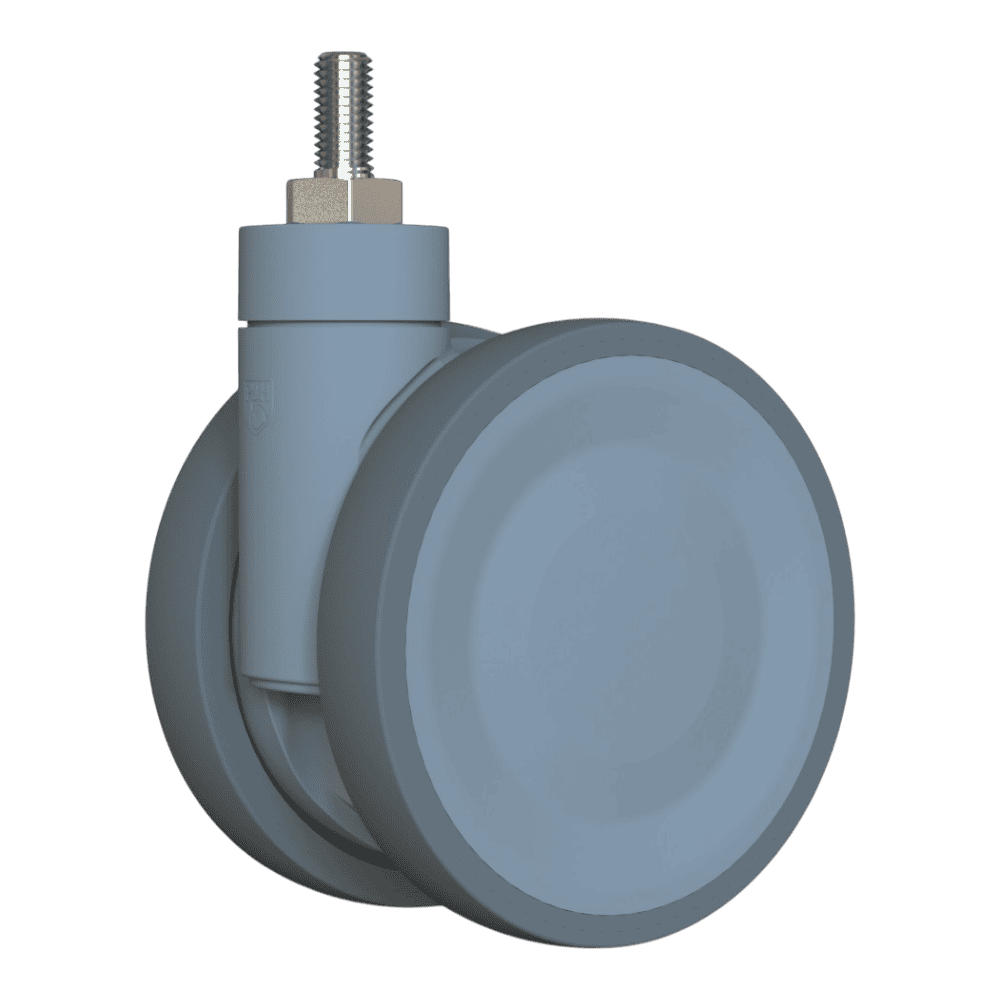

Precision Swivel Twin Wheel Standard Height Caster With Plastic Yoke, M12 X 25mm Threaded Stem -w/ Hex at Base+locktite Patch in middle of thread Mount, 125mm TPR A85 Flat Tread on Polypropylene (Twin wheel) Wheel with Precision bearing for Twin wheel , Gray RAL7001 Body/Hub and Gray RAL7015 Tread, Swivel - no brake
Key Specifications:
Typical Applications: hospital beds, patient lifts, treatment carts, IV stands, surgical and procedure carts, rehabilitation equipment, institutional kitchen carts, shower chairs, and assistive devices.
For volume orders, OEM specifications, or non-standard configurations, contact CasterHQ engineering. Lead time on standard SKUs is 3-5 business days from purchase order.
Order processing
Made to order. Built to specification after your PO. Typical lead time: In Stock · Ships in 2-3 Days.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This PH Casters Tandem Standard Height MP24T10125PABG18 — 125mm Swivel is rated to 242 lb per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Thermoplastic Elastomer tread on Polypropylene core wheel with a .79" / 20mm tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a Threaded Stem mount. Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.
This is a Swivel caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
The Thermoplastic Elastomer tread on Polypropylene core wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 152mm / 5.98". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$40.00
| Identification | |
| Brand | PH Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4.92" (125 mm) |
| Wheel Tread Width | .79" / 20mm |
| Overall Height | 152mm / 5.98" |
| Mount Style | Threaded Stem |
| Rig Type | Swivel |
| Load & Performance | |
| Weight Capacity Per Caster (lbs) | 242 |
| Brake Type | Swivel |
| Materials & Finish | |
| Wheel Material | Thermoplastic Elastomer tread on Polypropylene core |
