Vanguard Swivel Caster with 8" x 2" Duralast Polyurethane (95A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings Hamilton

Vanguard Swivel Caster with 8" x 2" Duralast Polyurethane (95A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$173.00 USD - $212.06 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-628-DB

Product Overview

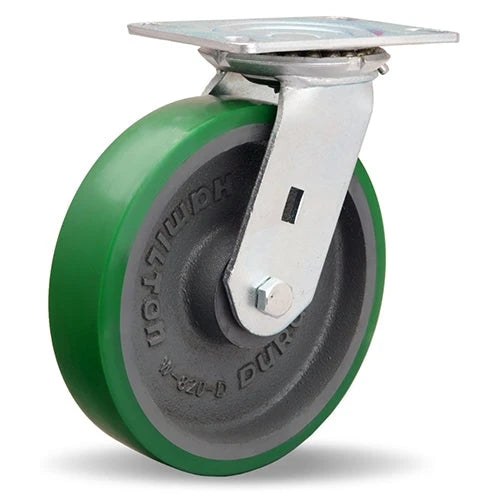

Vanguard Swivel Caster with 8" x 2" Duralast Polyurethane (95A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings

The Hamilton Caster Part#S-628-DB is a heavy-duty caster designed to provide reliable mobility and exceptional performance for various industrial applications. Whether you need to move heavy loads, equipment, or machinery, this caster is built to handle the task with ease. With a strong focus on durability and precision engineering, the Part#S-628-DB offers outstanding load-bearing capabilities, ensuring your materials are transported efficiently and safely.

Constructed with high-quality materials and manufactured with precision, this caster guarantees longevity and robustness, making it a valuable asset in demanding environments. Its versatility and dependability make it a preferred choice for numerous industries, from manufacturing and warehouses to distribution centers and beyond.

The Hamilton Caster Part#S-628-DB is the perfect solution for heavy-duty transportation needs, offering durability, dependability, and smooth mobility for your industrial applications.

Technical Specs

Swivel or Rigid caster Swivel
Load Capacity (lbs.) @ 3 mph 1200
Wheel Diameter (in.) 8
Wheel Face (in.) 2
Overall Height (in.) 9.5
Swivel Offset (in.) 2.375
Mounting Plate (in.) 4 1/2 x 6 1/4

Bolt Hole 1 (in.) 2 3/8 x 4 15/16
Bolt Hole 2 (in.) 3 3/8 x 5 1/4
Mounting Bolt (in.) 0.5
Caster Color/Finish Bright Zinc Plated
Wheel Type Duralast
Wheel Color/Finish Green Poly on Gray Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-820-DB-1/2
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 14
Caster Rig Type Cold Forged/Stamped

Key Features

Load Capacity: The Part#S-628-DB boasts an impressive load capacity of 1200 lbs, making it capable of effortlessly handling heavy loads and equipment.
Durable Construction: This caster is built to last, with a rugged design and heavy-duty materials that ensure reliable performance even under rigorous conditions.
Smooth Mobility: Equipped with precision ball bearings, the Part#S-628-DB ensures smooth and effortless movement, reducing friction and enabling efficient transportation.
Wheel Material: The caster features high-quality polyurethane wheels that provide excellent load-bearing capacity and traction on various surfaces, ensuring stability and ease of movement.
Wheel Diameter: With a wheel diameter that is (insert diameter), this caster offers enhanced stability and improved performance, making it suitable for a wide range of applications.
Versatile Application: The Part#S-628-DB is suitable for numerous industrial settings, including manufacturing facilities, warehouses, distribution centers, and more.
