All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Stevens ESCORT SRT-8 steel appliance hand truck, red steel frame, black uprights, strap and footplate

Safe & Appliance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

04 Series

These 04 series casters pack a high rating into a compact 3 in wheel for low carts, machine bases, and equipment that sits low. Casters in this collection range from 500 to 700 lb per caster. Wheels are 3 x 1-13/16 in in glass filled nylon, polyolefin, and polyurethane (poly or urethane). Nylon carries the most and rolls easily on smooth concrete. Soft rubber or TPR tread is the better pick when the floor has chips or grit. Match plate size, bolt pattern, and overall height before you order. Choose swivel casters when the cart must turn in place, rigid casters for straight travel, and add a brake when the cart needs to stay put. Capacities below are per caster unless a listing says set. Read the listing for the exact wheel size, overall height, and mount shown. Low profile aisle: low profile casters. Heavy duty hub: heavy duty casters.

Shop by type

1 type

Wheel = wheel diameter · capacity is per caster.

700 lbs
TieredPricing
Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" Glass-filled Nylon Swivel Caster - 700 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-13/16" Glass-Filled Nylon Swivel Caster – 700 lb
Part # 04-S-3113-MA-62B-0
from $46.00
Volume pricing available
NylonPlate
Load rating
700 lbs
Size3" x 1-13/16"
Capacity700 lbs
WheelNylon
MountPlate
TypeSwivel
More Details Less Details
Width 1-13/16"
Height 4-1/4"
Temp Range -45°F to 475°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" Glass-filled Nylon Swivel Caster...
Shop Product
500 lbs
TieredPricing
Replacement caster for Traulsen CK9
Ships in 1-3 Business Days

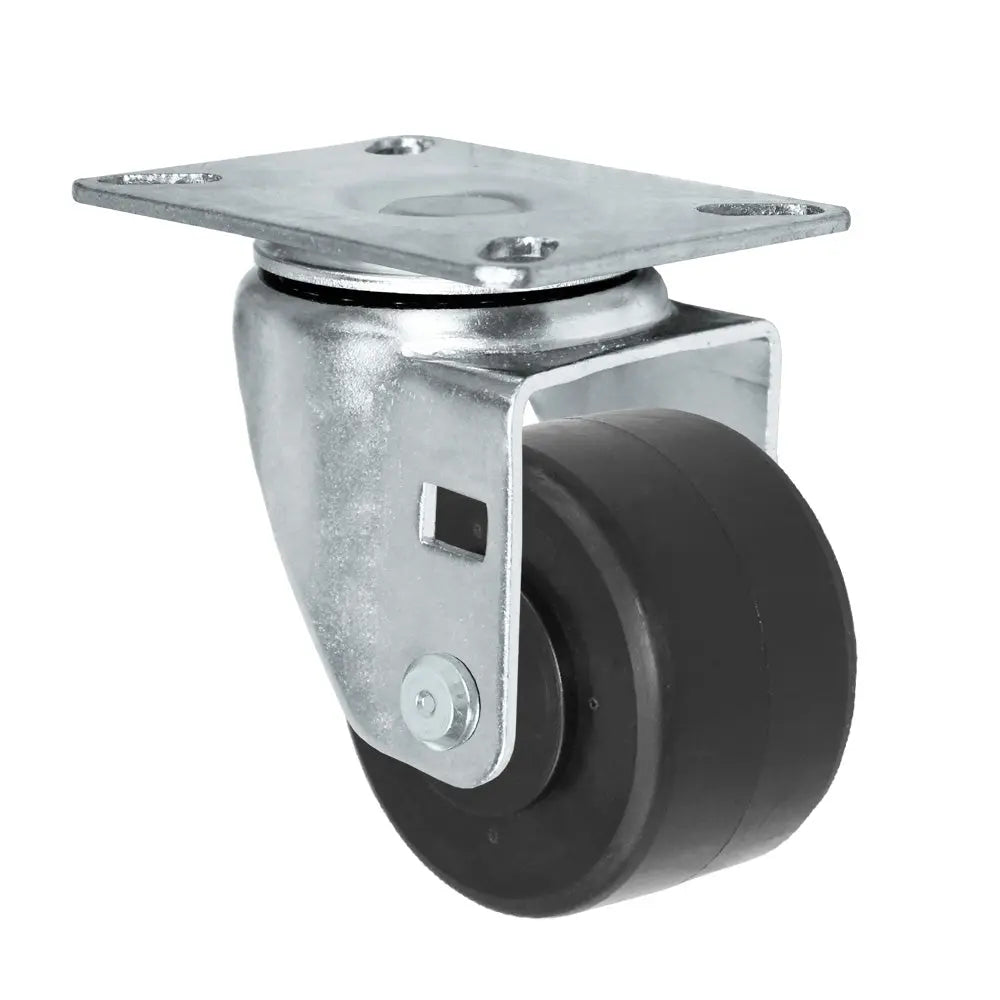

3" x 1-13/16" Polyolefin Swivel Caster – 500 lb
Part # 04-S-3113-HPO-91B-0
from $35.00
Volume pricing available
PolyolefinPlate
Load rating
500 lbs
Size3" x 1-13/16"
Capacity500 lbs
WheelPolyolefin
MountPlate
TypeSwivel
More Details Less Details
Width 1-13/16"
Height 4-1/4"
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" HD Polyolefin Swivel Caster...
Shop Product
550 lbs
TieredPricing

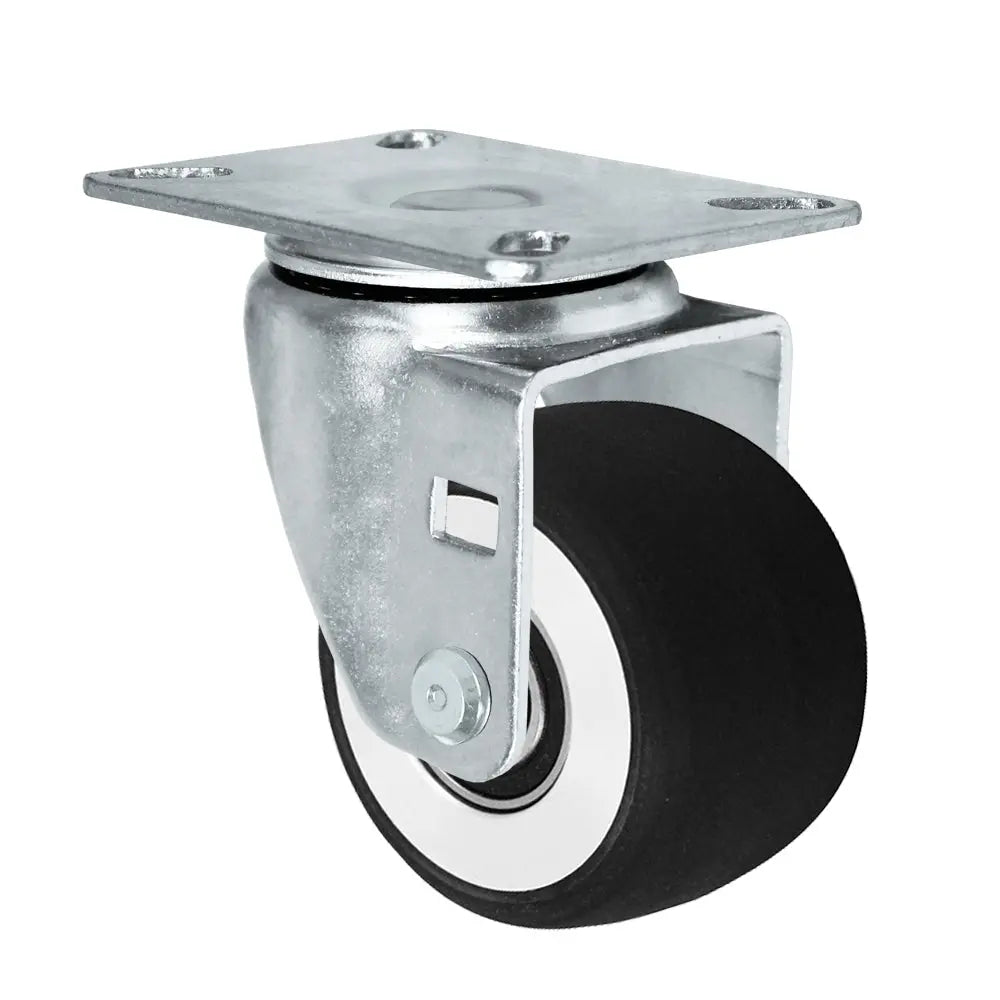

Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" Sirius HD Donut Polyurethane | Aluminum Swivel Caster - 550 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-13/16" Sirius HD Polyurethane Swivel Caster – 550 lb
Part # 04-S-3113-DUA-62M-0
from $46.00
Volume pricing available
PolyurethanePlate
Load rating
550 lbs
Size3" x 1-13/16"
Capacity550 lbs
WheelPolyurethane
MountPlate
TypeSwivel
More Details Less Details
Width 1-13/16"
Height 4-1/4"
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" Sirius HD Donut Polyurethane...
Shop Product
700 lbs
TieredPricing

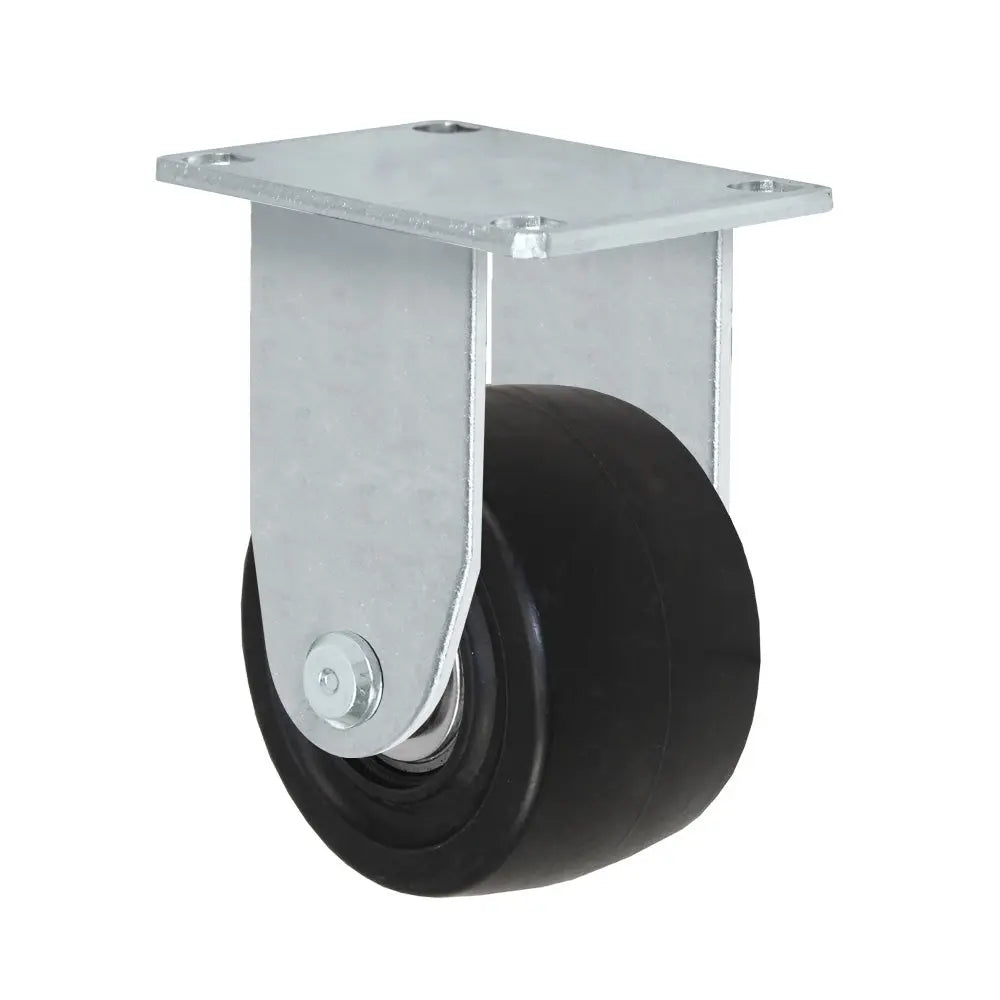

Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" Glass-filled Nylon Rigid Caster - 700 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-13/16" Glass-Filled Nylon Rigid Caster – 700 lb
Part # 04-R-3113-MA-62B-0
$46.00
Volume pricing available
NylonPlate
Load rating
700 lbs
Size3" x 1-13/16"
Capacity700 lbs
WheelNylon
MountPlate
TypeRigid
More Details Less Details
Width 1-13/16"
Height 4-1/4"
Temp Range -45°F to 475°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" Glass-filled Nylon Rigid Caster...
Shop Product
500 lbs
TieredPricing

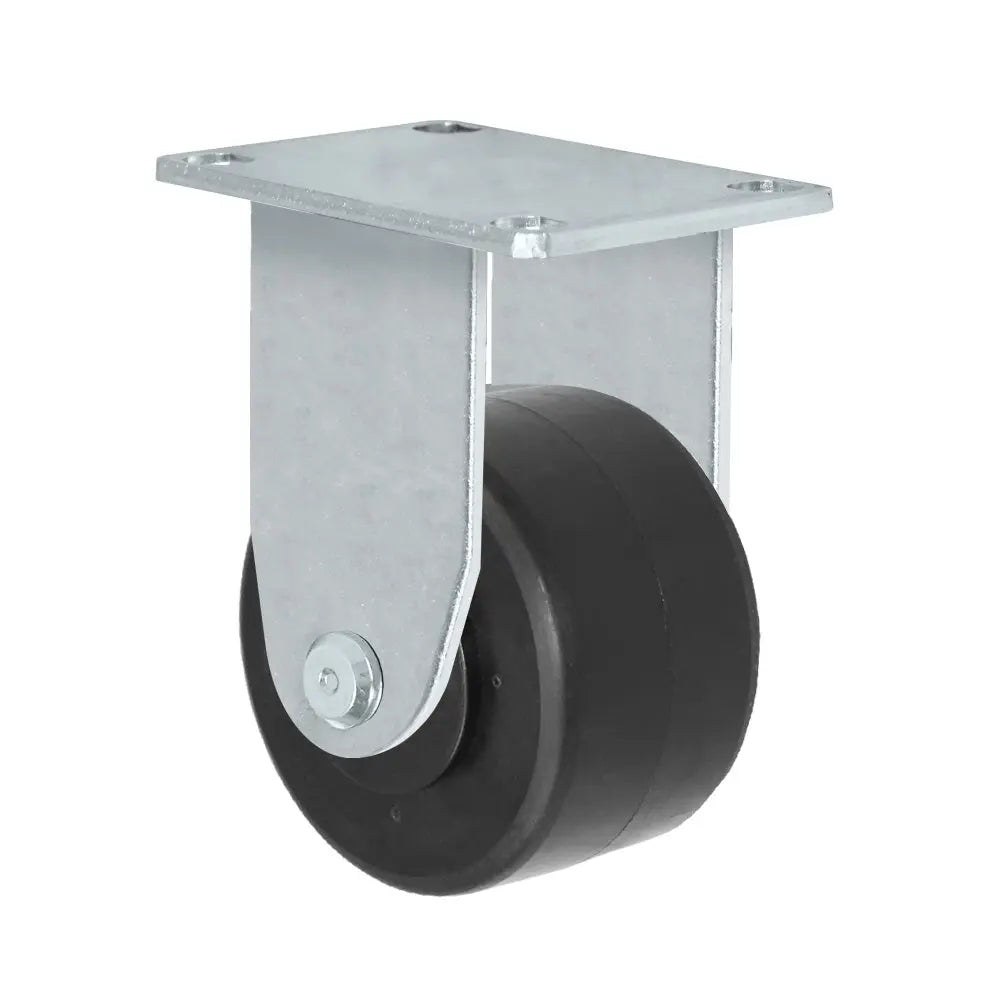

Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" HD Polyolefin Rigid Caster - 500 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-13/16" Polyolefin Rigid Caster – 500 lb
Part # 04-R-3113-HPO-91B-0
$34.00
Volume pricing available
PolyolefinPlate
Load rating
500 lbs
Size3" x 1-13/16"
Capacity500 lbs
WheelPolyolefin
MountPlate
TypeRigid
More Details Less Details
Width 1-13/16"
Height 4-1/4"
Temp Range -45°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 04 Series - 3" x 1-13/16" HD Polyolefin Rigid Caster...
Shop Product

Durastar 04 series casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Nylon 3 in 700 lb -45°F to 475°F low rolling effort on smooth floors, handles wet areas
Polyolefin 3 in 500 lb -45°F to 180°F wet and chemical areas, light to medium loads
Polyurethane 3 in 550 lb -40°F to 180°F quiet, floor-friendly and long wearing

Ratings are for single casters of Durastar 04 series casters, from product fields [S1].

Choosing Durastar 04 series casters

  1. Load: divide the loaded weight by three for a four-caster cart [S2]; at 700 lb each, Durastar 04 series casters suit a loaded cart of about 2,100 lb.
  2. Floor: on Durastar 04 series casters, polyurethane is kinder to tile and finished floors; nylon and polyolefin roll easier under heavy loads on smooth concrete.
  3. Rig: swivel and rigid Durastar 04 series casters are listed.
  4. Heat: among Durastar 04 series casters, the highest listed range is -45°F to 475°F on nylon; check the temperature field on each listing before oven or hot-room use.

Durastar 04 series casters questions

How much weight can Durastar 04 series casters carry?

Single Durastar 04 series casters are rated 500 to 700 lb.

What wheel material is most common on Durastar 04 series casters?

Nylon leads on Durastar 04 series casters, rated 700 lb per caster. Among Durastar 04 series casters, polyolefin is next at 500 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
