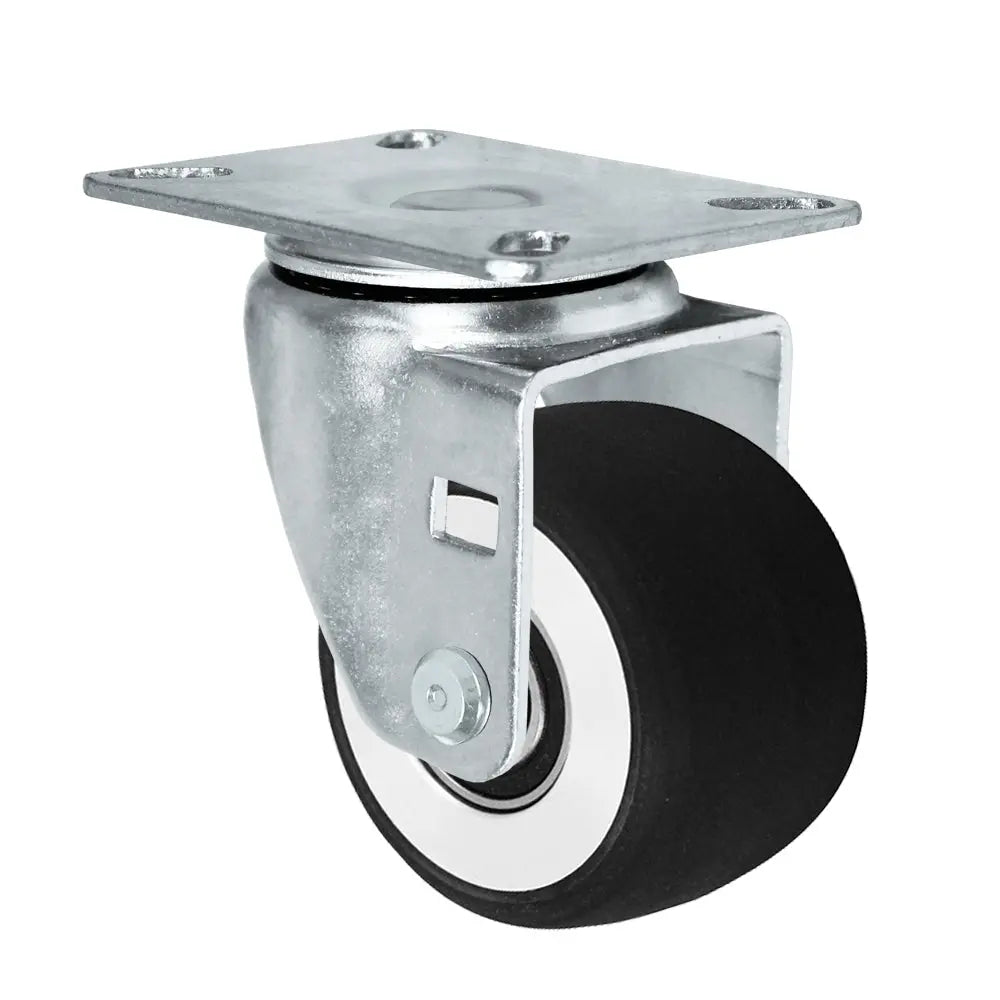

The Durastar Medium Heavy Duty 04 Series caster featuring a 3" x 1-13/16" Sirius HD Donut Polyurethane on Aluminum wheel is an exceptional choice for demanding industrial and commercial applications. Engineered to meet the challenges of medium to heavy-duty environments, this swivel caster offers a robust 550 lb load capacity and customizable top plate options, ensuring versatility and reliable mobility.
The Sirius HD Donut Polyurethane on Aluminum wheel offers exceptional resistance to wear, chemicals, and impacts, ensuring long-lasting performance in challenging conditions. Its non-marking properties make it suitable for various floor types, while the smooth operation reduces noise levels, enhancing overall user experience and workplace efficiency.
This versatile caster excels in numerous settings, including:
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Medium Heavy Duty 04 Series Sirius HD Donut Polyurethane | Aluminum Swivel Caster is a high-performance mobility solution designed for demanding industrial and commercial applications. With a robust 550 lb load capacity, this caster offers exceptional reliability and smooth operation across various settings.
The Sirius HD Donut Polyurethane on Aluminum wheel excels in various aspects:
This versatile caster excels in numerous settings, including:
With over 35 years of experience in caster manufacturing, Durastar has established itself as a trusted name in the industry. The 04 Series casters are designed with precision and manufactured to meet the highest standards of durability and performance. By choosing Durastar, you're investing in a product that combines innovation, reliability, and exceptional value.
Swivel casters play a crucial role in improving industrial efficiency. Their ability to rotate 360 degrees enables smooth movement of loading equipment, enhancing durability and performance. In industrial settings, these heavy-duty swivel casters are commonly used to move heavy machinery or equipment from one place to another with minimal effort, significantly improving workplace productivity and ergonomics.
This 3" x 1-13/16" Sirius HD Polyurethane Swivel Caster – 550 lb is rated to 550 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 1-13/16" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

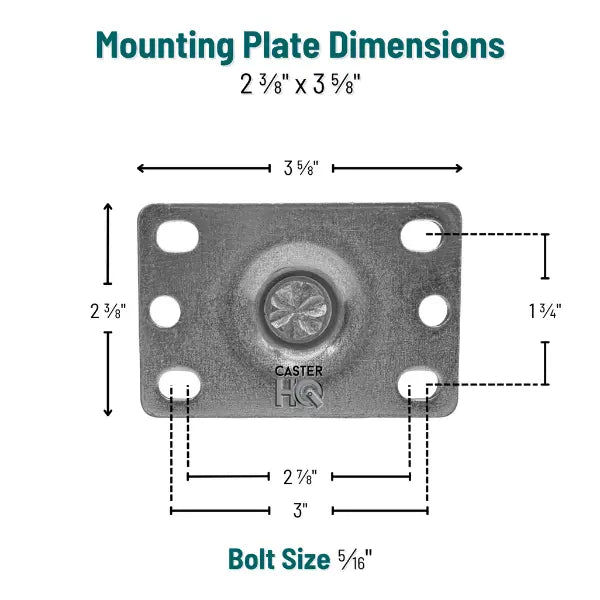

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 4-1/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$46.00
| Identification | |
| Brand | Durastar |
| Dimensions & Mounting | |
| Wheel Diameter | 3" |
| Wheel Tread Width | 1-13/16" |
| Overall Height | 4-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 550 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
