The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

10" x 3" Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 10 inTread: 2-1/2 to 3 inCapacity: 2,500 to 2,600 lb per casterPlate sizes: 5-1/4 x 7-1/4

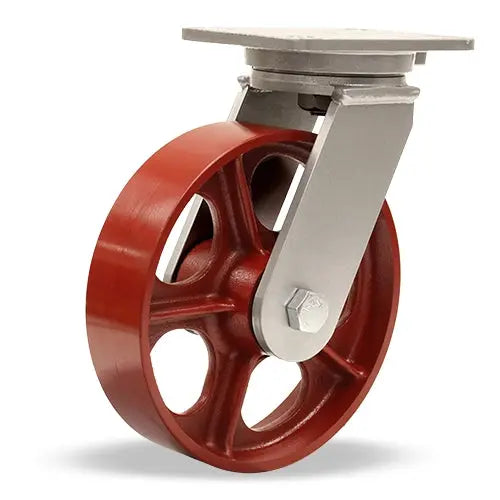

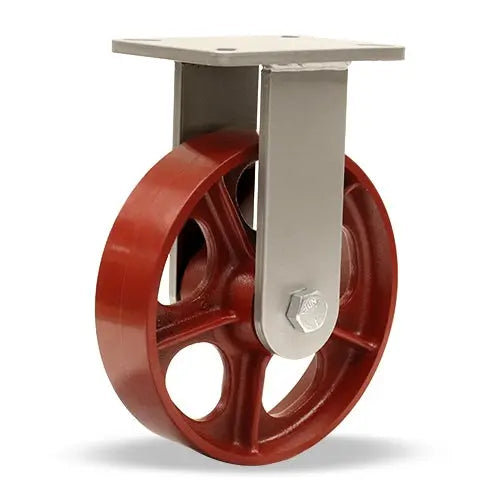

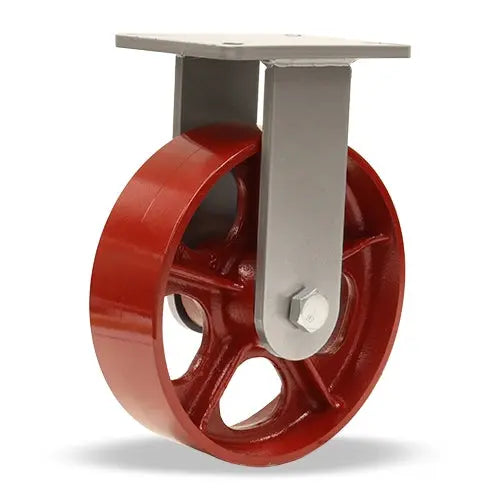

You get four cast iron casters here from Hamilton with 10 in wheels, rated 2,500 to 2,600 lb each. Every one uses a 5-1/4 x 7-1/4 in top plate, and you can pick swivel or rigid, with no brake options. Picks range from a Hamilton CH-12SWF70D 10 x 2 1/2 in metal swivel caster rated 2,500 lb to a Hamilton CH-13MH 10 x 3 in metal swivel caster rated 2,600 lb. Temperature ratings sit at -40°F to 320°F for most of the page.
