Are you in need of a caster that can handle the most demanding applications with ease? Look no further than the Hamilton Caster CH-12SWF70D.

Hamilton Champion Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing - CasterHQ

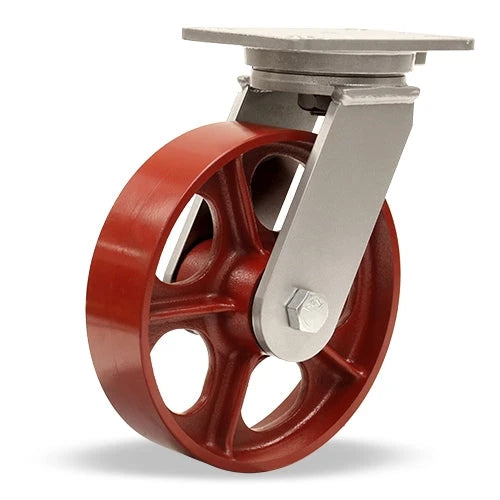

Hamilton Champion Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing

Quantity Discounts:

5% Off: 50-99 pcs
10% Off: 100-199 pcs
15% Off: 200+ pcs

Volume pricing applied automatically at checkout

.price-ui--loading { display: block !important; opacity: 1 !important; }

$390.00 - $543.68

Status: In Stock

Ships within 1–2 business days

PRODUCT CODE: S-CH-10MH

Technical Specs

Swivel or Rigid caster

Swivel

Load Capacity (lbs.) @ 3 mph

2500

Wheel Diameter (in.)

Wheel Face (in.)

2.5

Overall Height (in.)

12.5

Swivel Offset (in.)

2.5

Mounting Plate (in.)

5 1/4 x 7 1/4

Bolt Hole 1 (in.)

3 3/8 x 5 1/4

Bolt Hole 2 (in.)

4 1/8 x 6 1/8

Mounting Bolt (in.)

0.5

Caster Color/Finish

Platinum Powder

Wheel Type

Metal

Wheel Color/Finish
Crimson Red

Replacement Wheel

W-1025-M-1

Wheel Material @ Tread

Metal

Shipping Weight (lbs.)

Caster Rig Type

Integral Forged Kingpin

Note

The four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster.

Mounting Plate Length (in.)

7.25

Mounting Plate Width (in.)

5.25

Wheel Core Material

Cast Iron

Key Features

Extra heavy-duty-champion caster capable of handling demanding applications

Precision-machined-swivel bearing and kingpin for smooth maneuverability

Dual ball bearing-raceway design for enhanced stability and load distribution

12-inch diameter-solid forged steel wheel with polyurethane tire for maximum traction

Impressive-load capacity of up to 7,000 pounds

Hot-forged-swivel section and legs for exceptional strength

Durable-powder coat finish for corrosion and rust resistance

Product Overview

Hamilton Champion Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing

Are you in need of a caster that can handle the most demanding applications with ease?-Look no further than the Hamilton Caster CH-12SWF70D. Designed for exceptional strength, durability, and reliability, this extra heavy-duty champion caster is built to tackle the toughest challenges in industrial environments.

With its robust construction and advanced engineering-the CH-12SWF70D is capable of supporting heavy loads effortlessly. Its precision-machined swivel bearing and kingpin ensure smooth maneuverability, allowing you to easily navigate through obstacles and tight spaces. The dual ball bearing raceway design provides enhanced stability and load distribution, making it ideal for applications that require consistent and reliable performance.

This Hamilton caster features a 12-inch diameter-solid forged steel wheel, which is equipped with a polyurethane tire for maximum traction and durability. The wheel is capable of handling a substantial load capacity of up to 2,500 pounds, making it suitable for heavy machinery, equipment, and industrial carts. The wheel also boasts a precision-machined hub for optimal performance and long-lasting use.

The CH-12SWF70D is designed to withstand harsh operating conditions-Its hot-forged swivel section and legs are made from heavy-duty steel, ensuring exceptional strength and resistance to wear and tear. The caster is finished with a durable powder coat that provides an additional layer of protection against corrosion and rust, extending its lifespan and preserving its performance.
