16" x 5" Polyurethane Casters

Diameter: 16 inTread: 3, 4, 5 inCapacity: up to 23,000 lb
Polyurethane casters here serve warehouse carts on epoxy and smooth concrete. Typical builds show wheel diameters 16 in, polyurethane treads, and plate-mount frames. Replace worn corners in matched sets when possible so the cart tracks straight under load. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. These extreme-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.
7200 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 16" x 5" (1" Thick) DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 16" x 5" DuraGlide Swivel Caster – 7200 lb
Part # S-MD-165GB95
$2,459.00
Volume pricing available
Cast IronPlate
Load rating
7200 lbs
Diameter 16"
Capacity 7200 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 5" (1" Thick) DuraGlide Polyurethane (95A) on...
Shop Product
11500 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 16" x 5" Ultra-Thick (3") DuraGlide Polyurethane (95A) on Cast Iron Steel Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-1653GB95 16" x 5" Polyurethane Swivel Caster – 11500 lb
Part # S-MD-1653GB95
$3,681.00
Volume pricing available
Cast IronPlate
Load rating
11500 lbs
Diameter 16"
Capacity 11500 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 5" Ultra-Thick (3") DuraGlide Polyurethane (95A) on...
Shop Product
10000 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 16" x 5" Ultra-Thick (2") DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-1652GB95 16" x 5" DuraGlide Swivel Caster – 10000 lb
Part # S-MD-1652GB95
$2,596.00
Volume pricing available
Cast IronPlate
Load rating
10000 lbs
Diameter 16"
Capacity 10000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 5" Ultra-Thick (2") DuraGlide Polyurethane (95A) on...
Shop Product
8900 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 16" x 4" (1" Thick) DuraGlide Polyurethane (95A) on Forged Steel Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-1643SGB95 16" x 4" DuraGlide Swivel Caster – 8900 lb · Model S-MD-164GB95
Part # S-MD-164GB95
$1,879.00
Volume pricing available
PolyurethanePlate
Load rating
8900 lbs
Diameter 16"
Capacity 8900 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 4" (1" Thick) DuraGlide Polyurethane (95A) on...
Shop Product
8900 lbs
TieredPricing

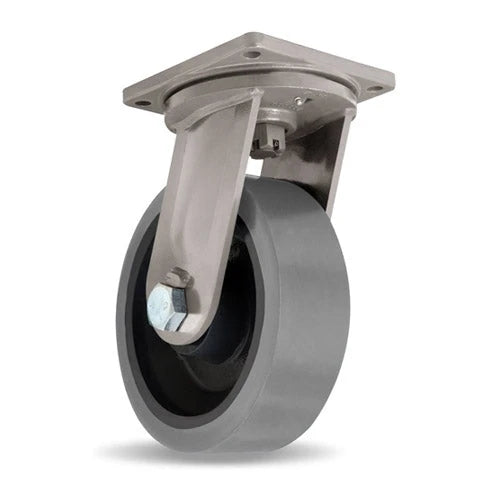

Hamilton Maxi-Duty Swivel Caster with 16" x 4" Ultra-Thick (3") DuraGlide Polyurethane (95A) on Forged Steel Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-1643SGB95 16" x 4" DuraGlide Swivel Caster – 8900 lb · Model S-MD-1643SGB95
Part # S-MD-1643SGB95
$2,925.00
Volume pricing available
PolyurethanePlate
Load rating
8900 lbs
Diameter 16"
Capacity 8900 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 4" Ultra-Thick (3") DuraGlide Polyurethane (95A) on...
Shop Product
7200 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 16" x 4" Ultra-Thick (2") DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-1642GB95 16" x 4" DuraGlide Swivel Caster – 7200 lb
Part # S-MD-1642GB95
$1,904.00
Volume pricing available
Cast IronPlate
Load rating
7200 lbs
Diameter 16"
Capacity 7200 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 4" Ultra-Thick (2") DuraGlide Polyurethane (95A) on...
Shop Product
6800 lbs
TieredPricing
Hamilton Maxi-Duty Swivel Caster with 16" x 3" Ultra-Thick (3") DuraGlide Polyurethane (95A) on Forged Steel Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-1633SGB95 16" x 3" DuraGlide Swivel Caster – 6800 lb
Part # S-MD-1633SGB95
$2,655.00
Volume pricing available
PolyurethanePlate
Load rating
6800 lbs
Diameter 16"
Capacity 6800 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 3"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster with 16" x 3" Ultra-Thick (3") DuraGlide Polyurethane (95A) on...
Shop Product
7200 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 16" x 5" (1" Thick) DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton MD-165GB95 16" x 5" DuraGlide Rigid Caster – 7200 lb
Part # R-MD-165GB95
$2,460.00
Volume pricing available
Cast IronPlate
Load rating
7200 lbs
Diameter 16"
Capacity 7200 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 16" x 5" (1" Thick) DuraGlide Polyurethane (95A) on...
Shop Product
11500 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 16" x 5" Ultra-Thick (3") DuraGlide Polyurethane (95A) on Cast Iron Steel Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton MD-1653GB95 16" x 5" DuraGlide Poly Rigid Caster – 11500 lb
Part # R-MD-1653GB95
$3,681.00
Volume pricing available
Cast IronPlate
Load rating
11500 lbs
Diameter 16"
Capacity 11500 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 16" x 5" Ultra-Thick (3") DuraGlide Polyurethane (95A) on...
Shop Product
23000 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 16" x 5" Ultra-Thick (2") DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton MD-1652GB95 16" x 5" DuraGlide Rigid Caster – 23000 lb
Part # R-MD-1652GB95
$2,179.00
Volume pricing available
Cast IronPlate
Load rating
23000 lbs
Diameter 16"
Capacity 23000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 16" x 5" Ultra-Thick (2") DuraGlide Polyurethane (95A) on...
Shop Product
6000 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 16" x 4" (1" Thick) DuraGlide Polyurethane (95A) on Forged Steel Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-164GB95 16" x 4" DuraGlide Rigid Caster – 6000 lb
Part # R-MD-164GB95
$1,733.00
Volume pricing available
PolyurethanePlate
Load rating
6000 lbs
Diameter 16"
Capacity 6000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 16" x 4" (1" Thick) DuraGlide Polyurethane (95A) on...
Shop Product
8900 lbs
TieredPricing
Hamilton Maxi-Duty Rigid Caster with 16" x 4" Ultra-Thick (3") DuraGlide Polyurethane (95A) on Forged Steel Center with 1 1/4" Precision Sealed Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-1643SGB95 16" x 4" DuraGlide Rigid Caster – 8900 lb
Part # R-MD-1643SGB95
$2,714.00
Volume pricing available
PolyurethanePlate
Load rating
8900 lbs
Diameter 16"
Capacity 8900 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 19-1/2"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster with 16" x 4" Ultra-Thick (3") DuraGlide Polyurethane (95A) on...
Shop Product

16" DuraGlide Polyurethane Wheels

Featuring seven different Casters, all within the 16" range. Choose between the 16" x 3", 16" x 4" or 16" x 5" DuraGlide Polyurethane wheel for your Caster needs.

Search
