Hamilton Maxi-Duty Swivel Caster with 16" x 5" (1" Thick) DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings Hamilton

Hamilton Maxi-Duty Swivel Caster with 16" x 5" (1" Thick) DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$2,459.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-MD-165GB95

Product Overview

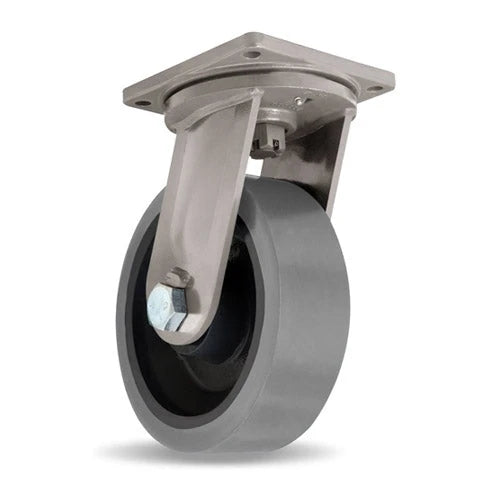

Hamilton Maxi-Duty Swivel Caster with 16" x 5" (1" Thick) DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings

The Hamilton Caster Super Duty Maxi-Duty Caster is a heavy-duty solution designed to tackle the toughest industrial applications-With its exceptional strength and durability, this caster is built to handle the most demanding environments and provide reliable performance.

Constructed with high-quality materials and precision engineering, the Super Duty Maxi-Duty Caster offers unmatched stability and load-bearing capacity. It features a robust steel frame that can withstand heavy loads of up to 7,200 pounds, making it ideal for industrial machinery, large equipment, and other heavyweight applications.

The Super Duty Maxi-Duty Caster also features a precision tapered roller bearing in the wheel-providing enhanced maneuverability and reduced friction for effortless swiveling and smooth rolling. The wheel is securely attached to a heavy-duty forged steel kingpin, further enhancing its strength and stability.

Installation and maintenance are made easy with the caster's integrated grease zerks-allowing for quick and convenient lubrication to ensure optimal performance and longevity. The caster also includes a strong mounting plate, making it simple to attach to equipment or machinery.

Whether you're operating in a manufacturing facility-warehouse, or any other industrial setting, the Hamilton Caster Super Duty Maxi-Duty Caster is the ultimate solution to meet your heavy-duty mobility needs. Its exceptional strength, durability, and smooth maneuverability make it a reliable choice for the most demanding applications.

Technical Specs

Swivel or Rigid caster Swivel
Load Capacity (lbs.) @ 3 mph 7,200 lbs
Wheel Diameter (in.) 16
Wheel Face (in.) 5
Overall Height (in.) 19.5
Swivel Offset (in.) 3.25
Mounting Plate (in.) 8 1/2 x 8 1/2
Mounting Bolt (in.) 0.625
Caster Color/Finish Platinum Powder
Wheel Type DuraGlide
Wheel Color/Finish Gray Poly on Black Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-1650-DT70-1-1/4
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 116
Bolt Holes (in.) 7 x 7
Caster Rig Type Integral Forged Kingpin

Key Features

Super heavy-duty construction with a load capacity of up to 7,200 pounds.
Precision tapered roller bearing for effortless swiveling and reduced friction.
Heavy-duty forged steel kingpin for enhanced strength and stability.
Integrated grease zerks for easy maintenance and lubrication.
Strong mounting plate for secure attachment to equipment or machinery.
Ideal for industrial machinery, large equipment, and heavy-duty applications.
Durable polyurethane material offers excellent abrasion resistance.
Suitable for use on rough surfaces and uneven terrain.
Designed for reliability and longevity in demanding environments.
