All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Wheel = wheel diameter · capacity is per wheel.
























| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Polyurethane | Polyolefin and Steel | 3 to 8 in | 200 to 450 lb | -30°F to 140°F | quiet, floor-friendly and long wearing |
| TPR | Polyolefin | 2.95 to 8 in | 150 to 350 lb | -30°F to 140°F | non-marking, quiet on finished floors |
| Polyolefin | 3 to 8 in | 150 to 900 lb | -20°F to 190°F | wet and chemical areas, light to medium loads | |
| Nylon | Polyolefin | 3 to 8 in | 225 to 900 lb | -70°F to 550°F | low rolling effort on smooth floors, handles wet areas |
| Epoxy resin | 4 in | 200 to 400 lb | -20°F to 475°F | oven racks | |
| Rubber | Polyolefin | 4.92 and 5 in | 200 to 440 lb | -30°F to 140°F | cushioned and quiet on finished floors |
| Silicone | Aluminum | 4 in | 200 to 250 lb | -20°F to 475°F |
Ratings are for single casters of P&H 20 Series casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 3 x 1-1/4 in | polyurethane, TPR and polyolefin | 150 to 200 lb |
| 3-1/2 x 1-1/4 in | polyurethane and TPR | 225 to 250 lb |
| 4 x 1-1/4 in | polyurethane, TPR and polyolefin | 200 to 400 lb |
| 4 x 1-3/8 in | nylon, polyolefin and polyurethane | 225 to 700 lb |
| 4 x 1-1/2 in | epoxy resin, polyolefin and nylon | 200 to 700 lb |
| 5 x 1-1/4 in | polyurethane, TPR and polyolefin | 150 to 350 lb |
| 5 x 1-3/8 in | polyolefin, TPR and polyurethane | 120 to 800 lb |
| 6 x 1-1/4 in | polyurethane and TPR | 250 to 350 lb |
Related to P&H 20 Series casters: TPU wheels, 5 x 1-1/4 in TPU casters and 5 x 1.25 in TPU casters.
Single P&H 20 Series casters are rated 150 to 900 lb; most fall between 250 and 340 lb.
Most P&H 20 Series casters use 3-1/8 x 4-1/8 in. Other plates on P&H 20 Series casters: 2-3/8 x 3-5/8 in and 4 x 4-1/2 in.
Polyurethane leads on P&H 20 Series casters, rated 200 to 450 lb per caster. Among P&H 20 Series casters, tpr is next at 150 to 350 lb.

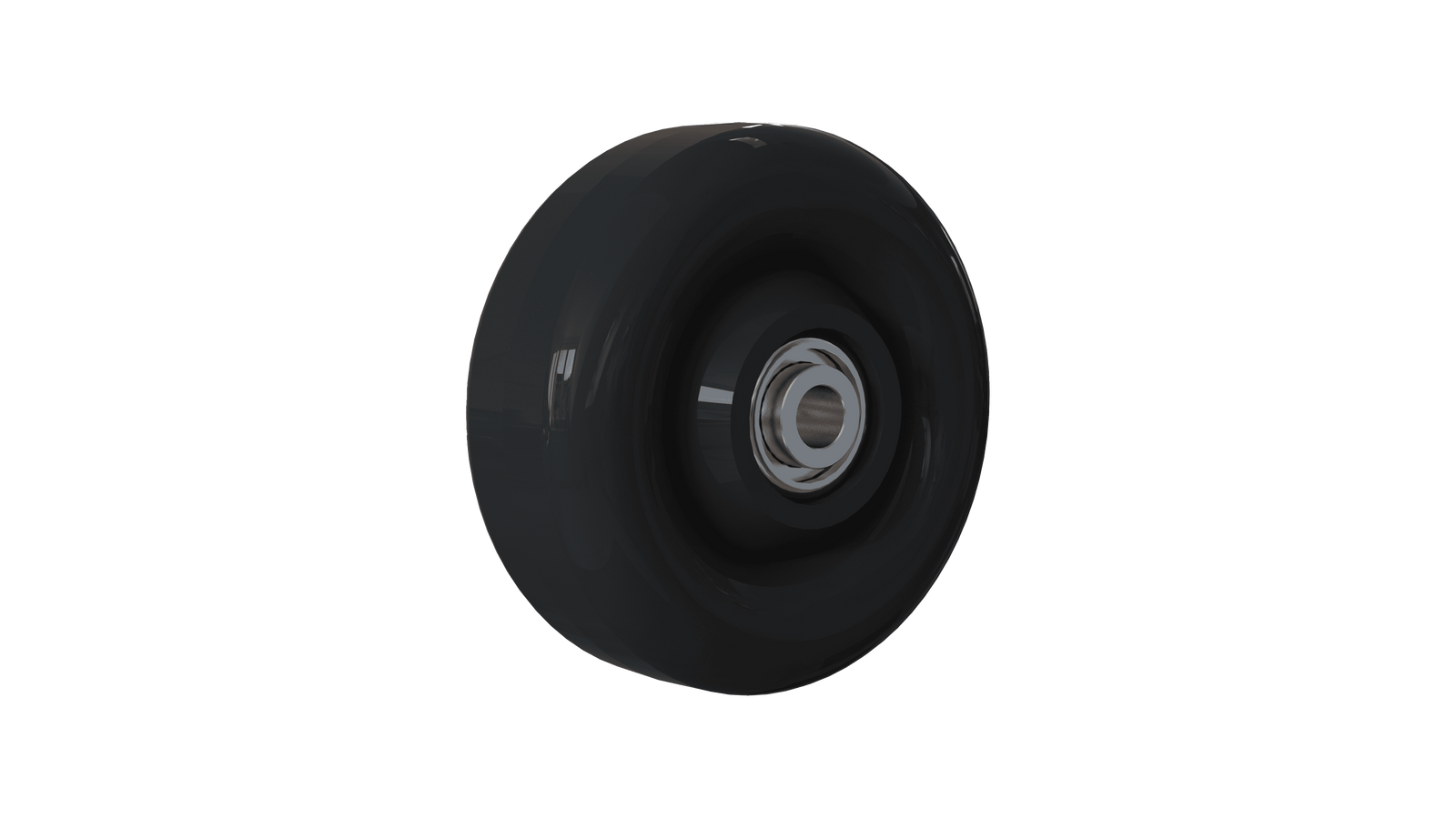

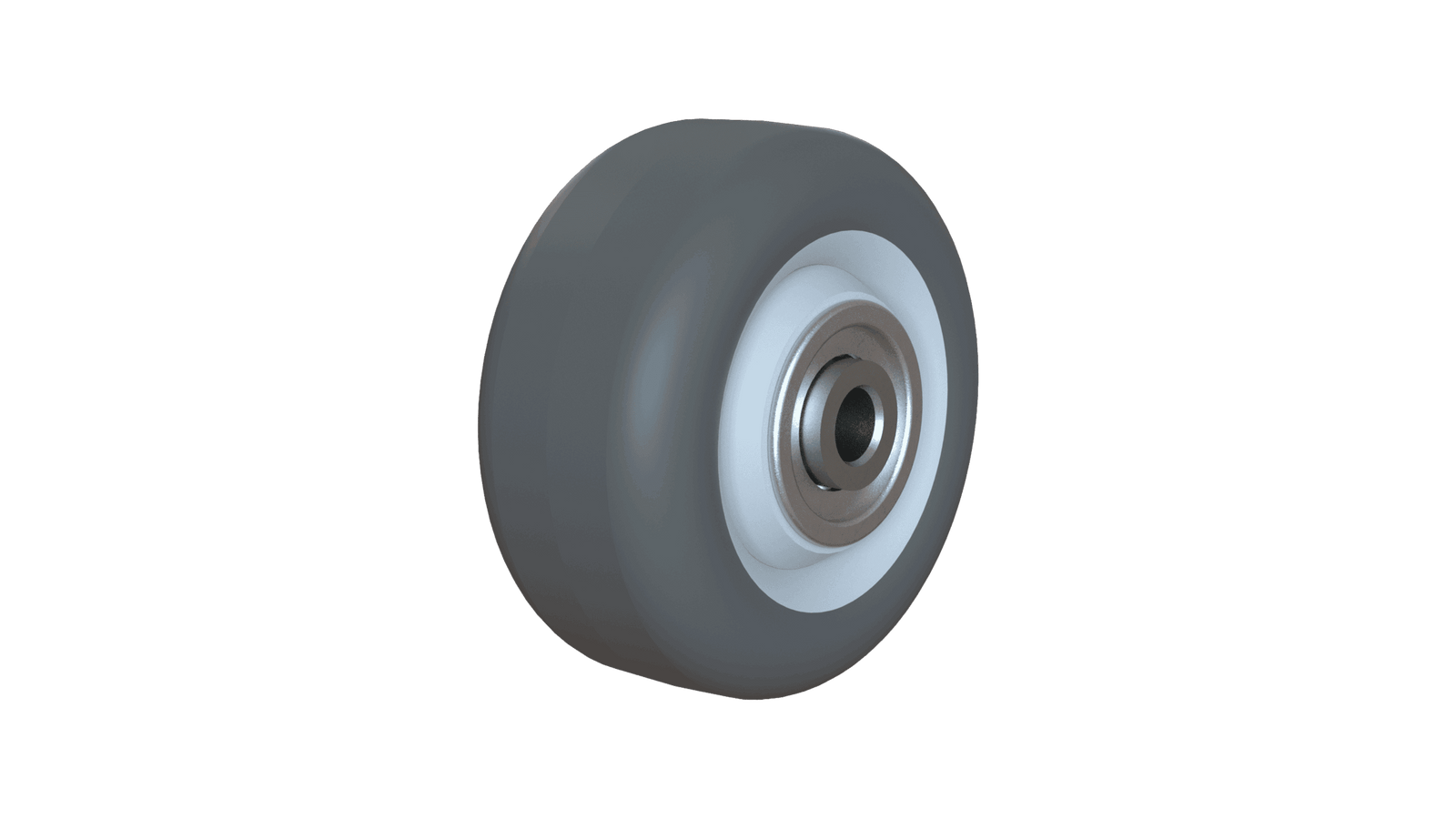

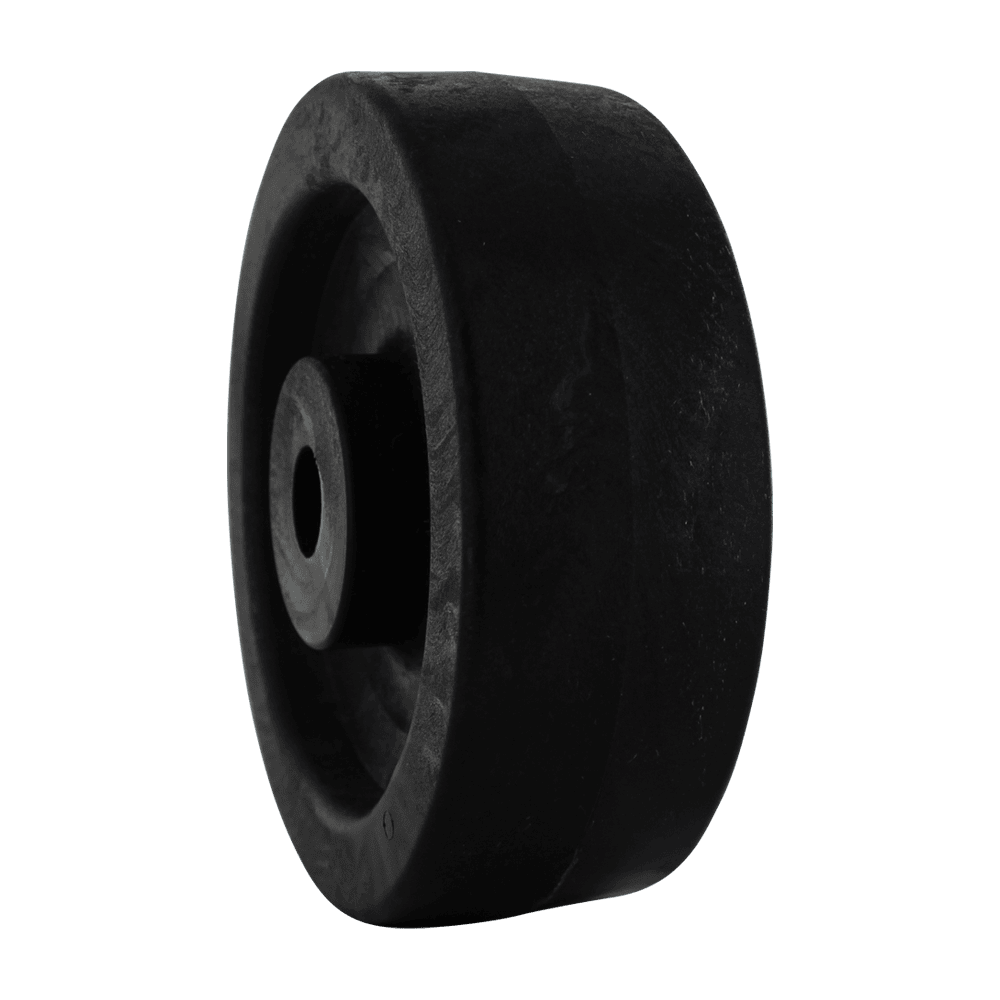

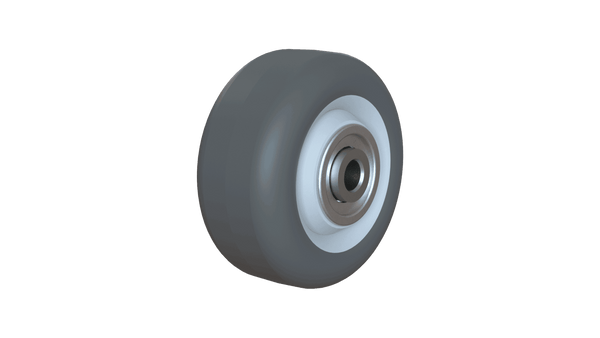

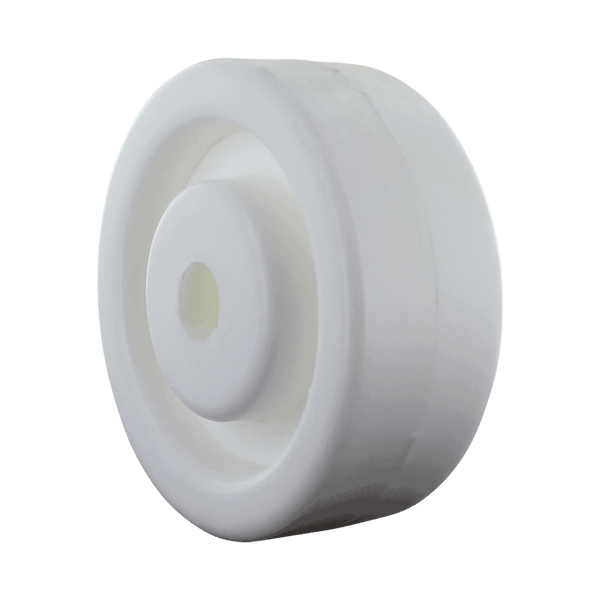

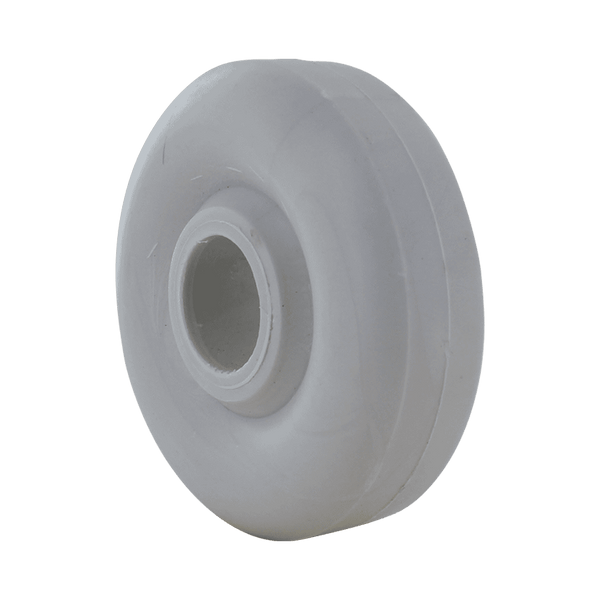

Yes. Wheel-only listings for P&H 20 Series casters are here, sized 4 and 5 in; match the bore and hub length to your axle.
