24 Series

This collection holds 24 Series casters with polyurethane, rubber and polyolefin wheels, built for light carts, racks, and stands. Casters in this collection range from 175 to 350 lb per caster. Wheels in this category range from 3 up to 6 inches in diameter with a 1-1/4 in tread width. The collection includes swivel and rigid models. Polyurethane (poly or urethane) treads are quiet, floor safe, and resist water and many chemicals. Rubber wheels are quiet, cushion the load, and protect floors. Polyolefin is light, low cost, and resists water and many chemicals. It is hard, so it is loud on rough floors. Soft rubber or TPR is the better pick when the floor has chips or grit. Common uses include food service, bakeries, hospitals, schools, laboratories, and material handling carts. Choose swivel casters when the cart must turn in place and rigid casters for straight travel. Polyurethane aisle: polyurethane casters. Wheel hub: replacement wheels.

Shop by type

2 types

Wheel = wheel diameter · capacity is per caster.

Durastar 24 series casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits

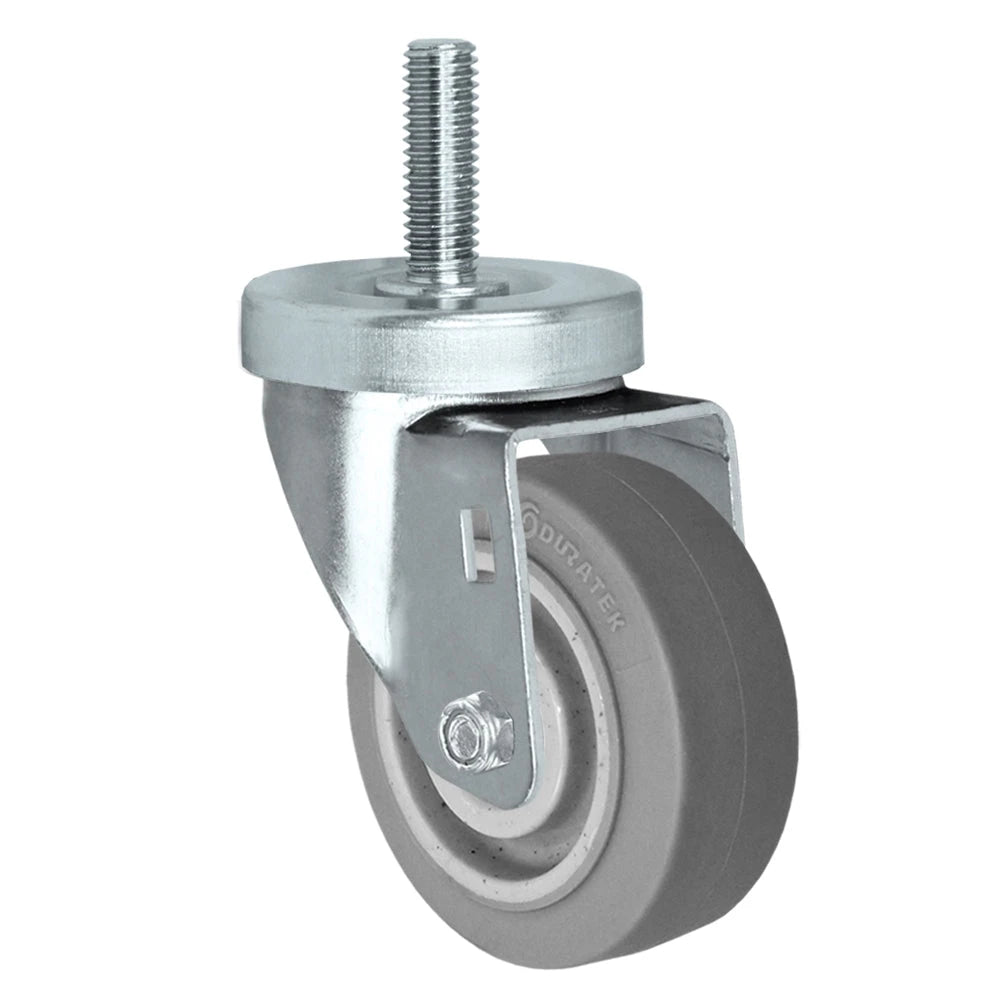

Rubber	Polyolefin	3, 3-1/2, 4 and 5 in	175 to 325 lb	-45°F to 180°F	cushioned and quiet on finished floors

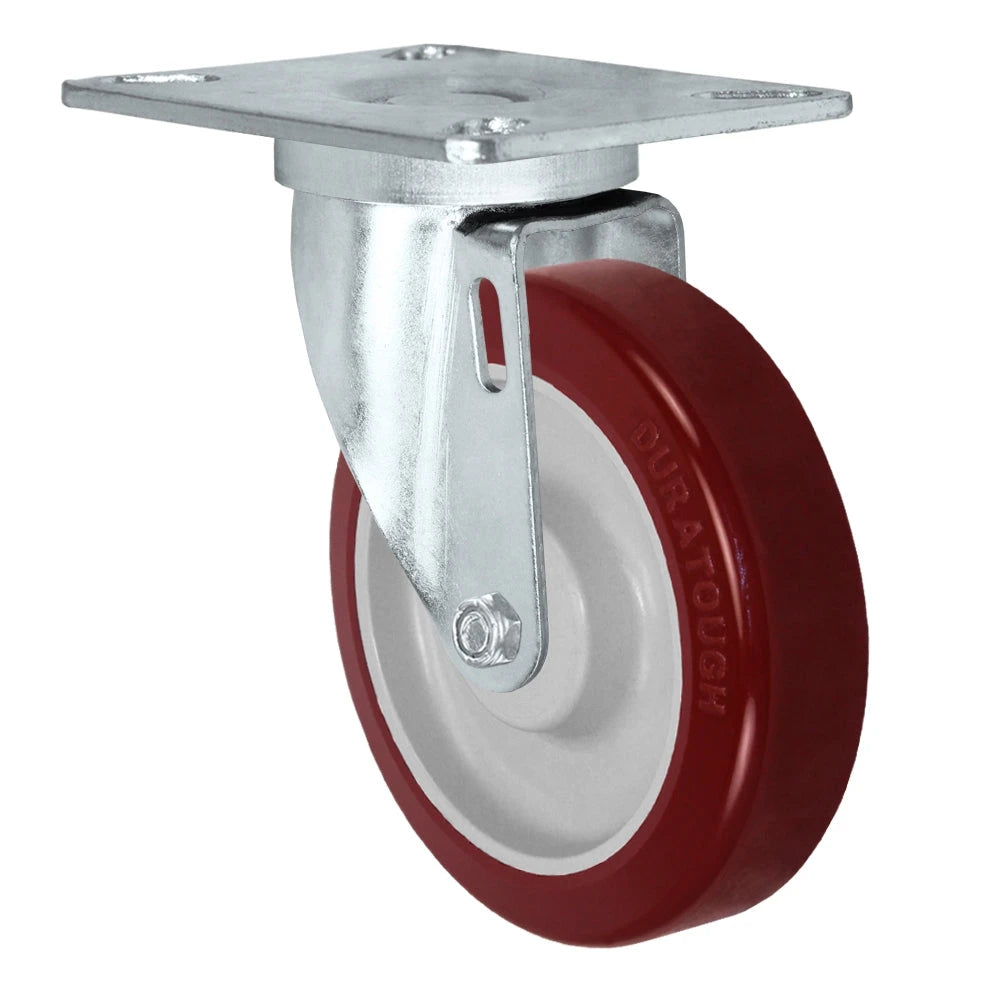

Polyurethane	Polyolefin	3, 3-1/2, 4 and 5 in	250 to 350 lb	-45°F to 180°F	quiet, floor-friendly and long wearing
Phenolic		3, 3-1/2, 4 and 5 in	350 lb	Up to 250°F	hard and easy rolling on smooth, dry floors
Polyolefin		3, 4 and 5 in	250 to 325 lb	-45°F to 180°F	wet and chemical areas, light to medium loads

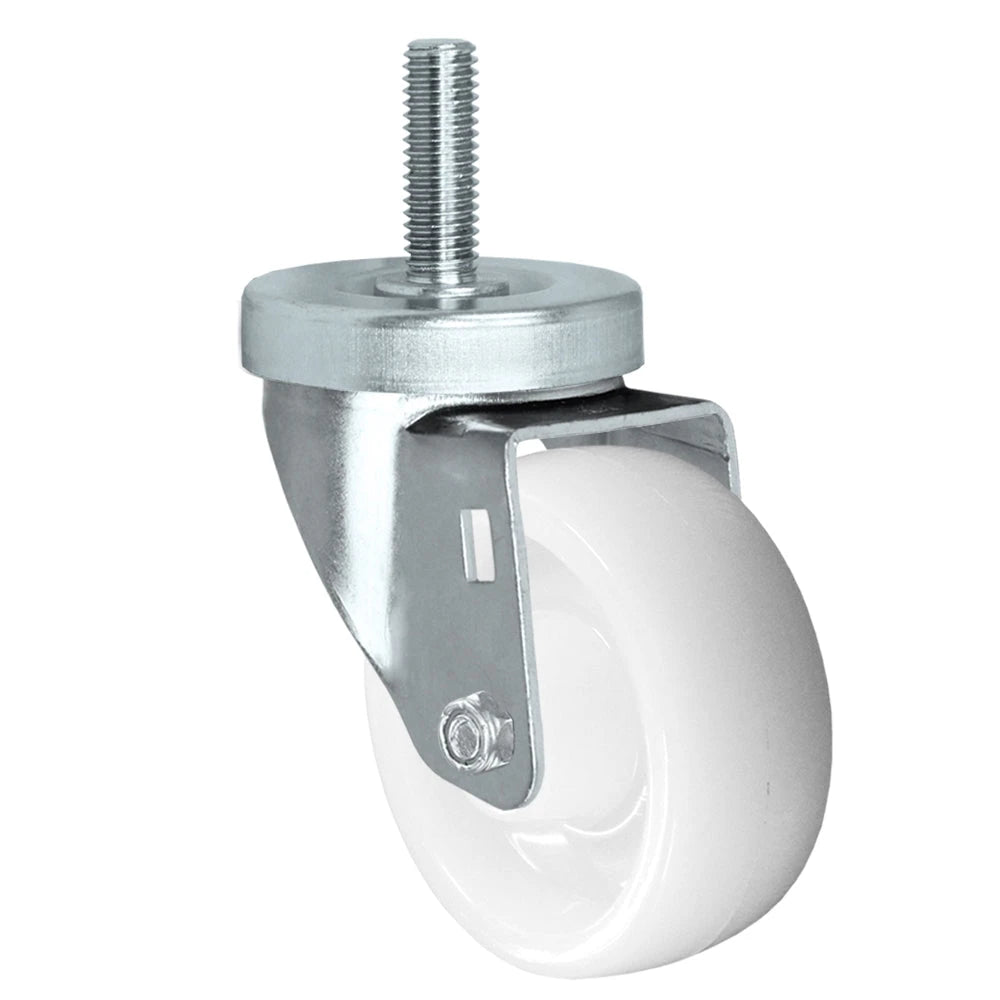

Nylon		3, 4 and 5 in	300 to 350 lb	-45°F to 200°F	low rolling effort on smooth floors, handles wet areas

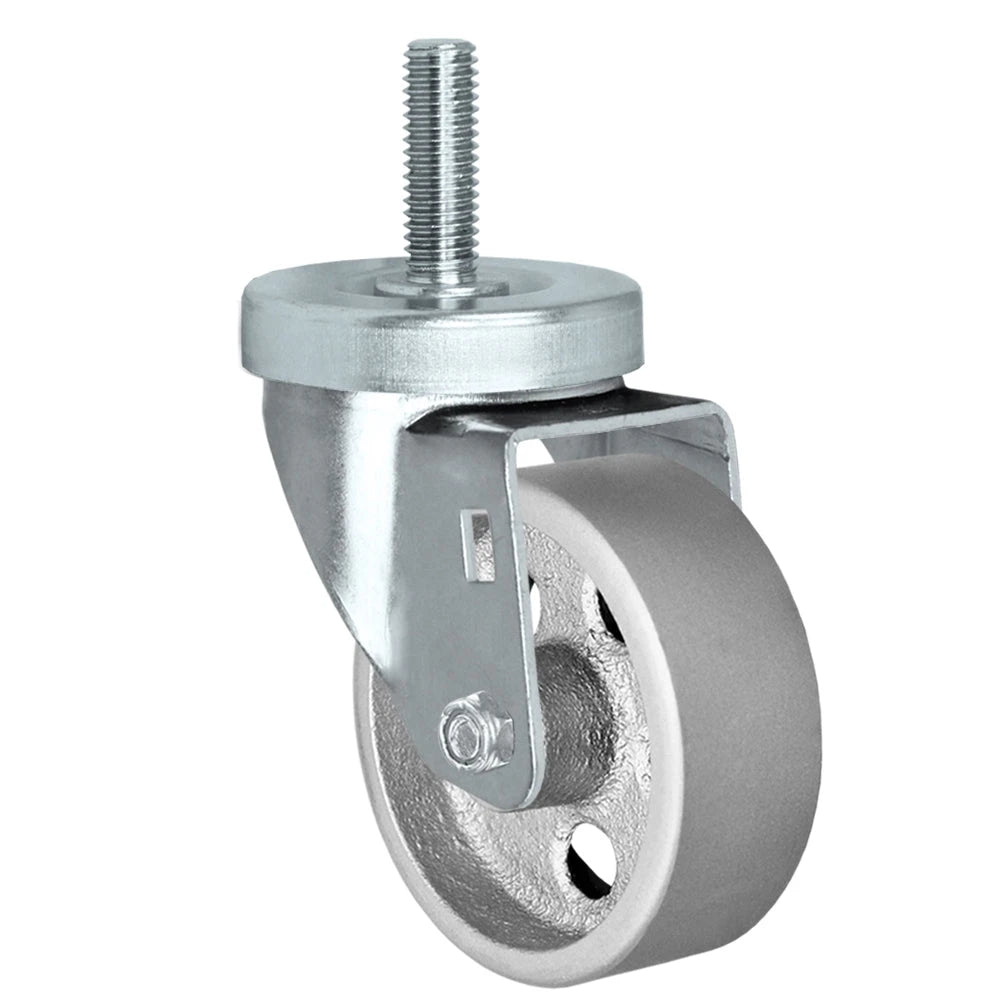

Semi-steel		3 and 4 in	350 lb	-45°F to 800°F	rough floors, heat and heavy loads

Ratings are for single casters of Durastar 24 series casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated

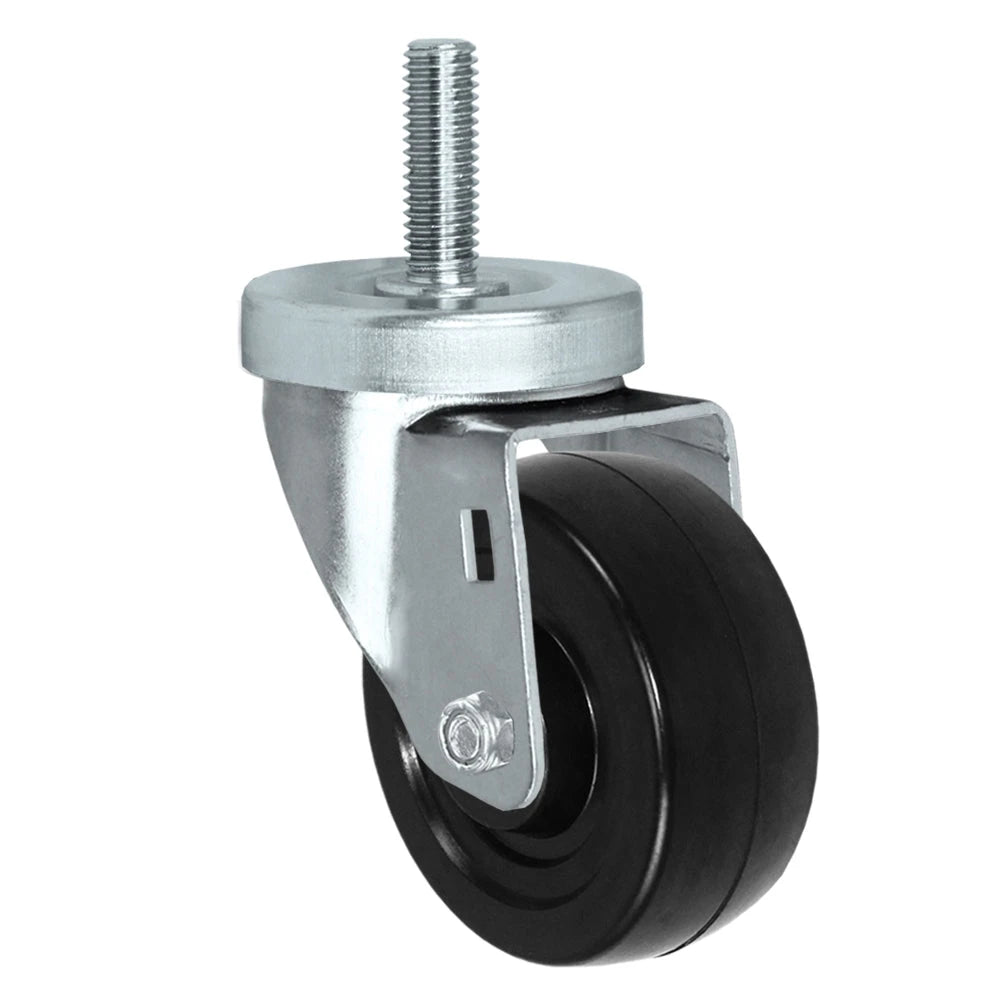

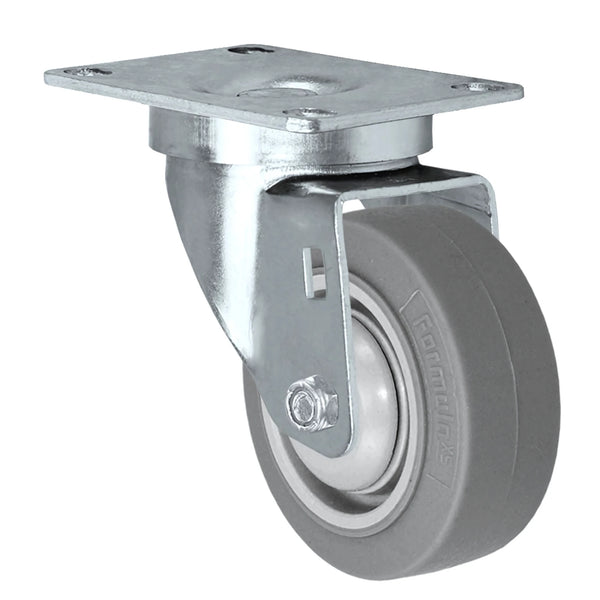

3 x 1-1/4 in	rubber, polyurethane and phenolic	175 to 350 lb
3 x 1-13/16 in	polyolefin	250 lb

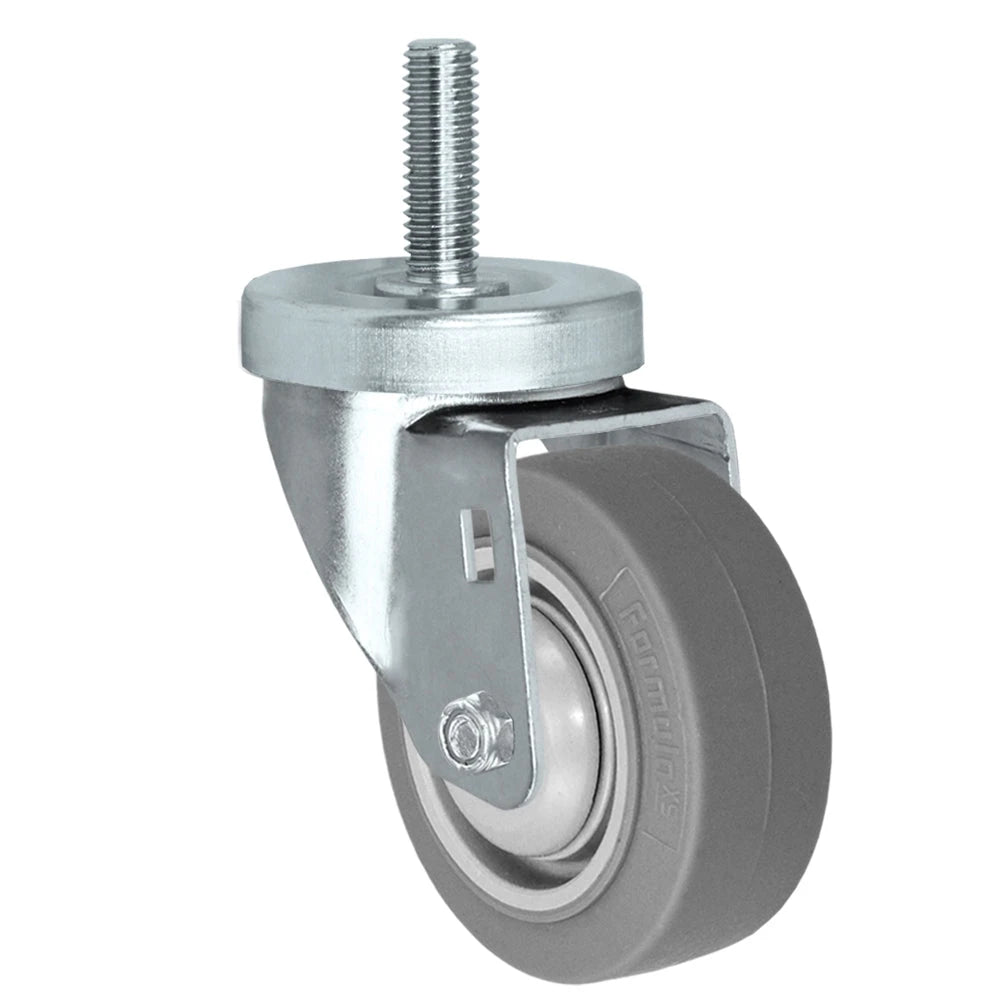

3-1/2 x 1-1/4 in	polyurethane, rubber and phenolic	230 to 350 lb
4 x 1-1/4 in	rubber, polyurethane and phenolic	220 to 350 lb

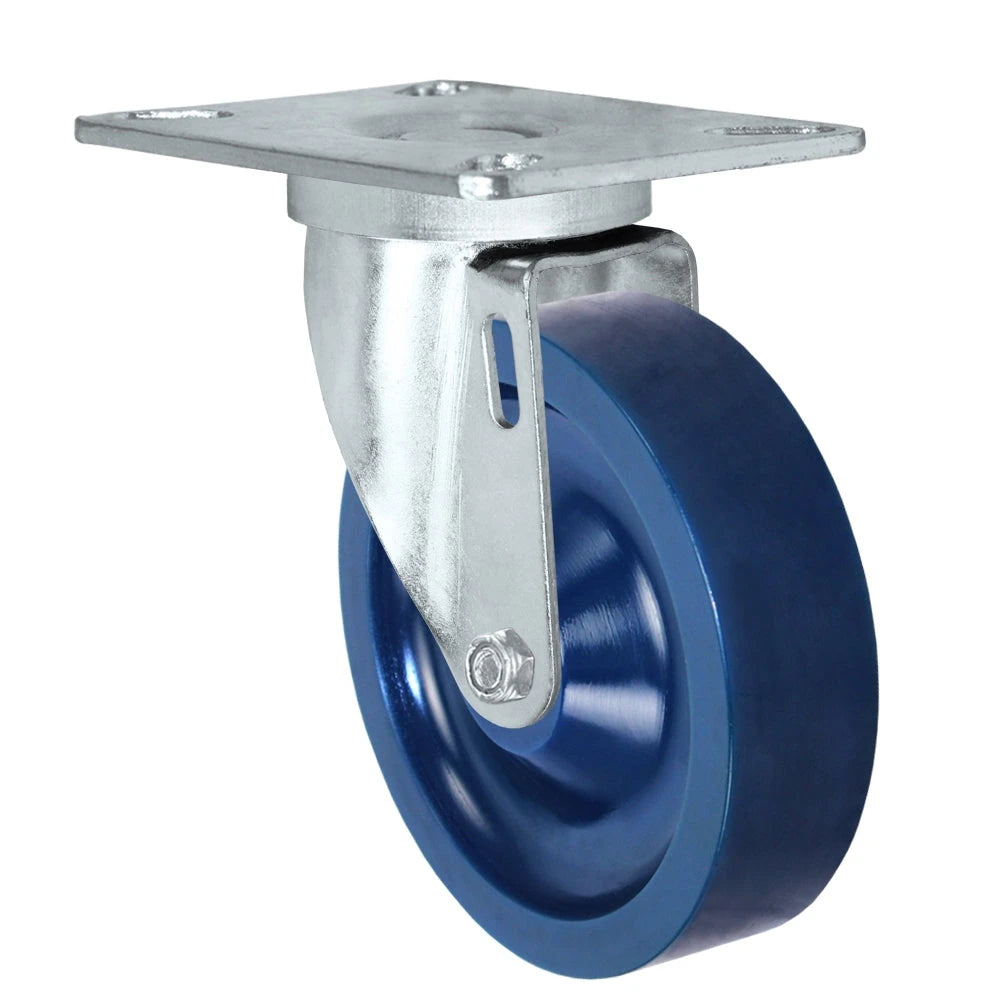

5 x 1-1/4 in	rubber, polyurethane and phenolic	250 to 350 lb
6 x 1-1/4 in	polyurethane	350 lb

Choosing Durastar 24 series casters

Load: plan on three casters carrying a four-caster cart [S2]; Durastar 24 series casters rated 350 lb each then carry about 1,050 lb.
Mount: most Durastar 24 series casters use a 2-3/8 x 3-5/8 in top plate; 3-1/8 x 4-1/8 in plates are listed too; check the bolt spacing on your frame against the plate size.
Floor: on Durastar 24 series casters, rubber and polyurethane are kinder to tile and finished floors; phenolic, polyolefin, nylon and semi-steel roll easier under heavy loads on smooth concrete.
Rig: swivel and rigid Durastar 24 series casters are listed.
Heat: among Durastar 24 series casters, the highest listed range is -45°F to 800°F on semi-steel; check the temperature field on each listing before oven or hot-room use.

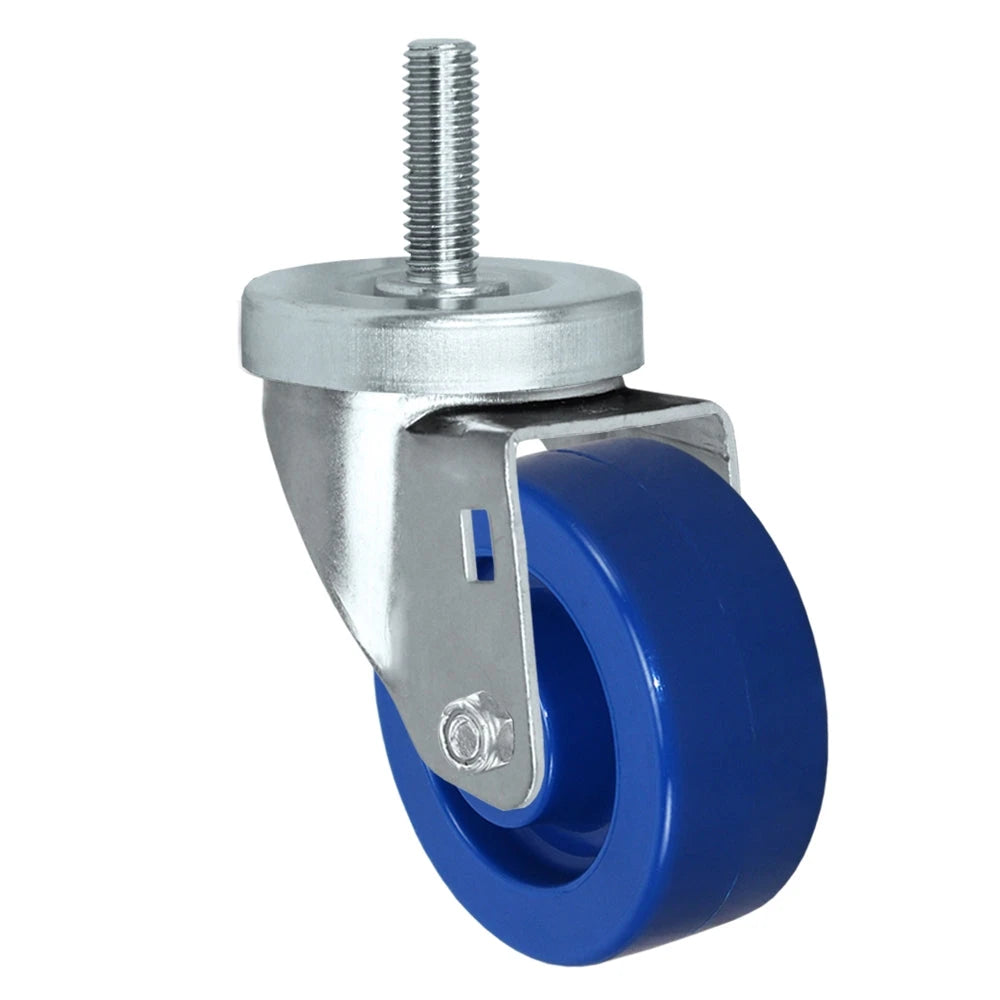

Related to Durastar 24 series casters: 5 x 1-1/4 in polyurethane casters and threaded stem casters.

Durastar 24 series casters questions

How much weight can Durastar 24 series casters carry?

Single Durastar 24 series casters are rated 175 to 350 lb; most fall between 250 and 350 lb.

What top plate do Durastar 24 series casters use?

Most Durastar 24 series casters use 2-3/8 x 3-5/8 in. Other plates on Durastar 24 series casters: 3-1/8 x 4-1/8 in.

What wheel material is most common on Durastar 24 series casters?

Rubber leads on Durastar 24 series casters, rated 175 to 325 lb per caster. Among Durastar 24 series casters, polyurethane is next at 250 to 350 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
