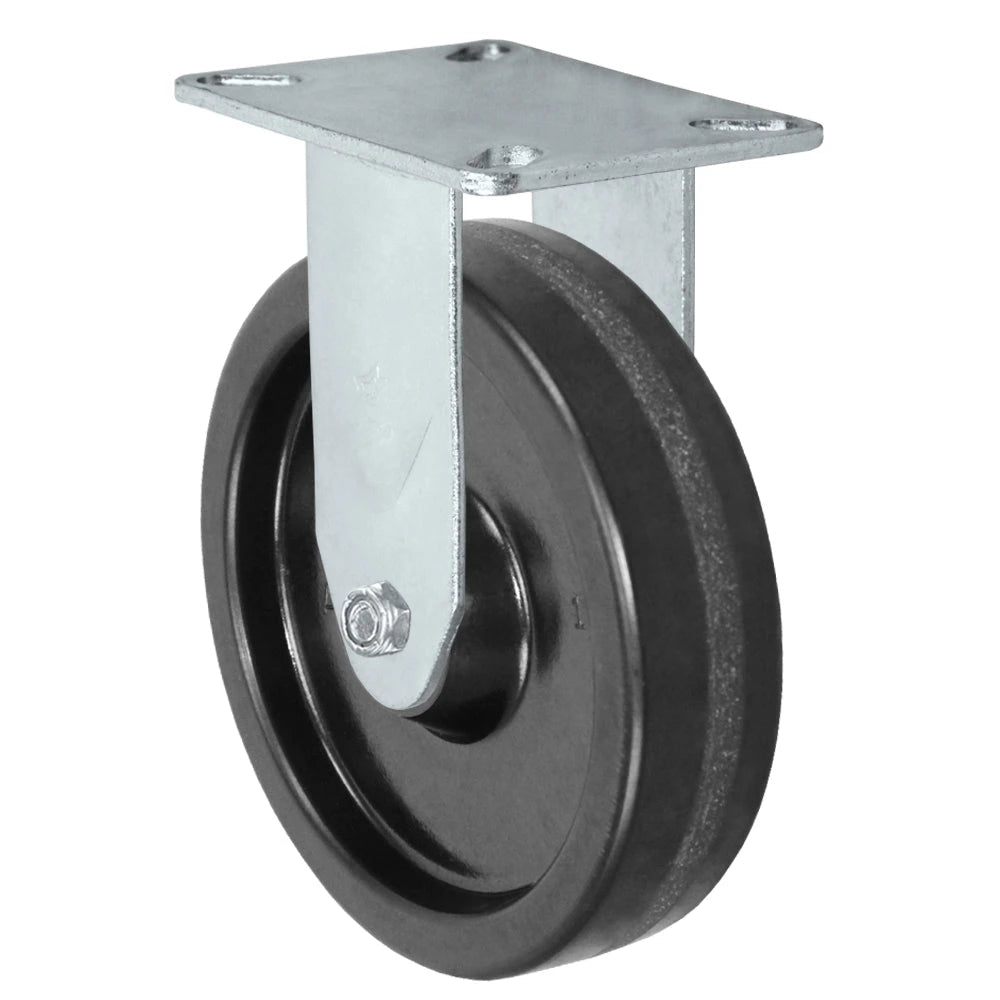

The Durastar Light Medium Duty 24 Series caster with a 5" x 1-1/4" Phenolic wheel offers exceptional performance and durability for various industrial and commercial applications. With a robust 350 lb load capacity and customizable top plate options, this rigid caster is engineered to meet the demands of light to medium-duty environments while providing smooth and reliable mobility.
The Phenolic wheel offers excellent resistance to impact, chemicals, and high temperatures, ensuring long-lasting performance in challenging industrial conditions. Its durability is further enhanced by the caster's zinc-plated finish, providing protection against rust and corrosion. The smooth operation reduces noise levels, enhancing the overall user experience.
This versatile caster excels in numerous settings, including:
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Light Medium Duty 24 Series caster with a 5" x 1-1/4" Phenolic wheel represents the pinnacle of mobility solutions for various industrial and commercial applications. This versatile caster combines durability, efficiency, and floor protection, making it an excellent choice for businesses seeking reliable equipment movement in diverse environments.
The 24 Series with phenolic wheels excels in a wide range of industries and applications, including:
Durastar's commitment to quality and innovation ensures that the 24 Series casters meet rigorous performance standards. The combination of durability, smooth operation, and versatility makes these casters an excellent choice for businesses seeking reliable mobility solutions. With its phenolic wheel, this caster offers the perfect balance of load-bearing capacity, floor protection, and heat resistance, making it ideal for a wide range of industrial and commercial applications.
This 5" x 1-1/4" Phenolic Rigid Caster – 350 lb is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 1-1/4" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

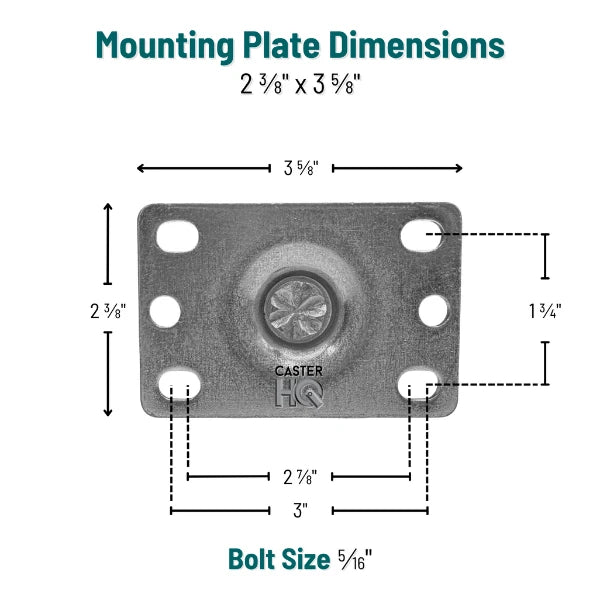

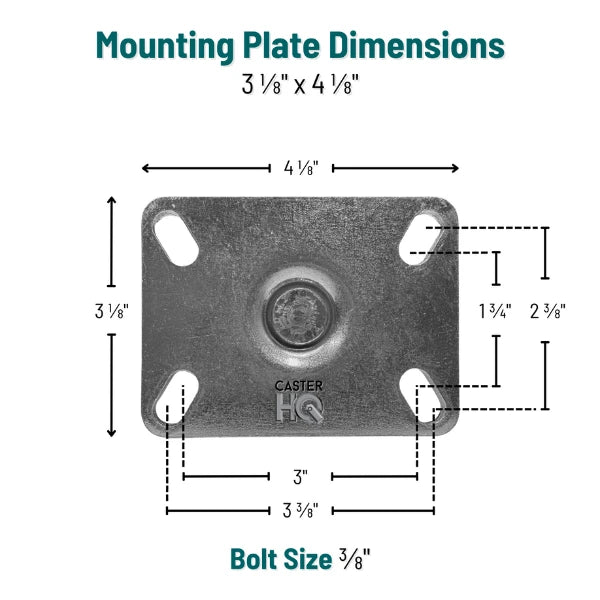

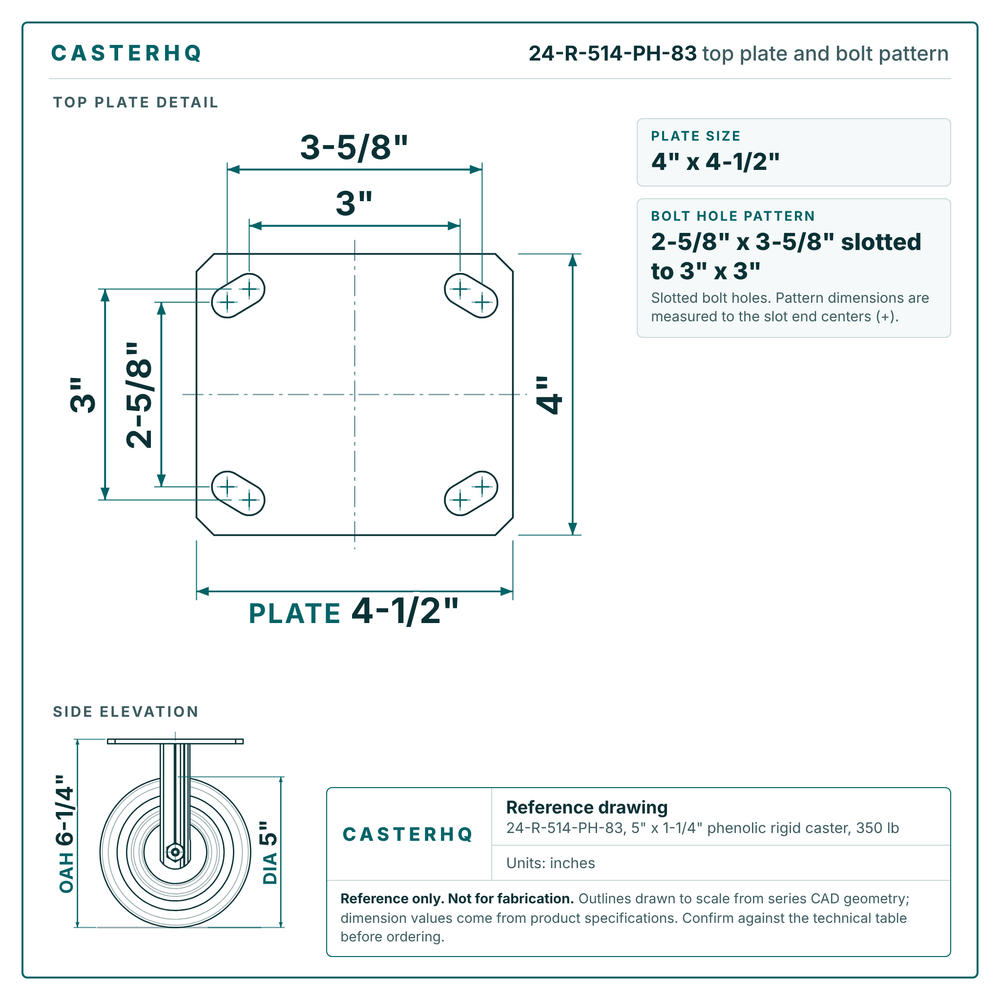

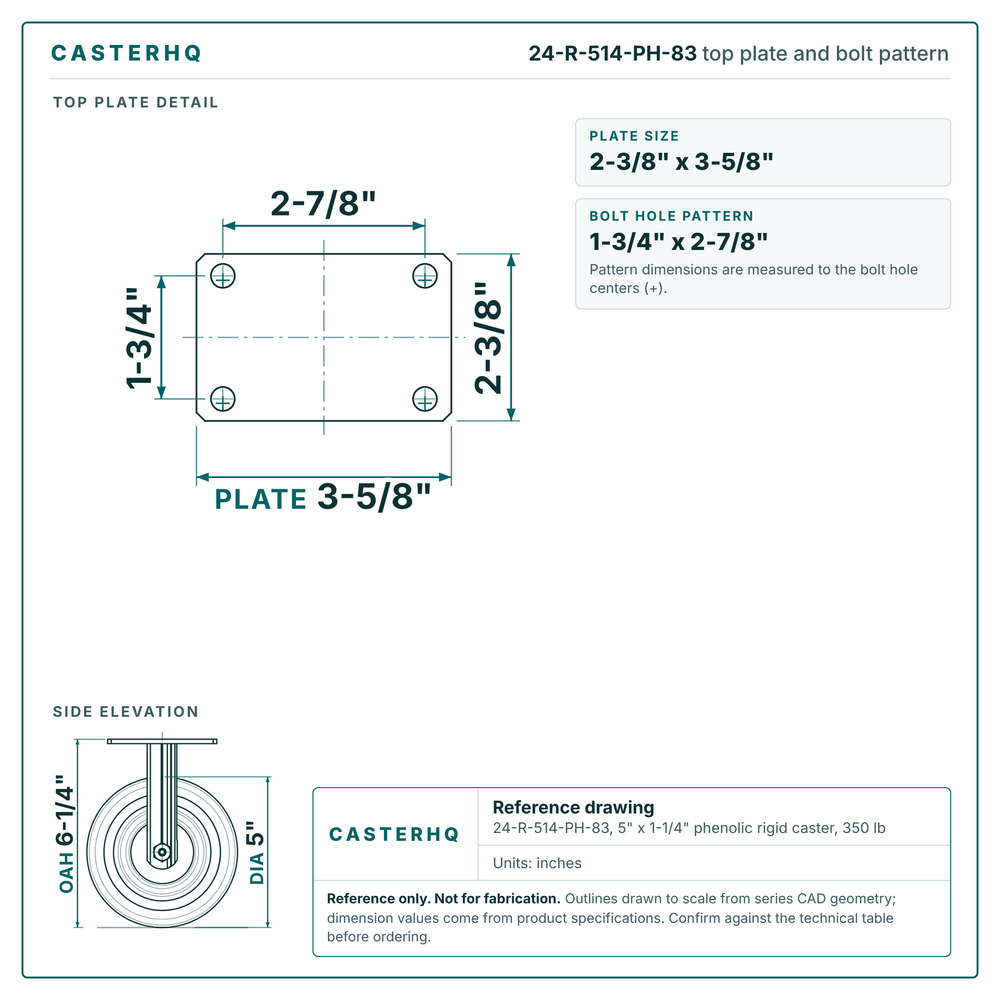

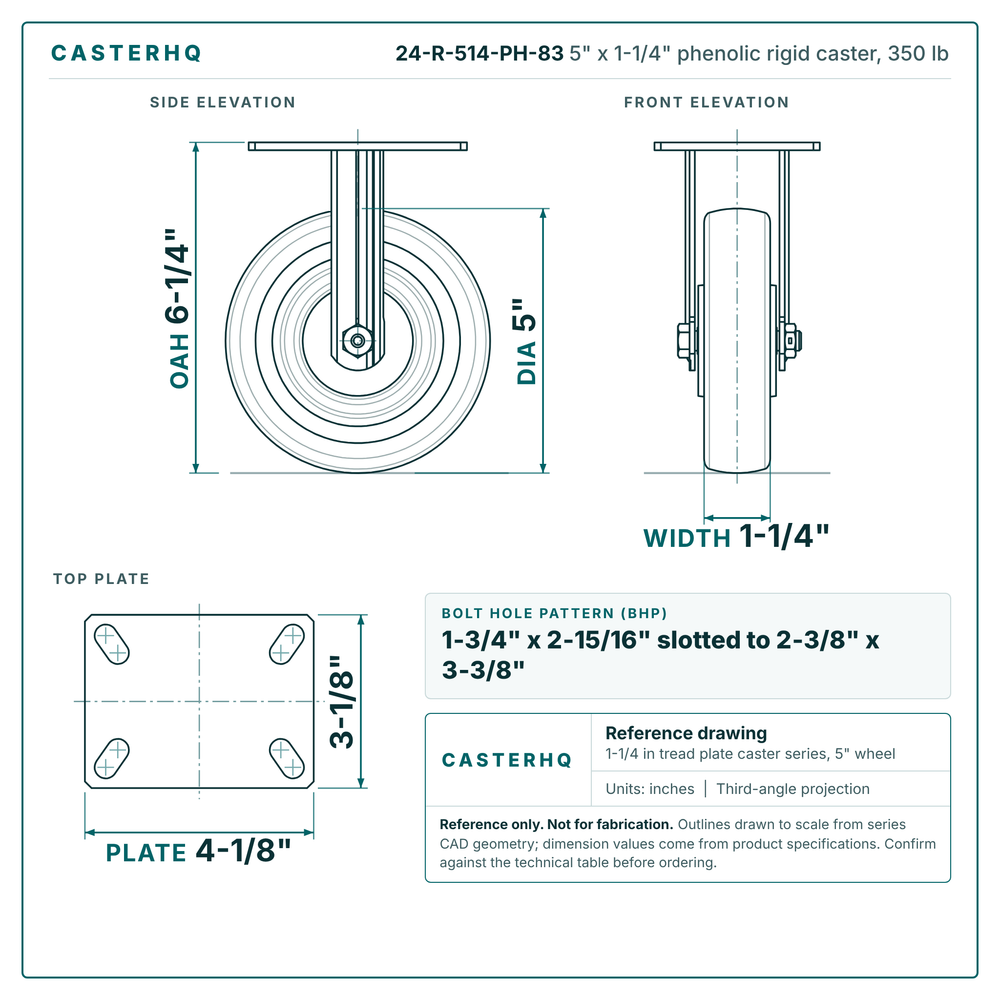

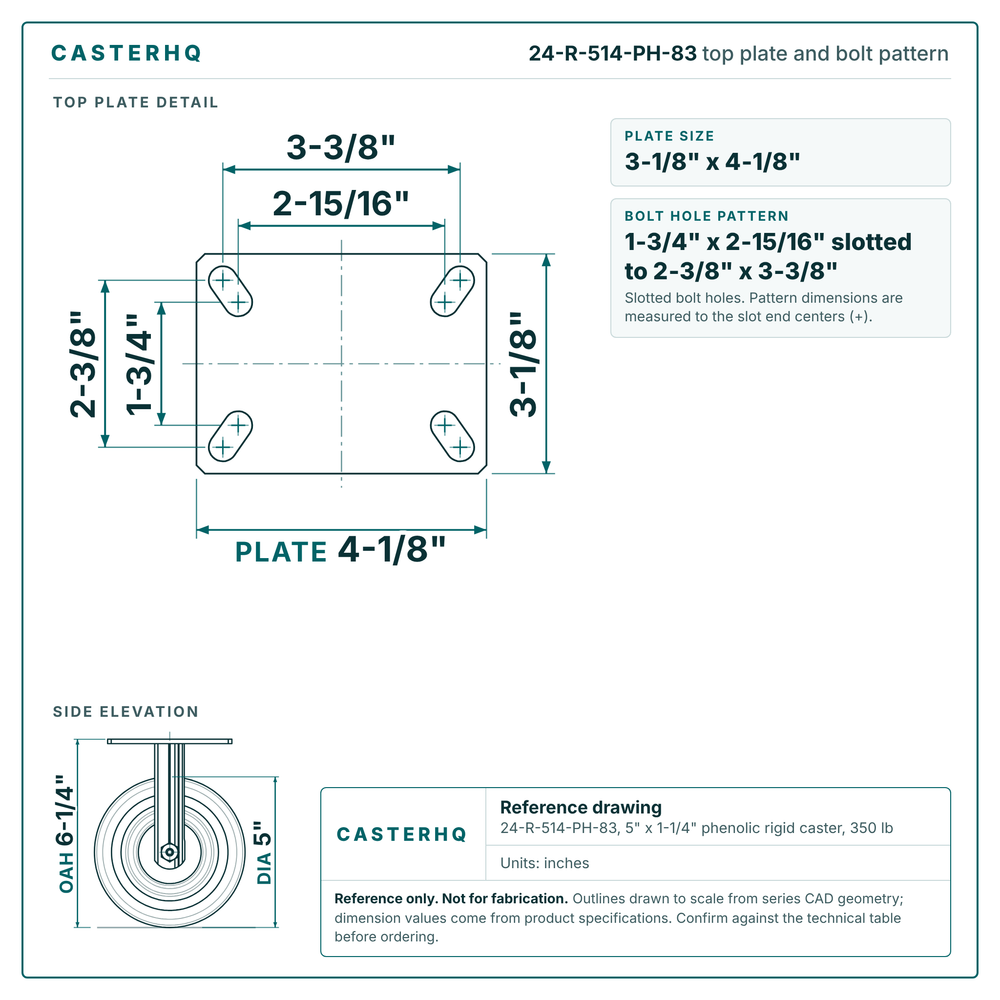

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$31.00
| Identification | |
| Brand | Durastar |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 6-1/4" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 350 lbs |
| Temp Range | Up to 250°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
5" x 1-1/4" Phenolic Swivel Caster – 350 lb | 3-1/8" x 4-1/8" Plate | CasterHQ
5" x 1-1/4" · 350 lbs
$20
5" x 1.25" Polyurethane Rigid Caster – 350 lb | 2-3/8" x 3-5/8" Plate | CasterHQ
5" x 1-1/4" · 350 lbs
$18
5" x 1.25" Polyurethane Swivel Caster – 350 lb | 2-3/8" x 3-5/8" Plate | CasterHQ
5" x 1-1/4" · 350 lbs
$23
View all 5′ x 1-1/4′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 325 lbsLighter duty | 5" × 1-1/4"Polyurethane | Swivel | 6-1/4" | $23.00 | View → | |
| 340 lbsLighter duty | 5" × 1-1/4"Polyurethane | Rigid | 6-1/4" | $18.00 | View → | |
| 350 lbs | 5" × 1-1/4"Phenolic | Rigid | 6-1/4" | $31.00 | Viewing | |
| 350 lbsSame capacity | 5" × 1-1/4"Cast Iron | Swivel | 6-1/4" | $20.00 | View → | |

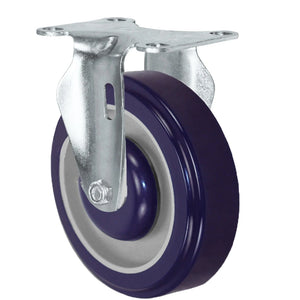

| 350 lbsSame capacity | 5" × 1-1/4"Polyurethane | Rigid | 6-1/4" | $18.00 | View → |
