5" x 1-1/4" Swivel Caster | Red Polyurethane on Polyolefin Core Wheel | 325 lbs Capacity | Plate Size: 3-1/8" x 4-1/8" CasterHQ

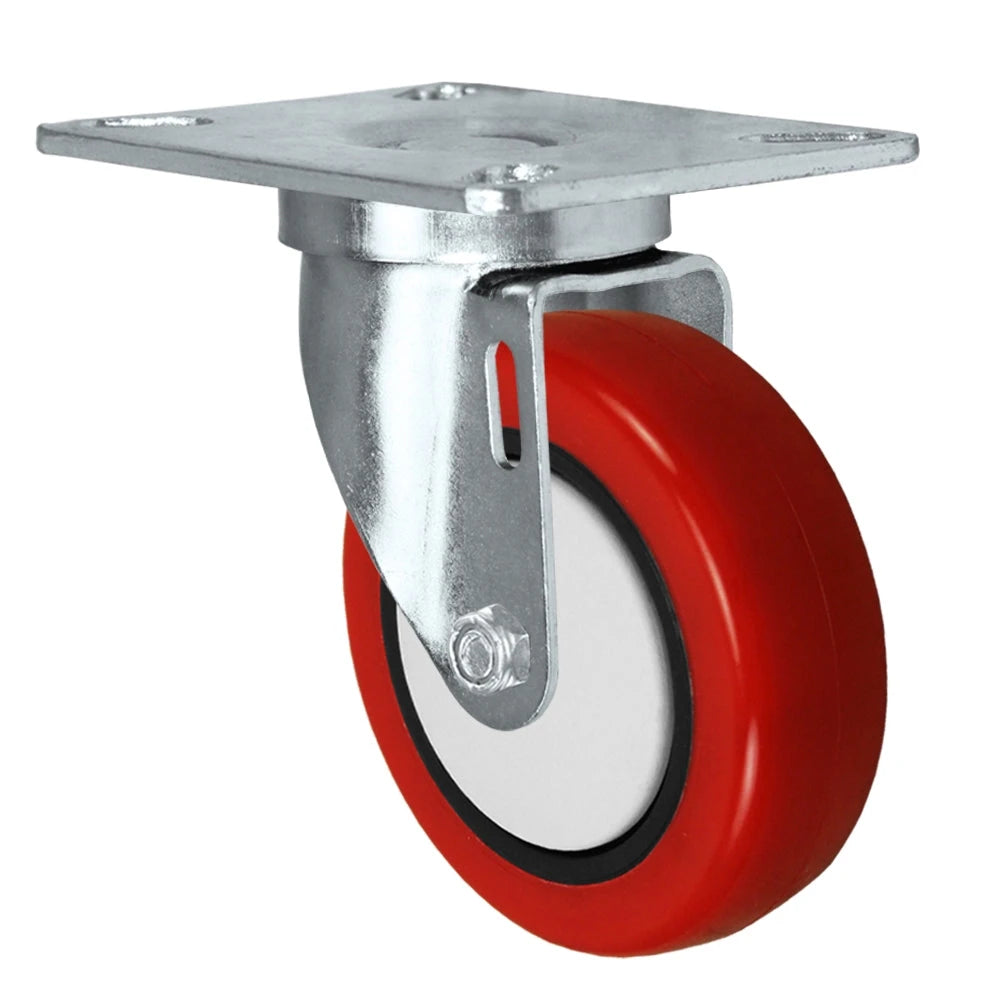

5" x 1-1/4" Swivel Caster | Red Polyurethane on Polyolefin Core Wheel | 325 lbs Capacity | Plate Size: 3-1/8" x 4-1/8"

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$23.00 USD - $35.50 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HQ1350S-PL2-PP-RED

Product Overview

5" x 1-1/4" Swivel Caster | Red Polyurethane on Polyolefin Core Wheel | 325 lbs Capacity | Plate Size: 3-1/8" x 4-1/8"

The HD-24 Series is a versatile and economic caster. This caster series is perfect for material handling, maintenance carts, bakeries, food service, stocking carts, dollies, and more! Combined with our Thermo Plastic Rubber wheel that has a soft 65 Shore A Durometer non marking high grade thermo plastic elastomer wheel mechanically bonded to a industrial polyolefin core. Thermo Plastic Rubber wheels are resistant to many solvents, oils, greases, water, even blood. Non Marking wheel, quiet and smooth operation. Great for factory floors, institutional, and food service environments. Thermo Plastic Elastomer Rubber wheels roll easily over obstacles and debris, cords, gaps, and more. The material actually absorbs shocks and vibrations for a very smooth ride.

Heavy Gauge cold rolled steel
Zinc Plate Finish
NSF Listed / Approve
Swivel Construction - Stamped steel. Swivel has double ball bearing with hardened raceways. Metal cover shields swivel bearings from dirt and dust.
Center Pin - 1/2" diameter steel rivet.
Axle - 3/8" diameter bolt with lock nut.
Wheel Bearing - Precision Sealed Ball Bearings
Wheels are Injected Molded Polyurethane
90-95 Shore A Polyurethane Tread Chemically and mechanically bonded to Polyolefin Core
High Capacity and Light Weight
Resists Oil, grease, water, and most solvents
Non-Marking, smooth rolling and quiet
Various wheel colors available

Questions? Please Call us @ 844-439-4335 or Contact Us Here

For quick online service please email us: sales@casterhq.com and a Caster Expert will help you answer any questions.

We ship Fast!!!
If ordered before 12-noon we ship all orders typically ship SAME DAY!
All orders received after 12-noon will ship the following business day

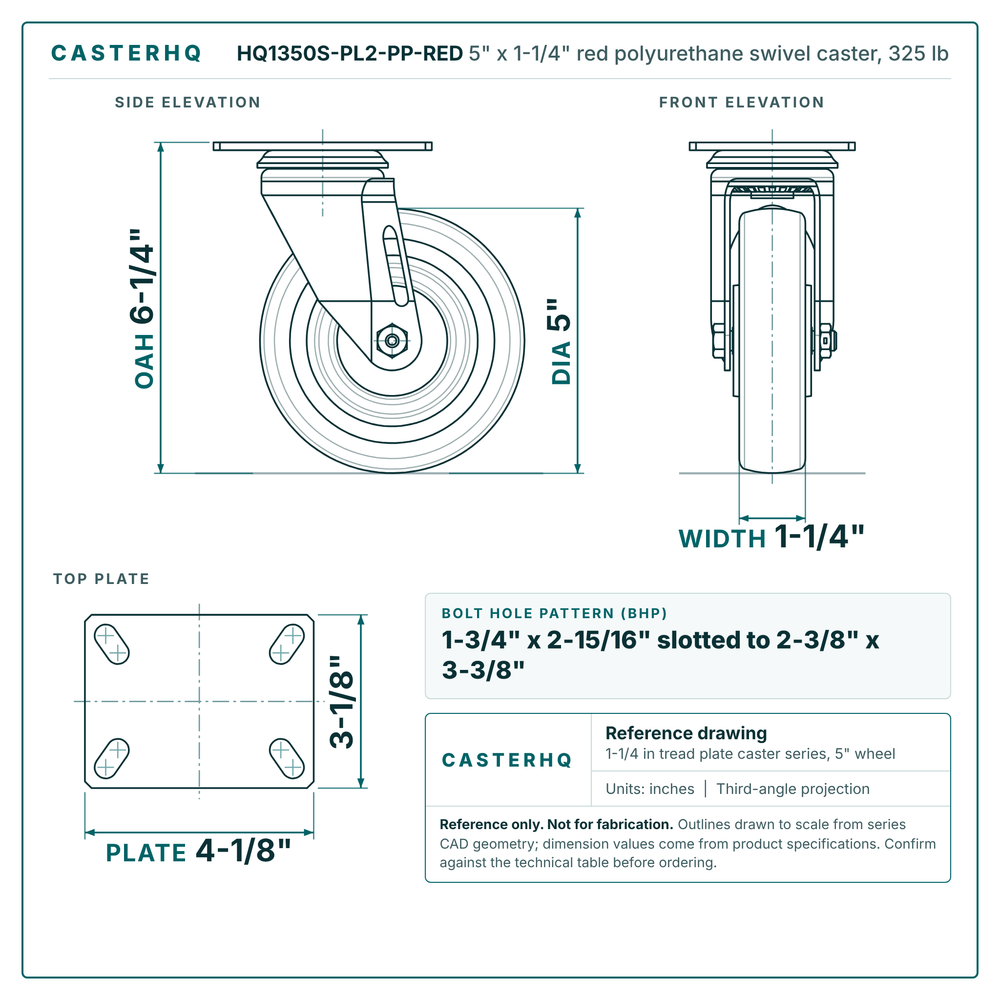

Technical Specs

Wheel Diameter: 5"
Tread Width: 1-1/4"
Wheel Type: Polyurethane on Polyolefin
Wheel Color: Red
Load Capacity: 325 lbs
Overall Height: 6-1/4"
Swivel Radius: 3-13/16"

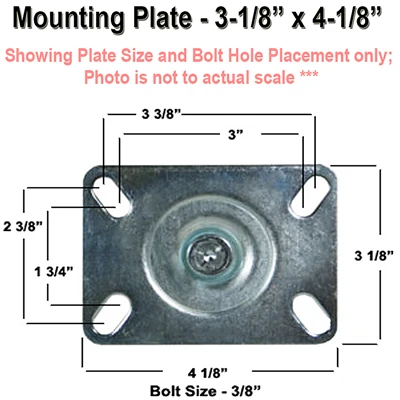

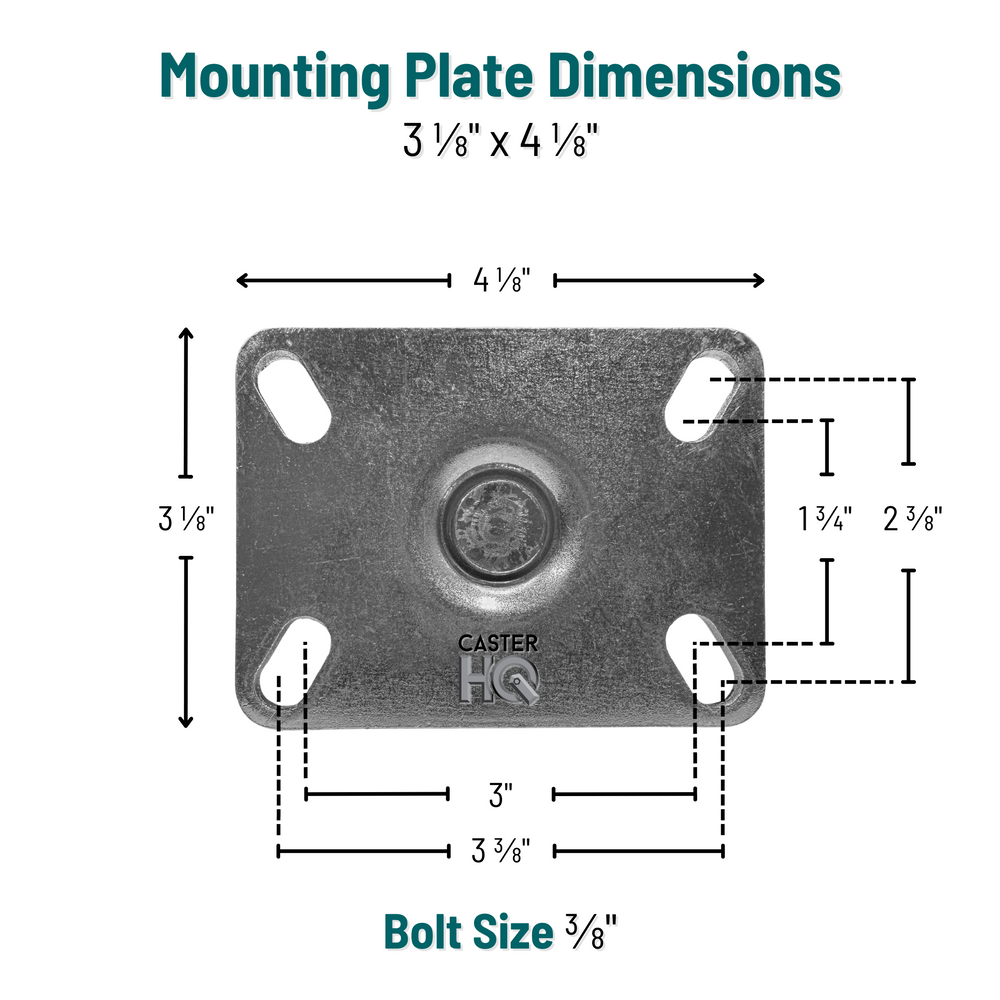

Mounting Plate Size: 3-1/8" x 4-1/8"

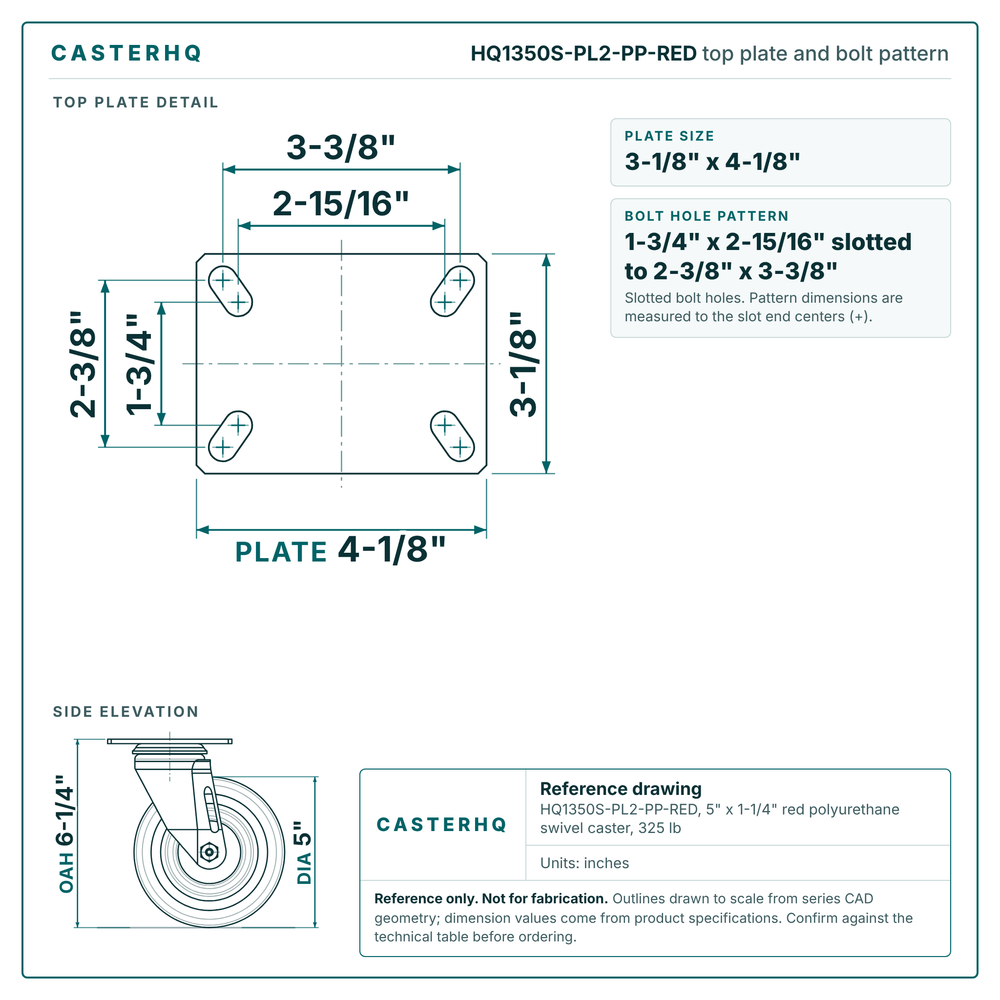

Bolt Hole Pattern: 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Attaching Mounting Bolt: 5/16" (Not Included)

Key Features

Wheel Diameter: 5"
Tread Width: 1-1/4"
Wheel Type: Polyurethane on Polyolefin
Wheel Color: Red
Load Capacity: 325 lbs
Overall Height: 6-1/4"
Swivel Radius: 3-13/16"
Mounting Plate Size: 3-1/8" x 4-1/8"
Bolt Hole Pattern: 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Attaching Mounting Bolt: 5/16" (Not Included)
