4 Inch Polyolefin Wheel Plate Casters

Diameter: 4 inTread: 2 inPlate: 4 x 4-1/2 inCapacity: 500 lb per caster
This page lists 4 inch polyolefin wheel plate casters. Polyolefin is the most common tread on these 4 inch polyolefin wheel plate casters, rated 500 lb per caster. Sets of 4 4 inch polyolefin wheel plate casters list 2,000 lb combined.
500 lbs
TieredPricing
MEDIUM DUTY 4"X 2" POLYOLEFIN WHEEL - SWIVEL CASTER 500lbs Capacity CasterHQ
In Stock · Same/Next Day
4" x 2" Polyolefin Swivel Caster 4" x 4-1/2" Top Plate – 500 lb
Part # HQ2040S-PL1-HPR
from $23.00
Volume pricing available
PolyolefinPlate
Load rating
500 lbs
Size4" x 2"
Capacity500 lbs
WheelPolyolefin
MountPlate 4" x 4-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range 40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
MEDIUM DUTY 4"X 2" POLYOLEFIN WHEEL - SWIVEL CASTER 500 LBS CAPACITY Polyolefin Caster...
Shop Product
2000 lbs
TieredPricing
MEDIUM DUTY 4"X 2" POLYOLEFIN WHEEL - SWIVEL CASTER SET OF 4 - 2,000 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
4" x 2" Polyolefin Swivel Caster · 2,000 lb set of 4
Part # HQ2040S-PL1-HPR-4S
from $84.00
Volume pricing available
Polyolefin
Load rating
2000 lbs
Size4" x 2"
Capacity2000 lbs
WheelPolyolefin
Mount—
TypeSwivel
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range 40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Polyolefin Caster Wheels are injection molded from a blend of thermoplastic polymers forming a...
Shop Product
2000 lbs
TieredPricing

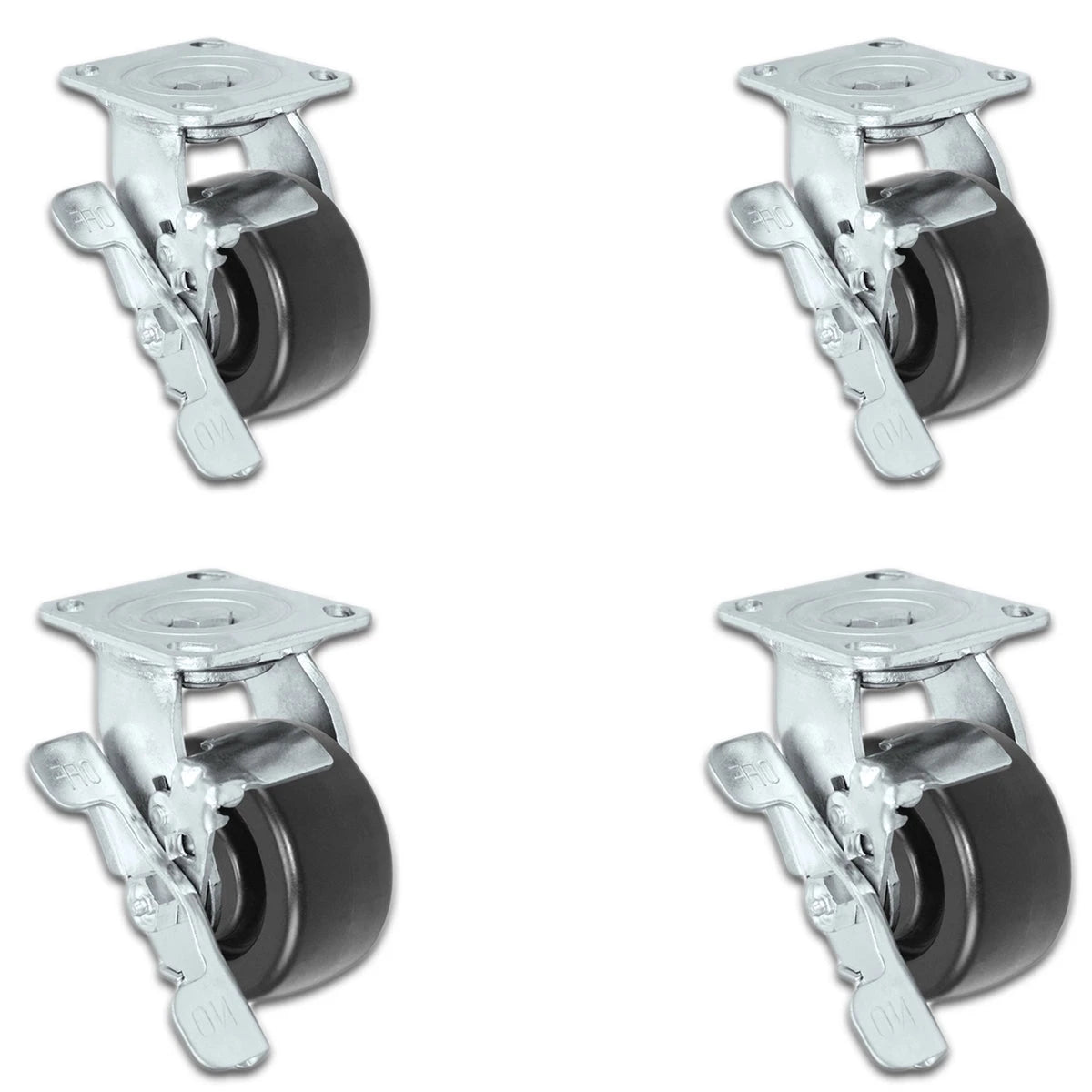

MEDIUM DUTY 4"X 2" POLYOLEFIN WHEEL - SWIVEL CASTER WITH BRAKES SET OF 4 - 2,000 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
4" x 2" Polyolefin Swivel Caster with Brake · 2,000 lb set of 4
Part # HQ2040S-PL1-HPR-4SB
from $109.00
Volume pricing available
Polyolefin
Load rating
2000 lbs
Size4" x 2"
Capacity2000 lbs
WheelPolyolefin
Mount—
TypeSwivel with Brake · Side Lock Brake
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range 40°F to 180°F
Rig Type Swivel with Brake
Brake Side Lock Brake
Frame Zinc Plated Steel
Polyolefin Caster Wheels are injection molded from a blend of thermoplastic polymers forming a...
Shop Product
2000 lbs
TieredPricing

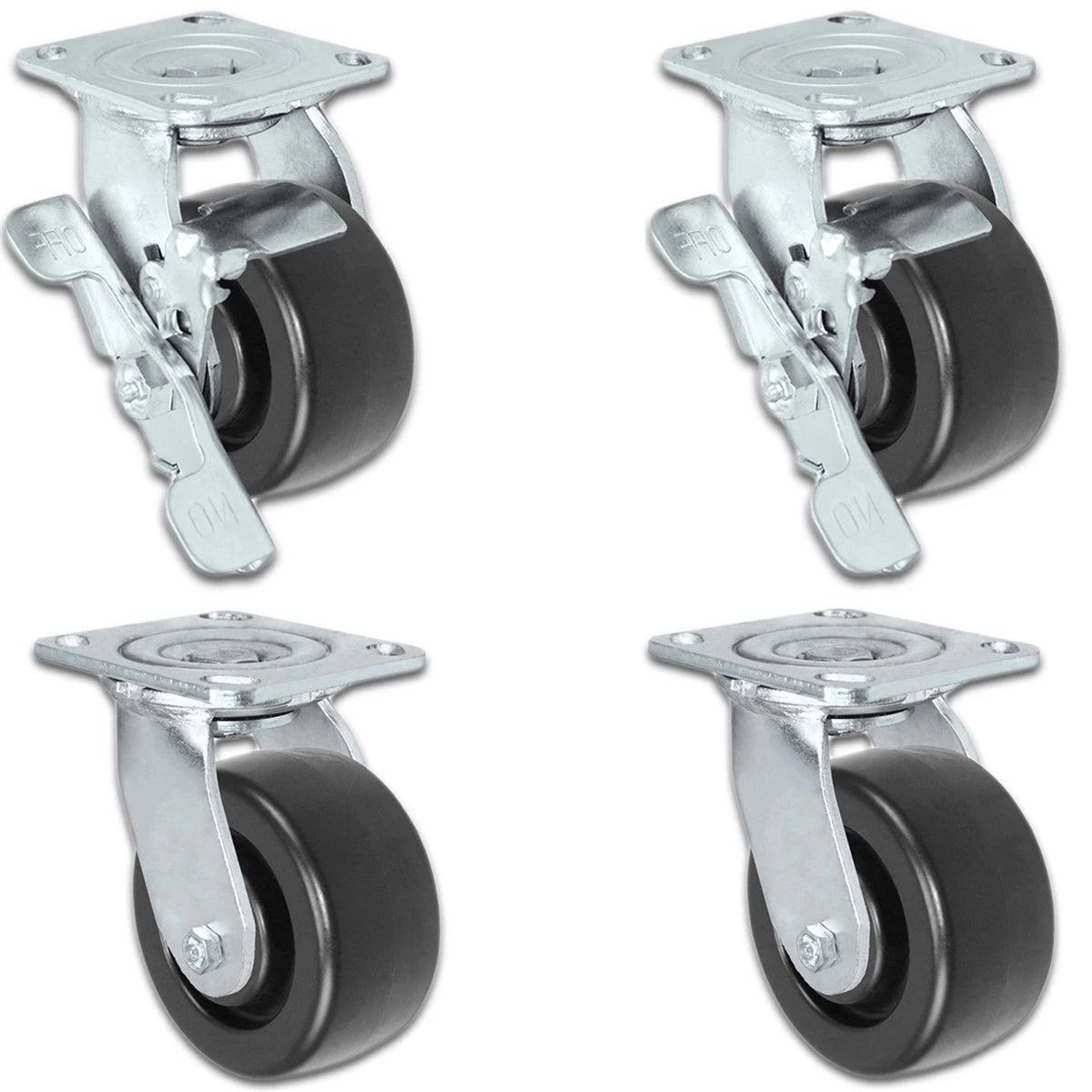

MEDIUM DUTY 4"X 2" POLYOLEFIN WHEEL - 2 SWIVEL CASTERS & 2 LOCKING CASTERS SET OF 4 - 2,000 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
4" x 2" Polyolefin Swivel & Locking Caster Set · 2,000 lb set of 4
Part # HQ2040S-PL1-HPR-2SB2S
from $97.00
Volume pricing available
Polyolefin
Load rating
2000 lbs
Size4" x 2"
Capacity2000 lbs
WheelPolyolefin
Mount—
TypeSwivel, Swivel with Brake · Side Lock Brake
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range 40°F to 180°F
Rig Type Swivel, Swivel with Brake
Brake Side Lock Brake
Frame Zinc Plated Steel
Polyolefin Caster Wheels are injection molded from a blend of thermoplastic polymers forming a...
Shop Product
500 lbs
TieredPricing

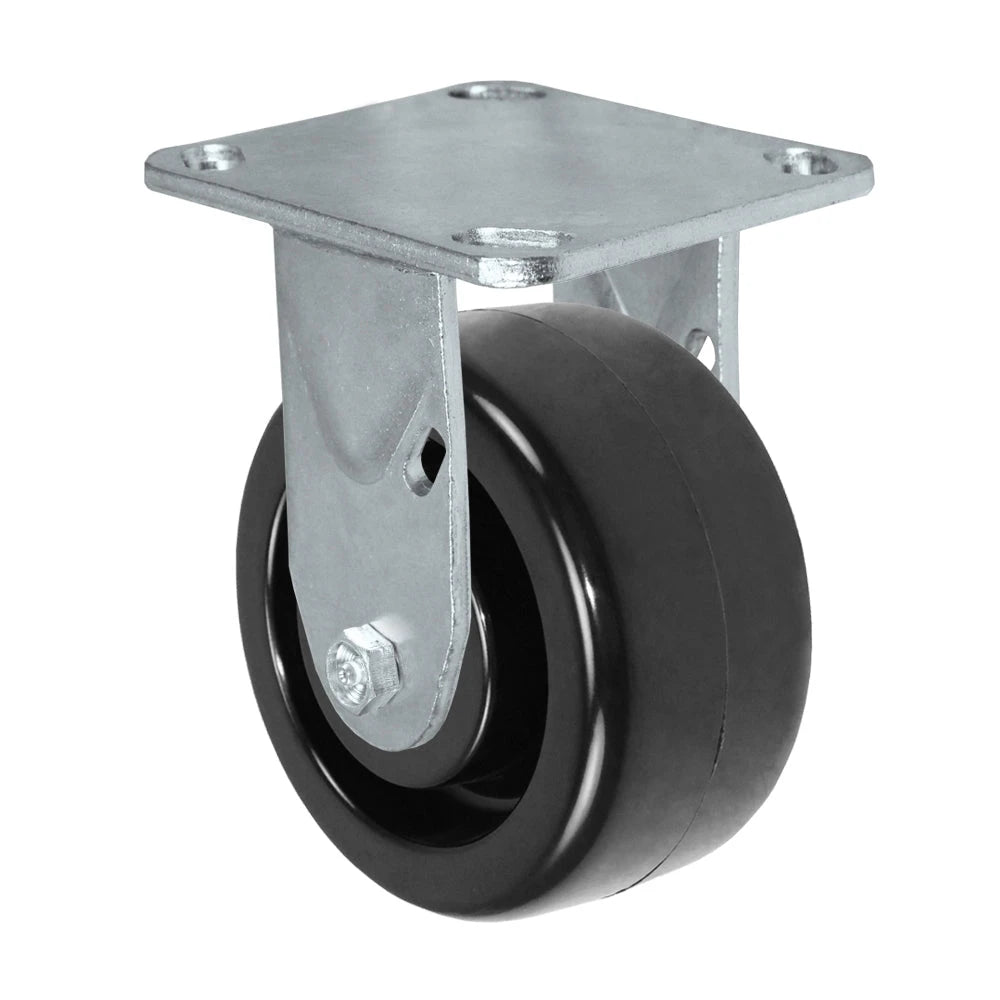

MEDIUM DUTY 4"X 2" POLYOLEFIN WHEEL - RIGID CASTER 500lbs Capacity CasterHQ
In Stock · Same/Next Day
4" x 2" Polyolefin Rigid Caster 4" x 4-1/2" Top Plate – 500 lb
Part # HQ2040R-PL1-HPR
from $21.00
Volume pricing available
PolyolefinPlate
Load rating
500 lbs
Size4" x 2"
Capacity500 lbs
WheelPolyolefin
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range 40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Polyolefin Caster Wheels are injection molded from a blend of thermoplastic polymers forming a...
Shop Product
2000 lbs
TieredPricing

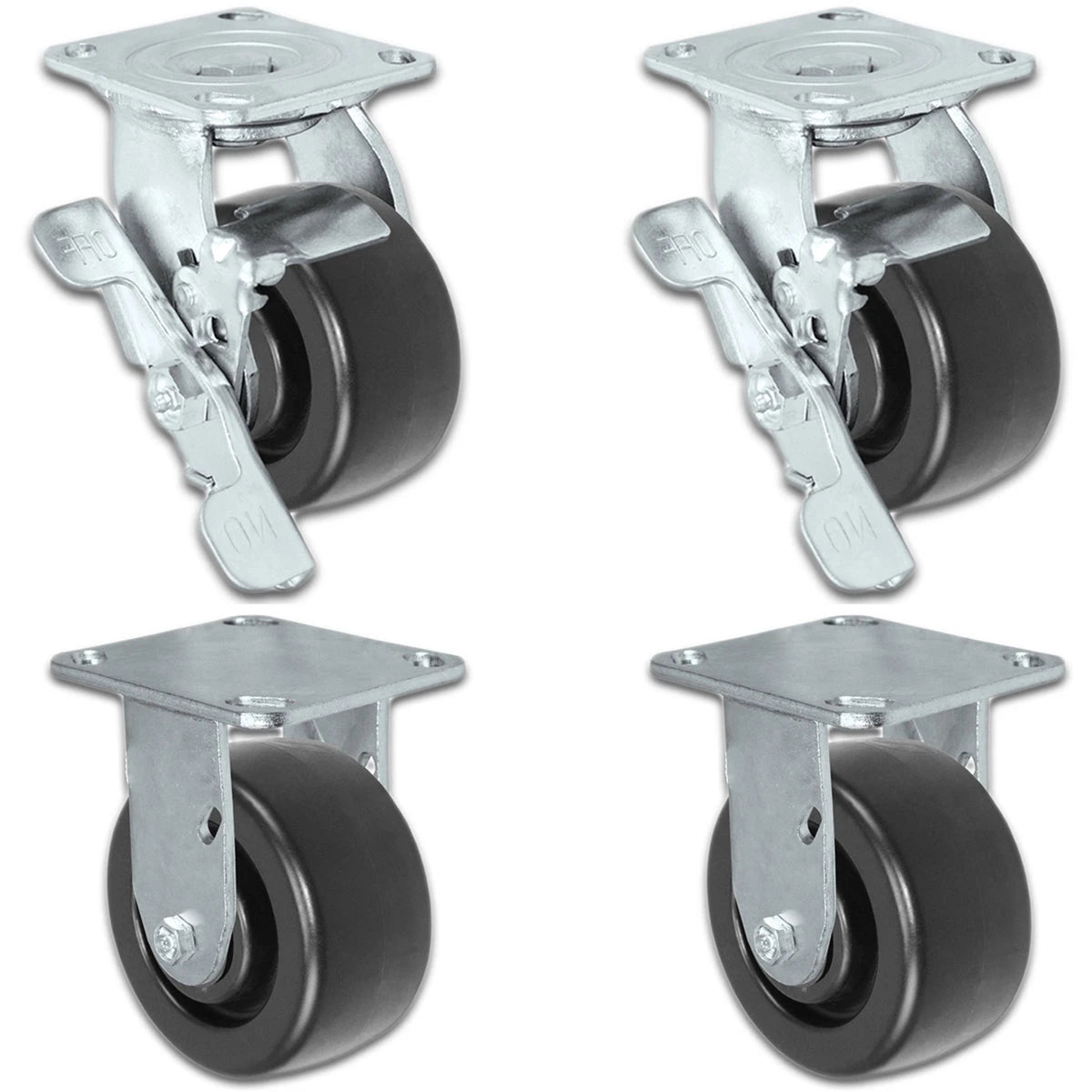

MEDIUM DUTY 4"X 2" POLYOLEFIN WHEEL - 2 LOCKING CASTERS & 2 RIGID CASTERS SET OF 4 - 2,000 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
4" x 2" Polyolefin Swivel & Rigid Caster Set · Model HQ2040S-PL1-HPR-2SB2R · 2,000 lb set of 4
Part # HQ2040S-PL1-HPR-2SB2R
from $94.00
Volume pricing available
Polyolefin
Load rating
2000 lbs
Size4" x 2"
Capacity2000 lbs
WheelPolyolefin
Mount—
Type—
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range 40°F to 180°F
Frame Zinc Plated Steel
Polyolefin Caster Wheels are injection molded from a blend of thermoplastic polymers forming a...
Shop Product
2000 lbs
TieredPricing

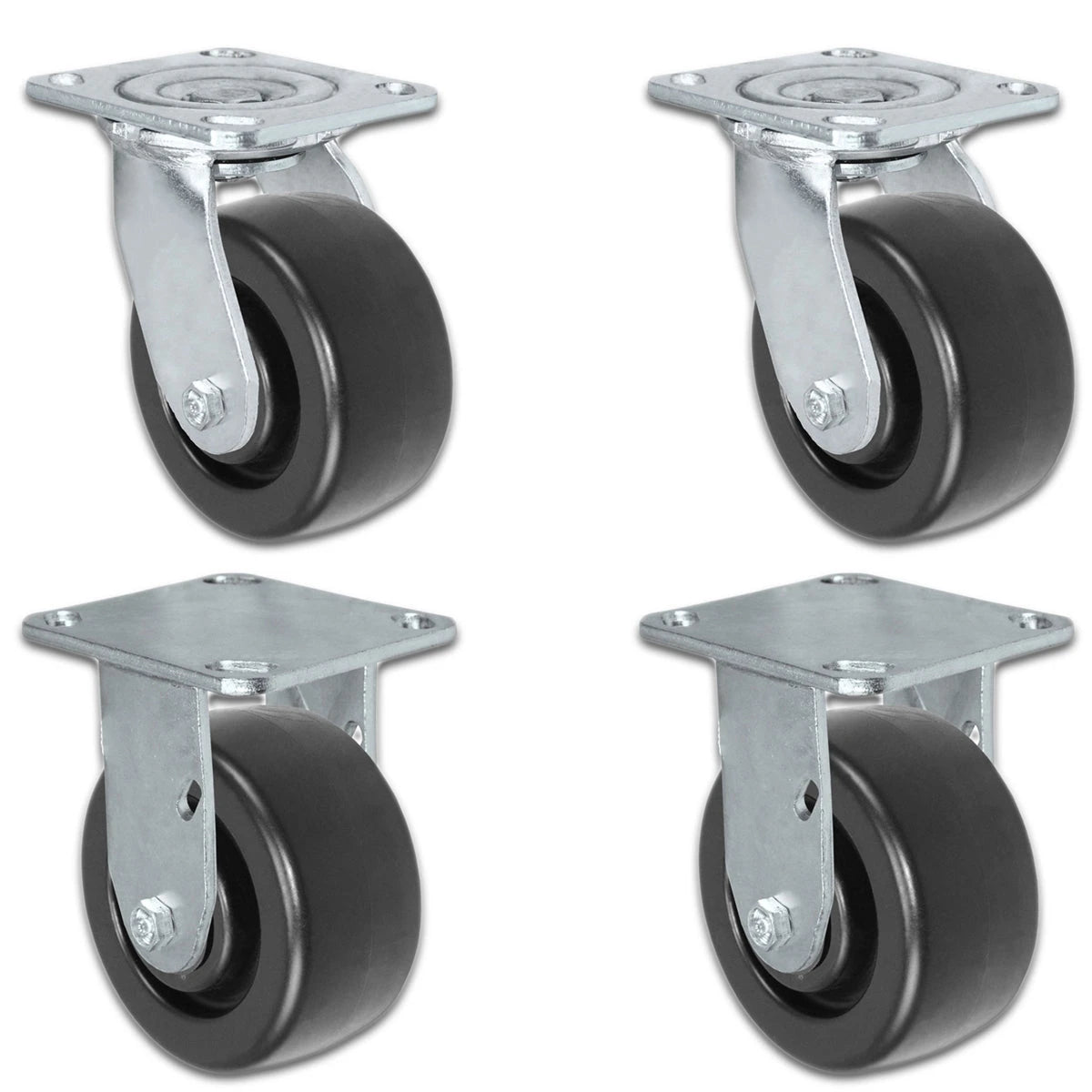

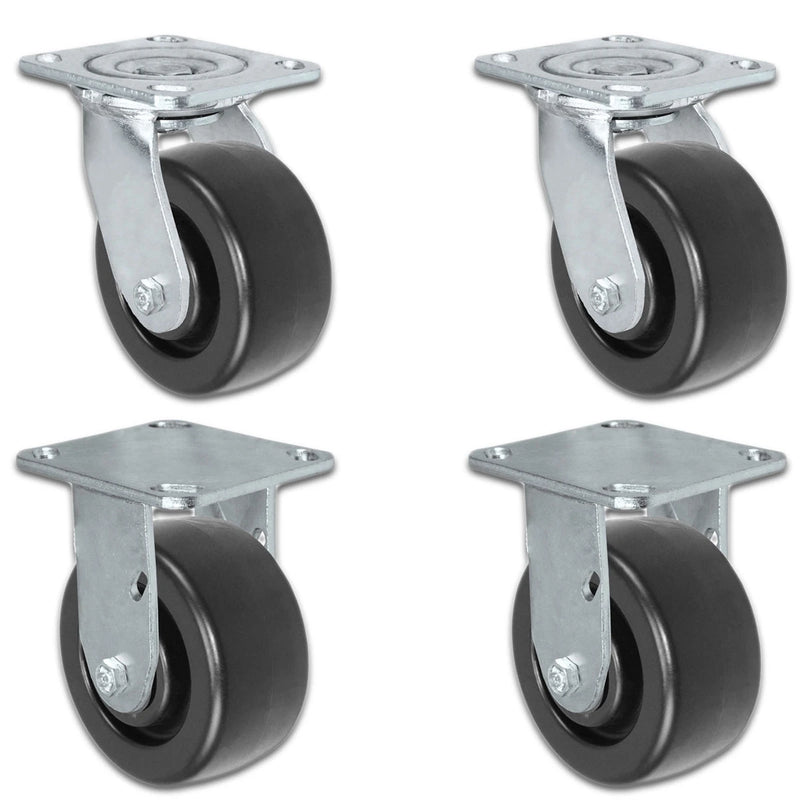

MEDIUM DUTY 4"X 2" POLYOLEFIN WHEEL - 2 Swivel & 2 Rigid CASTER SET OF 4 2,000 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
4" x 2" Polyolefin Swivel & Rigid Caster Set · Model HQ2040S-PL1-HPR-2S2R · 2,000 lb set of 4
Part # HQ2040S-PL1-HPR-2S2R
from $82.00
Volume pricing available
Polyolefin
Load rating
2000 lbs
Size4" x 2"
Capacity2000 lbs
WheelPolyolefin
Mount—
TypeSwivel, Rigid
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range 40°F to 180°F
Rig Type Swivel, Rigid
Brake No Brake
Frame Zinc Plated Steel
Polyolefin Caster Wheels are injection molded from a blend of thermoplastic polymers forming a...
Shop Product

4 inch polyolefin wheel plate casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Polyolefin 4 in 500 lb 40°F to 180°F wet and chemical areas, light to medium loads

Ratings are for single casters of 4 inch polyolefin wheel plate casters, from product fields [S1].

Choosing 4 inch polyolefin wheel plate casters

  1. Load: divide the loaded weight by three for a four-caster cart [S2]; at 500 lb each, 4 inch polyolefin wheel plate casters suit a loaded cart of about 1,500 lb.
  2. Mount: most 4 inch polyolefin wheel plate casters use a 4 x 4-1/2 in top plate; check the bolt spacing on your frame against the plate size.
  3. Floor: on 4 inch polyolefin wheel plate casters, polyolefin suits smooth concrete and heavy loads, but is loud and hard on tile and wood.
  4. Rig: swivel and rigid 4 inch polyolefin wheel plate casters are listed, with side lock brake options.

Related to 4 inch polyolefin wheel plate casters: industrial casters.

4 inch polyolefin wheel plate casters questions

How much weight can 4 inch polyolefin wheel plate casters carry?

Single 4 inch polyolefin wheel plate casters are rated 500 lb.

What top plate do 4 inch polyolefin wheel plate casters use?

Most 4 inch polyolefin wheel plate casters use 4 x 4-1/2 in.

What wheel material is most common on 4 inch polyolefin wheel plate casters?

Polyolefin leads on 4 inch polyolefin wheel plate casters, rated 500 lb per caster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
