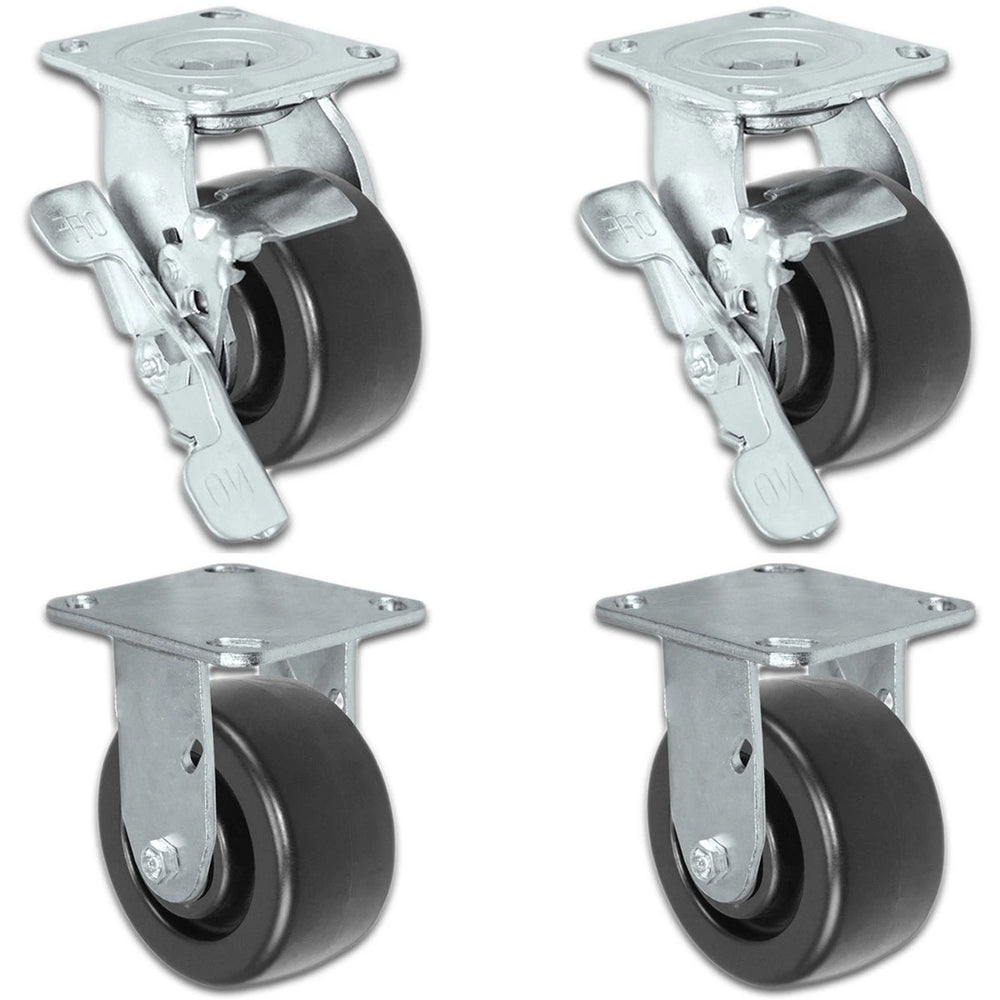

4"x2" Polyolefin Caster Set: 2,000 lbs | HQ2040S-PL1-HPR-2SB2R | CasterHQ

Wheel
4" x 2"
Capacity
2000 lbs
Overall Height
5-5/8"
Plate Size
4" x 4-1/2"
BHP
2-5/8" x 3-5/8" slotted to 3" x 3"
Bolt
3/8"
In Stock · Ships 1-2 Business Days
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview
Polyolefin Caster Wheels are injection molded from a blend of thermoplastic polymers forming a one piece solid sanitary design. These Polyolefin wheels, as with Nylon wheels, are especially suited for wet and corrosive applications. They are very resistant to most commonly encountered liquids. Polyolefin wheels have a lower capacity and a more limited temperature range than Nylon wheels with the exception of our Extra Heavy Duty Polyolefin wheels ( prefix RK ). In a cold dry environment, such as a refrigerated store room, Polyolefin wheels may become brittle. They should not be used in a freezer or a heat application above 180°F intermittent usage, such as a rack washer.
Key Features
CASTER FORK:
• Double ball raceway with 5/8” kingbolt
• Features wheels with 1-1/2” and 2” tread widths
• Large selections of wheels, bearings
and brake options
• Matching total-locking casters available
DT and FT series
• Grease fitting in raceway and axle for
maintenance
• Bright zinc finish
• Majority of this series and wheel types
are NSF listed



WHEELS:
• Solid injection molded polyolefin wheel construction.
• High shock load, impact & abrasion resistant.
• Economical & lightweight, yet offer high weight capacities.
• 100% washable; impervious to water, highly resistant to organic solvents, oil, grease, most chemicals, acids & cleaning solutions.
• Both white and black materials are non-marking.
• Several designs
• Durometer: 70 Shore D (+/-5).
• Temperature range: 40° F to 180° F.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Frequently Asked Questions

What is the load capacity of this wheel?+

This 4" x 2" Polyolefin Swivel & Rigid Caster Set · Model HQ2040S-PL1-HPR-2SB2R · 2,000 lb set of 4 is rated to 2000 lbs per wheel. Divide the total load across the number of wheels in your rig and keep working loads within about 75-80% of the rating for continuous use.

What wheel material is this, and where does it perform best?+

This is a Polyolefin wheel. Polyolefin is economical, lightweight, washable, and resists water, oils, and many chemicals while carrying solid loads on smooth floors.

What are the wheel dimensions and bore?+

4" diameter x 2" tread width. Verify your axle diameter and hub/bore length against your existing wheel before ordering.

Can this wheel be supplied in a caster rig?+

Yes. Most wheels can be paired with a swivel or rigid rig to build a complete caster. Tell us your mount and load and we will spec the rig - request it on our bulk pricing page.

What temperature range is it rated for?+

Rated for 40°F to 180°F. Operating outside the rated range can shorten wheel life and reduce capacity.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

4
4" x 2" Polyolefin Swivel & Rigid Caster Set · Model HQ2040S-PL1-HPR-2SB2R · 2,000 lb set of 4 | CasterHQ

$94.00

Technical Specifications

Specifications

Identification
Part Number / SKUHQ2040S-PL1-HPR-2SB2R
Core
Load Capacity2000 lbs
Wheel Diameter4"
Wheel Width2"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).5-5/8"
Mounting
Plate Size4" x 4-1/2"

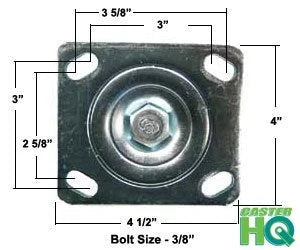

Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.2-5/8" x 3-5/8" slotted to 3" x 3"
Recommended Mounting Bolt3/8"
Wheel
Wheel MaterialPolyolefin
Construction
Frame / FinishZinc Plated Steel
Temperature Range40°F to 180°F
Reference Dimensions · Swivel w/ brake
CASTERHQ Interactive 3D
Series geometry
Loading 3D model…

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.

Download STEP · Swivel w/ brake AP214 · 624 KB All types (.zip)

Series geometry, reference only. Verify critical dims against the spec table.

Free for design use. Redistribution or resale prohibited.

OAH5-5/8"
Dia4"
Width2"
Plate4" x 4-1/2"
BHP2-5/8" x 3-5/8" slotted to 3" x 3"
View 2D drawingSide, front & top plate views
Side elevation
OAH 5-5/8"DIA 4"DIA 4"
Front elevation
WIDTH 2"
Top plate
4" 4"PLATE 4-1/2" 3-5/8" 2-5/8"SLOTTED TO 3" x 3"
BHP 2-5/8" x 3-5/8" slotted to 3" x 3"
CASTERHQ
Reference drawing2" tread plate caster series · 4" wheel
Units: inchesThird-angle projection
Reference only. Not for fabrication. Outlines drawn to scale from series CAD geometry; dimension values come from product specifications. Confirm against the technical table before ordering.
Overall Height5-5/8"
Wheel4" x 2"
Top Plate4" x 4-1/2"
Bolt Pattern2-5/8" x 3-5/8" slotted to 3" x 3"
Wheel MaterialPolyolefin
Illustrative series geometry for the 2" tread plate caster family. Dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 2000 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
Plate Size4" x 4-1/2"
Bolt Pattern2-5/8" x 3-5/8" slotted to 3" x 3"
Slotted holes fit multiple bolt patterns, ideal for retrofits
Replacing an existing caster? Match the bolt pattern first, then wheel size · more 4" x 4-1/2" plate casters →
Documentation
Spec sheet (PDF) 30-day pricing honored Caster selection guide Caster University Fleet & contract pricing Net 30 available
30-day returns · manufacturer warranty · spec support: 844-439-4335 (Mon–Fri 8–5 CST)
