470 Series

This collection holds 470 Series casters with semi steel, phenolic and rubber wheels, built for heavy equipment, dies, molds, and plant carts that move very heavy loads. Casters in this collection range from 750 to 3,500 lb per caster. Wheels in this category range from 6 up to 12 inches in diameter with a 3 in tread width. The collection includes swivel, rigid, and brake models. Kingpinless swivels hold up better under shock and repeat loads. Semi steel (gray iron) rolls with low effort and shrugs off debris. It is loud and can mark finished floors. Phenolic rolls easily on smooth floors and handles dry heat, oil, and grease, but it is not made for water or washdown. It suits warehouse carts, toolboxes, and tool carts, and it is loud on rough floors. Choose swivel casters when the cart must turn in place and rigid casters for straight travel. Semi steel aisle: semi steel casters. Wheel hub: replacement wheels.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

Albion 470 series casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Cast iron 6, 8, 10 and 12 in 2,800 to 3,500 lb Up to 800°F heat, chips and heavy loads on rough floors

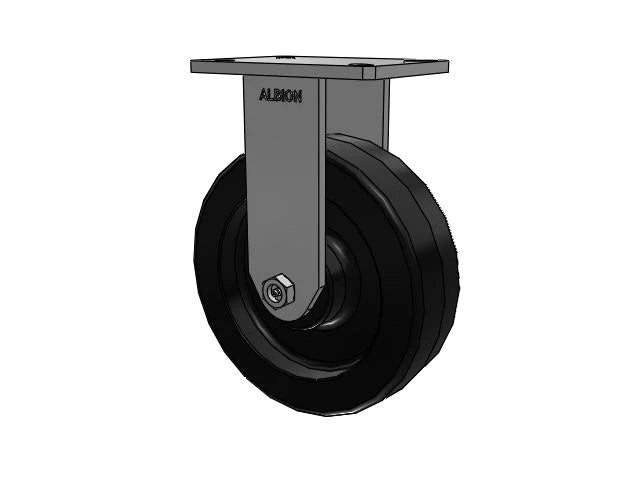

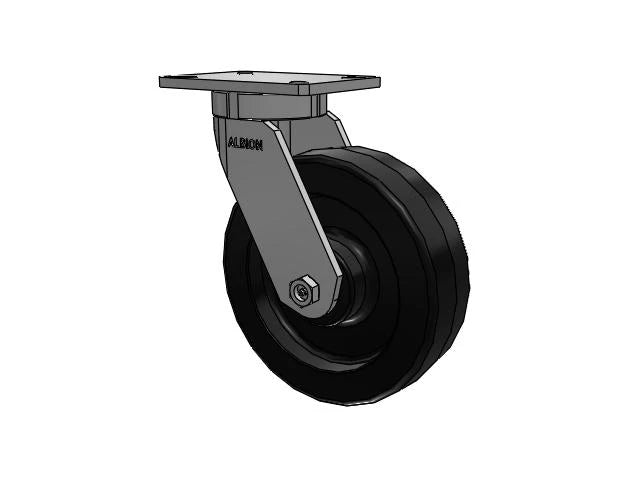

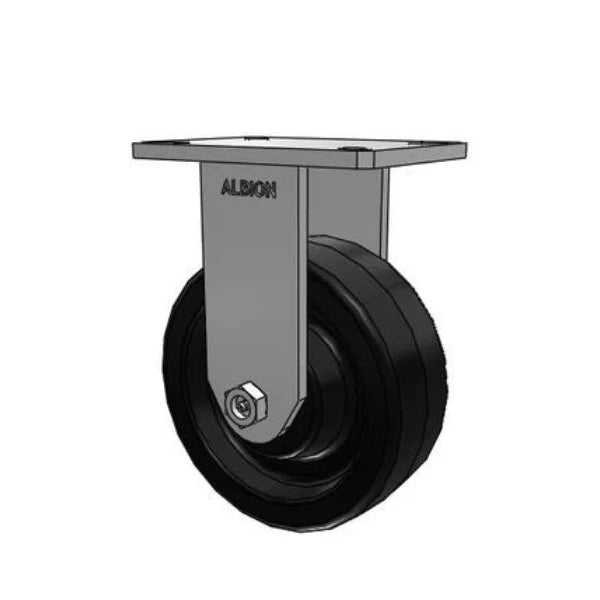

Phenolic 6, 8, 10 and 12 in 2,000 to 3,500 lb Up to 250°F hard and easy rolling on smooth, dry floors
Rubber Cast iron 6, 8, 10 and 12 in 750 to 1,200 lb -40°F to 180°F cushioned and quiet on finished floors

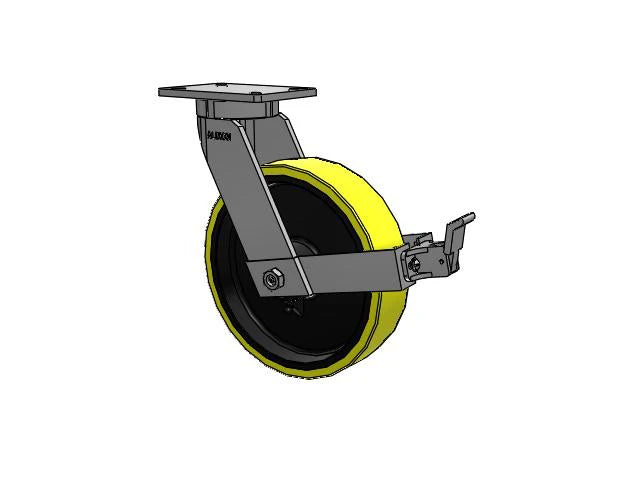

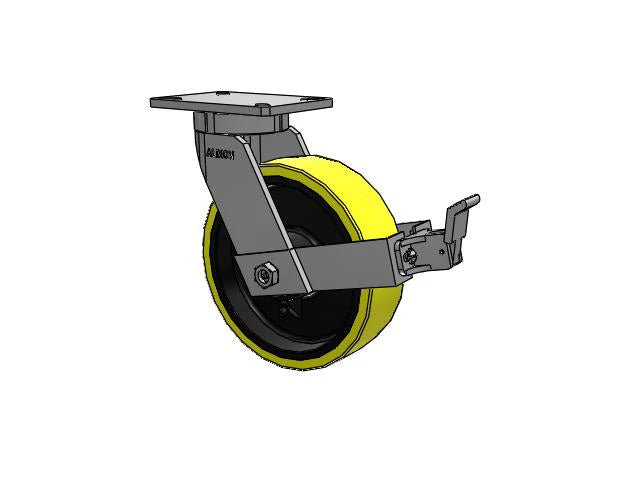

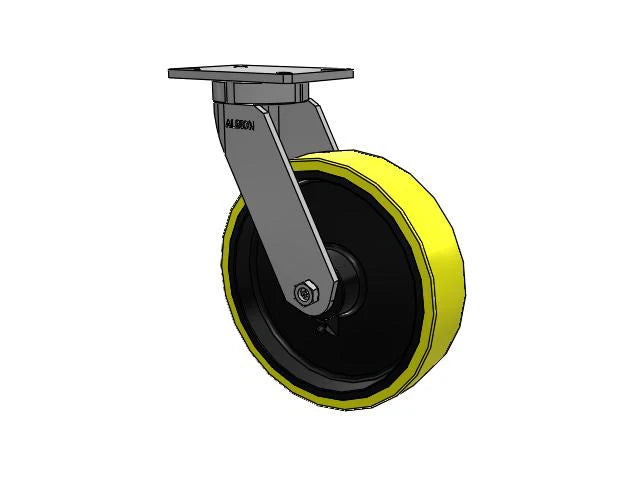

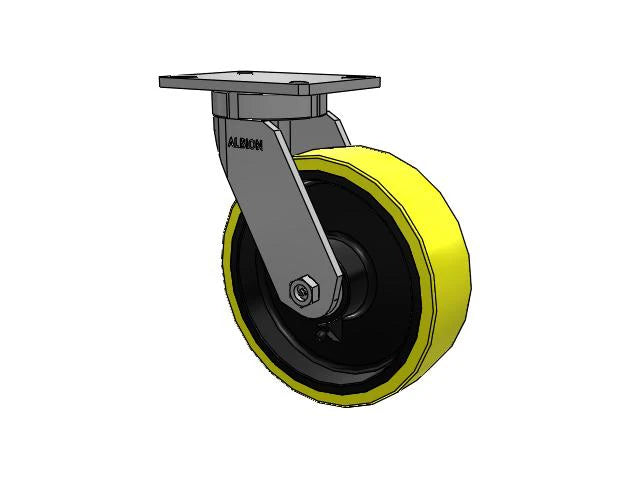

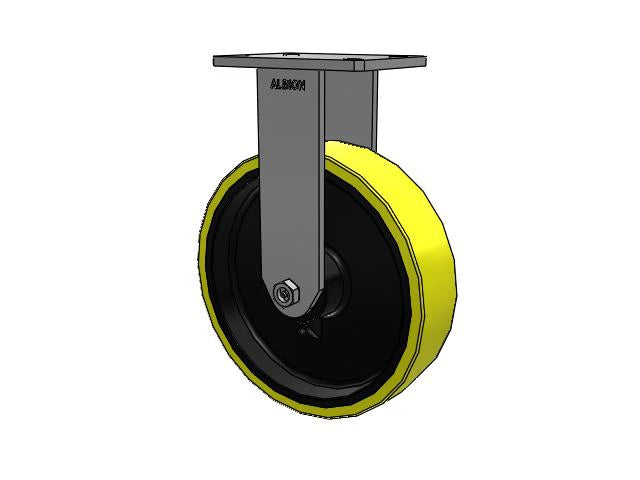

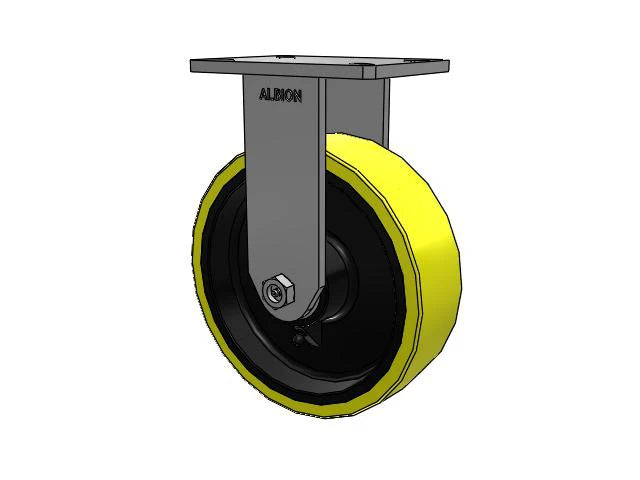

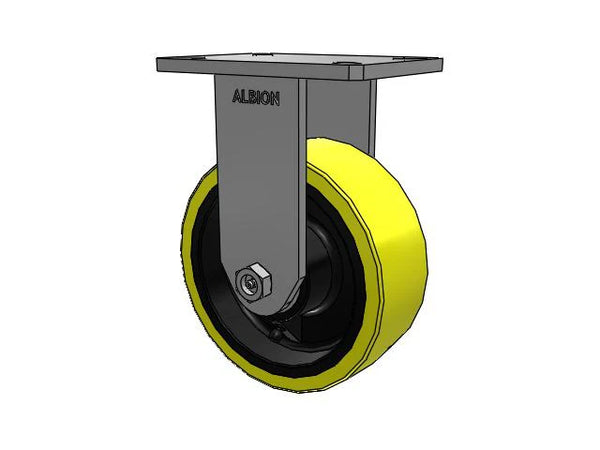

Polyurethane Cast iron 6 and 8 in 2,900 to 3,500 lb -40°F to 180°F quiet, floor-friendly and long wearing

Ratings are for single casters of Albion 470 series casters, from product fields [S1].

Wheel sizes

Wheel Treads Rated
6 x 3 in cast iron, phenolic and rubber 750 to 2,900 lb
8 x 3 in cast iron, phenolic and rubber 900 to 3,500 lb
10 x 3 in cast iron, phenolic and rubber 1,000 to 3,500 lb
12 x 3 in cast iron, phenolic and rubber 1,200 to 3,500 lb

Choosing Albion 470 series casters

  1. Load: plan on three casters carrying a four-caster cart [S2]; Albion 470 series casters rated 3,500 lb each then carry about 10,500 lb.
  2. Mount: most Albion 470 series casters use a 5-1/4 x 7-1/4 in top plate; 5 x 7-1/4 in and 4-1/2 x 6-1/4 in plates are listed too; match the bolt holes on your frame to the plate before ordering.
  3. Floor: on Albion 470 series casters, rubber and polyurethane are kinder to tile and finished floors; cast iron and phenolic roll easier under heavy loads on smooth concrete.

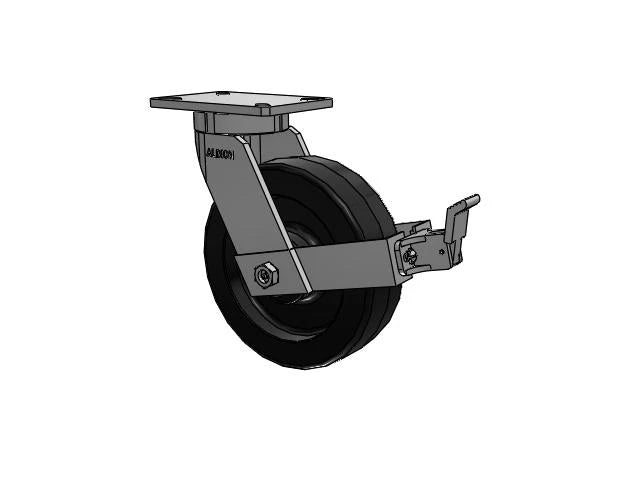

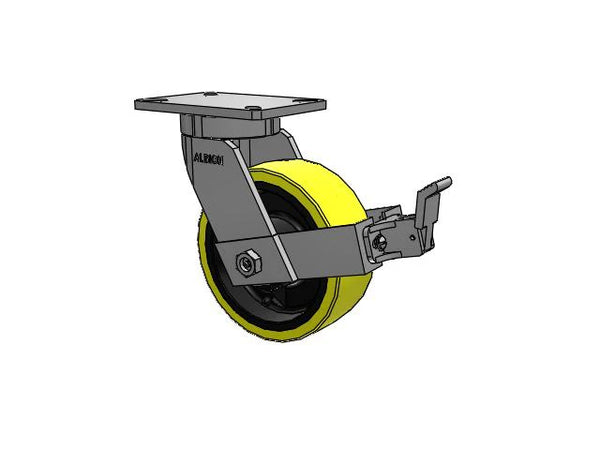

  4. Rig: swivel and rigid Albion 470 series casters are listed, with face contact brake options.
  5. Heat: among Albion 470 series casters, the highest listed range is up to 800°F on cast iron; check the temperature field on each listing before oven or hot-room use.

Albion 470 series casters questions

How much weight can Albion 470 series casters carry?

Single Albion 470 series casters are rated 750 to 3,500 lb; most fall between 2,000 and 3,500 lb.

What top plate do Albion 470 series casters use?

Most Albion 470 series casters use 5-1/4 x 7-1/4 in. Other plates on Albion 470 series casters: 5 x 7-1/4 in and 4-1/2 x 6-1/4 in.

What wheel material is most common on Albion 470 series casters?

Cast iron leads on Albion 470 series casters, rated 2,800 to 3,500 lb per caster. Among Albion 470 series casters, phenolic is next at 2,000 to 3,500 lb.

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
