5" x 1.25" Semi-Steel Casters

Diameter: 5 inTread: 1-1/4 and 2 inPlate: 2-3/8 x 3-5/8 in (most)Capacity: 300 to 1,000 lb per caster
This page lists 5 x 1.25 in semi-steel casters. Semi-steel is the most common tread on these 5 x 1.25 in semi-steel casters, rated 300 to 1,000 lb per caster. Sets of 4 5 x 1.25 in semi-steel casters list 1,400 lb combined.
1000 lbs
TieredPricing
5 Inch x 2 Inch Swivel Caster - 1000 lbs Capacity | Semi-Steel Cast Iron Wheel Heavy Duty CasterHQ
In Stock · Same/Next Day
5" x 2" Semi-Steel Swivel Caster – 1000 lb
Part # CB-9SC52-SS
from $52.00
Volume pricing available
Semi-SteelPlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelSemi-Steel
MountPlate 4" x 4-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -45°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
5" x 2" Inch Swivel Caster - Semi-Steel Cast Iron Wheel - 1,000 Lbs...
Shop Product
1000 lbs
TieredPricing
5 Inch x 2 Inch Rigid Caster - 1000 lbs Capacity | Semi-Steel Cast Iron Wheel Heavy Duty CasterHQ
In Stock · Same/Next Day
5" x 2" Semi-Steel Rigid Caster 4" x 4-1/2" Top Plate – 1000 lb
Part # CB-9RC52-SS
from $31.00
Volume pricing available
Semi-SteelPlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelSemi-Steel
MountPlate 4" x 4-1/2"
TypeRigid
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -45°F to 600°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
5" x 2" Inch Rigid Caster - Semi-Steel Cast Iron Wheel - 1,000 Lbs...
Shop Product
1400 lbs
TieredPricing
5" X 1.25" Steel Wheel Caster Set of 4 - 2 Swivel & 2 Rigid Casters - 1,400 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
5" x 1.25" Semi-Steel Swivel & Rigid Caster Set · Model HQ1350S-PL1-SS-2S2R · 1,400 lb set of 4
Part # HQ1350S-PL1-SS-2S2R
from $77.00
Volume pricing available
Semi-SteelPlate
Load rating
1400 lbs
Size5" x 1-1/4"
Capacity1400 lbs
WheelSemi-Steel
MountPlate 2-3/8" x 3-5/8"
TypeSwivel, Rigid
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -45°F to 600°F
Rig Type Swivel, Rigid
Brake No Brake
Frame Zinc Plated Steel
5" X 1.25" Steel Wheel Caster Set of 4 - 2 Swivel & 2...
Shop Product
1400 lbs
TieredPricing
5" X 1.25" Steel Wheel Caster Set of 4 - All Swivel Casters - 1,400 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
5" x 1.25" Semi-Steel Swivel Caster Set · 1,400 lb set of 4
Part # HQ1350S-PL1-SS-SET
from $90.00
Volume pricing available
Semi-SteelPlate
Load rating
1400 lbs
Size5" x 1-1/4"
Capacity1400 lbs
WheelSemi-Steel
MountPlate 2-3/8" x 3-5/8"
TypeSwivel
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -45°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
5" X 1.25" Steel Wheel Caster Set of 4 - All Swivel Casters -...
Shop Product
1400 lbs
TieredPricing
5" X 1.25" Steel Wheel Caster Set of 4 - 2 Locking Swivel & 2 Rigid Casters - 1,400 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
5" x 1.25" Semi-Steel Swivel & Rigid Caster Set · 2-3/8" X 3-5/8" - OVERALL SIZE Plate · Model HQ1350S-PL1-SS-2SB2R · 1,400 lb set of 4
Part # HQ1350S-PL1-SS-2SB2R
from $94.00
Volume pricing available
Semi-SteelPlate
Load rating
1400 lbs
Size5" x 1-1/4"
Capacity1400 lbs
WheelSemi-Steel
MountPlate 2-3/8" x 3-5/8"
TypeSwivel with Brake, Rigid · Side Lock Brake
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -45°F to 600°F
Rig Type Swivel with Brake, Rigid
Brake Side Lock Brake
Frame Zinc Plated Steel
5" X 1.25" Steel Wheel Caster Set of 4 - 2 Locking Swivel &...
Shop Product
300 lbs
TieredPricing
5" X 1.25" Light Duty Semi-Steel Wheel - Swivel Caster - 300 lb capacity per caster CasterHQ
In Stock · Same/Next Day
5" x 1.25" Semi-Steel Swivel Caster – 300 lb
Part # HQ1350S-PL1-SS
from $25.00
Volume pricing available
Semi-SteelPlate
Load rating
300 lbs
Size5" x 1-1/4"
Capacity300 lbs
WheelSemi-Steel
MountPlate 2-3/8" x 3-5/8"
TypeSwivel
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -40°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
5" X 1.25" Light Duty Semi-Steel Wheel - Swivel Caster300 lb capacity per casterCasterHQ's...
Shop Product
300 lbs
TieredPricing
5" x 1.25" Semi-Steel Rigid Caster – 300 lb | Top Plate 2-1/2" x 3-5/8" | CasterHQ
In Stock · Same/Next Day
5" x 1.25" Semi-Steel Rigid Caster – 300 lb
Part # HQ1350R-PL1-SS
from $17.00
Volume pricing available
Semi-SteelPlate
Load rating
300 lbs
Size5" x 1-1/4"
Capacity300 lbs
WheelSemi-Steel
MountPlate 2-3/8" x 3-5/8"
TypeRigid
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -40°F to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
5" X 1.25" Light Duty Semi-Steel Wheel - Rigid Caster300 lb capacity per casterCasterHQ's...
Shop Product
1400 lbs
TieredPricing

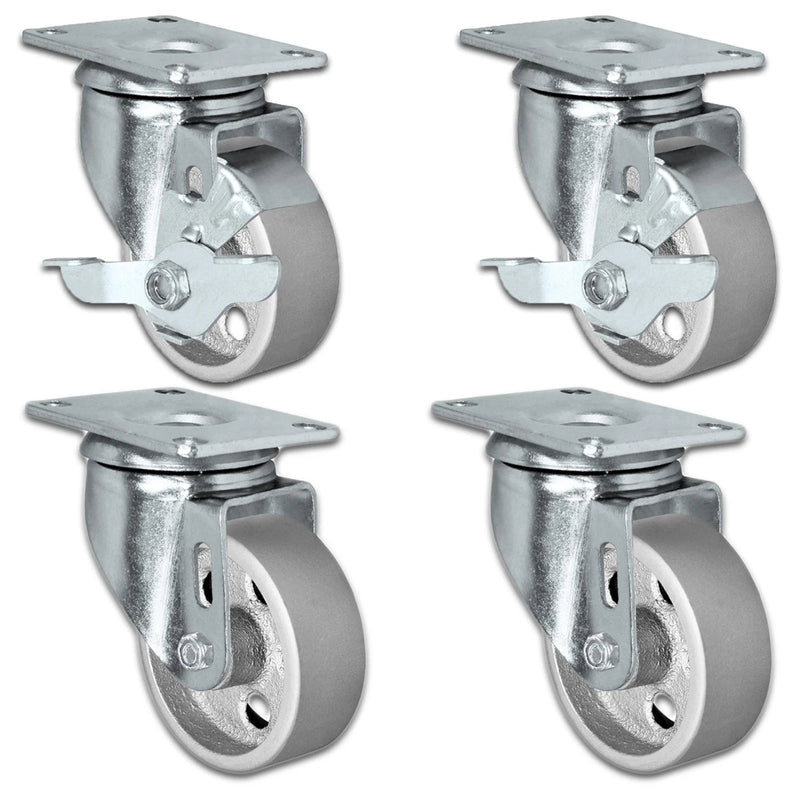

5" X 1.25" Steel Wheel Caster Set of 4 - 2 Locking Swivel & 2 Swivel Casters - 1,400 lbs Capacity Per Set CasterHQ
In Stock · Same/Next Day
5" x 1.25" Semi-Steel Swivel Caster Set with Brake · 1,400 lb set of 4
Part # HQ1350S-PL1-SS-2SB2S
from $107.00
Volume pricing available
Semi-SteelPlate
Load rating
1400 lbs
Size5" x 1-1/4"
Capacity1400 lbs
WheelSemi-Steel
MountPlate 2-3/8" x 3-5/8"
TypeSwivel, Swivel with Brake · Side Lock Brake
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -45°F to 600°F
Rig Type Swivel, Swivel with Brake
Brake Side Lock Brake
Frame Zinc Plated Steel
5" X 1.25" Steel Wheel Caster Set of 4 - 2 Locking Swivel &...
Shop Product

5 x 1.25 in semi-steel casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Semi-steel 5 in 300 to 1,000 lb -45°F to 600°F rough floors, heat and heavy loads

Ratings are for single casters of 5 x 1.25 in semi-steel casters, from product fields [S1].

Wheel sizes

Wheel Treads Rated
5 x 1-1/4 in semi-steel 300 lb
5 x 2 in semi-steel 1,000 lb

Choosing 5 x 1.25 in semi-steel casters

  1. Load: plan on three casters carrying a four-caster cart [S2]; 5 x 1.25 in semi-steel casters rated 1,000 lb each then carry about 3,000 lb.
  2. Mount: most 5 x 1.25 in semi-steel casters use a 2-3/8 x 3-5/8 in top plate; 4 x 4-1/2 in plates are listed too; match the bolt holes on your frame to the plate before ordering.
  3. Floor: on 5 x 1.25 in semi-steel casters, semi-steel suits smooth concrete and heavy loads, but is loud and hard on tile and wood.
  4. Rig: swivel and rigid 5 x 1.25 in semi-steel casters are listed, with side lock brake options.
  5. Heat: among 5 x 1.25 in semi-steel casters, the highest listed range is -45°F to 600°F on semi-steel; check the temperature field on each listing before oven or hot-room use.

Related to 5 x 1.25 in semi-steel casters: gray iron wheels.

5 x 1.25 in semi-steel casters questions

How much weight can 5 x 1.25 in semi-steel casters carry?

Single 5 x 1.25 in semi-steel casters are rated 300 to 1,000 lb.

What top plate do 5 x 1.25 in semi-steel casters use?

Most 5 x 1.25 in semi-steel casters use 2-3/8 x 3-5/8 in. Other plates on 5 x 1.25 in semi-steel casters: 4 x 4-1/2 in.

What wheel material is most common on 5 x 1.25 in semi-steel casters?

Semi-steel leads on 5 x 1.25 in semi-steel casters, rated 300 to 1,000 lb per caster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.

Search
