The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

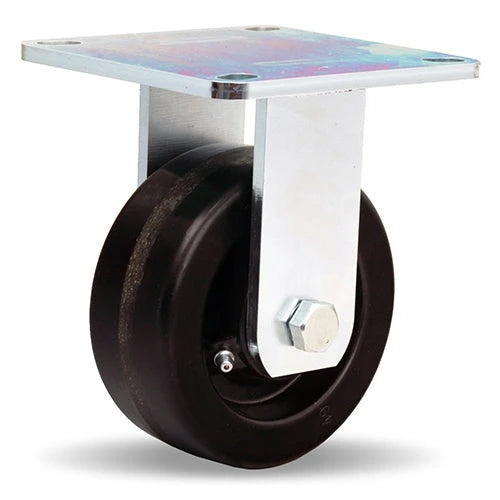

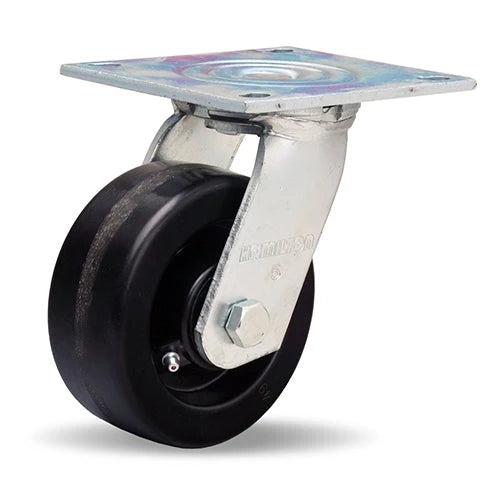

5" x 2" Phenolic Casters

Diameter: 5 inTread: 2 inCapacity: up to 1,250 lb

Phenolic casters here serve bake carts, metalworking fixtures, and debris-heavy floors. Catalog chips cover wheel diameters 5 in, phenolic treads, and plate-mount frames. Phenolic shrugs off heat and oils that soften rubber or poly on bake and shop carts. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. These medium-duty options cover everyday bake carts, metalworking fixtures, and debris-heavy floors without jumping to extreme forged series.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
