The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

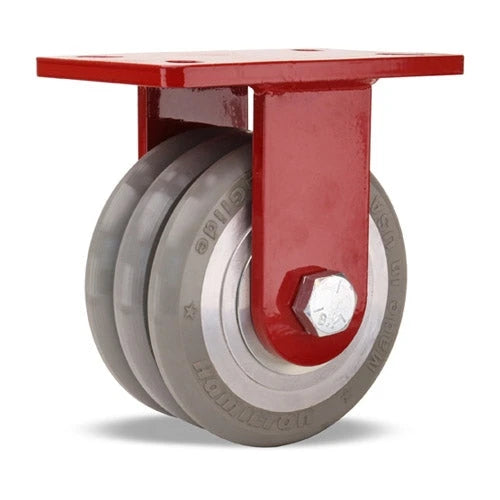

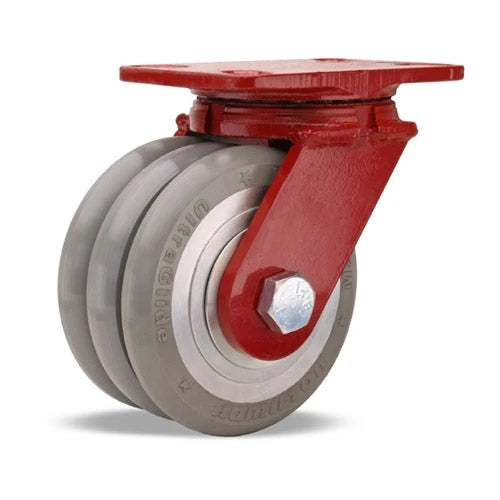

6" x 3" Casters

Diameter: 6 inTread: 3 inCapacity: up to 2,200 lb

This collection gathers plate-mount casters used on heavy warehouse carts, die carts, and plant fixtures. Typical builds show wheel diameters 6 in and capacities 2,200 lb. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. Replace worn corners in matched sets when possible so the cart tracks straight under load. These heavy-duty options cover everyday heavy warehouse carts, die carts, and plant fixtures without jumping to extreme forged series.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
