The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size. When replacing existing casters, select the closest plate size and verify bolt-hole compatibility. BHP = Bolt Hole Pattern, shown under each plate.

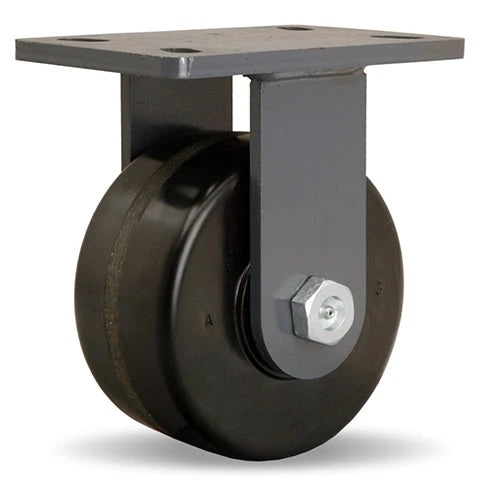

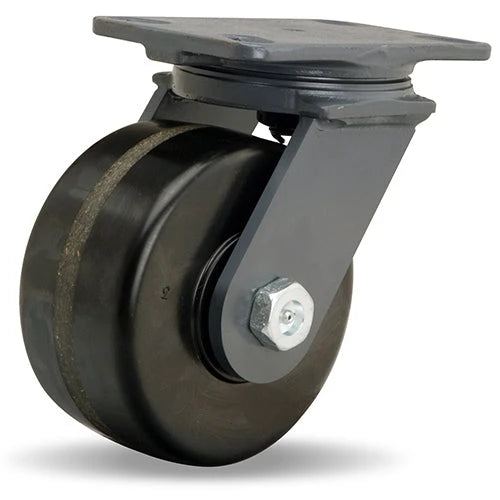

Hamilton Extended Service ES Casters w/ Plastex Phenolic Wheels · 6" Wheels · Up to 2,000 lb
Diameter:6 inTread:2-1/2, 3 inCapacity:up to 2,000 lb
This collection gathers plate-mount casters used on bake carts, metalworking fixtures, and debris-heavy floors. You will see wheel diameters 6 in, phenolic treads, and capacities 1,800 to 2,000 lb across the SKUs listed below. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. These heavy-duty options cover everyday bake carts, metalworking fixtures, and debris-heavy floors without jumping to extreme forged series.
