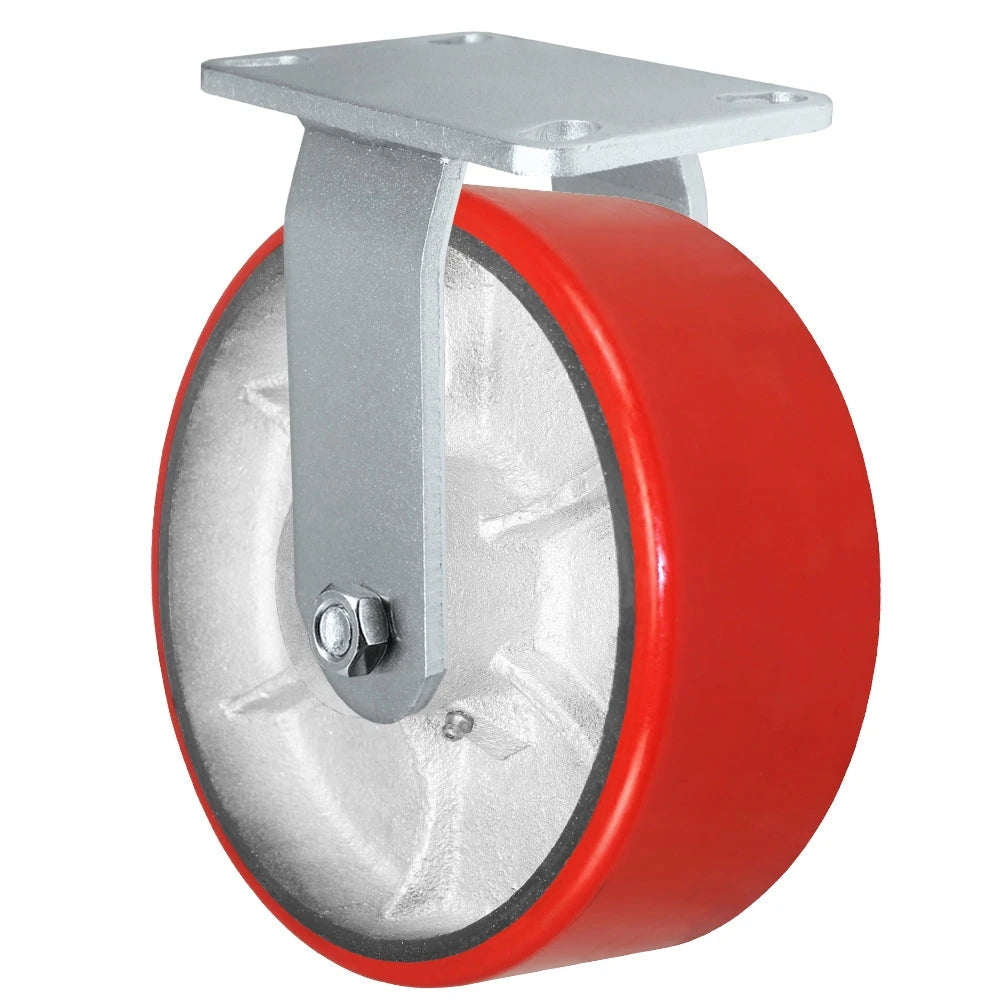

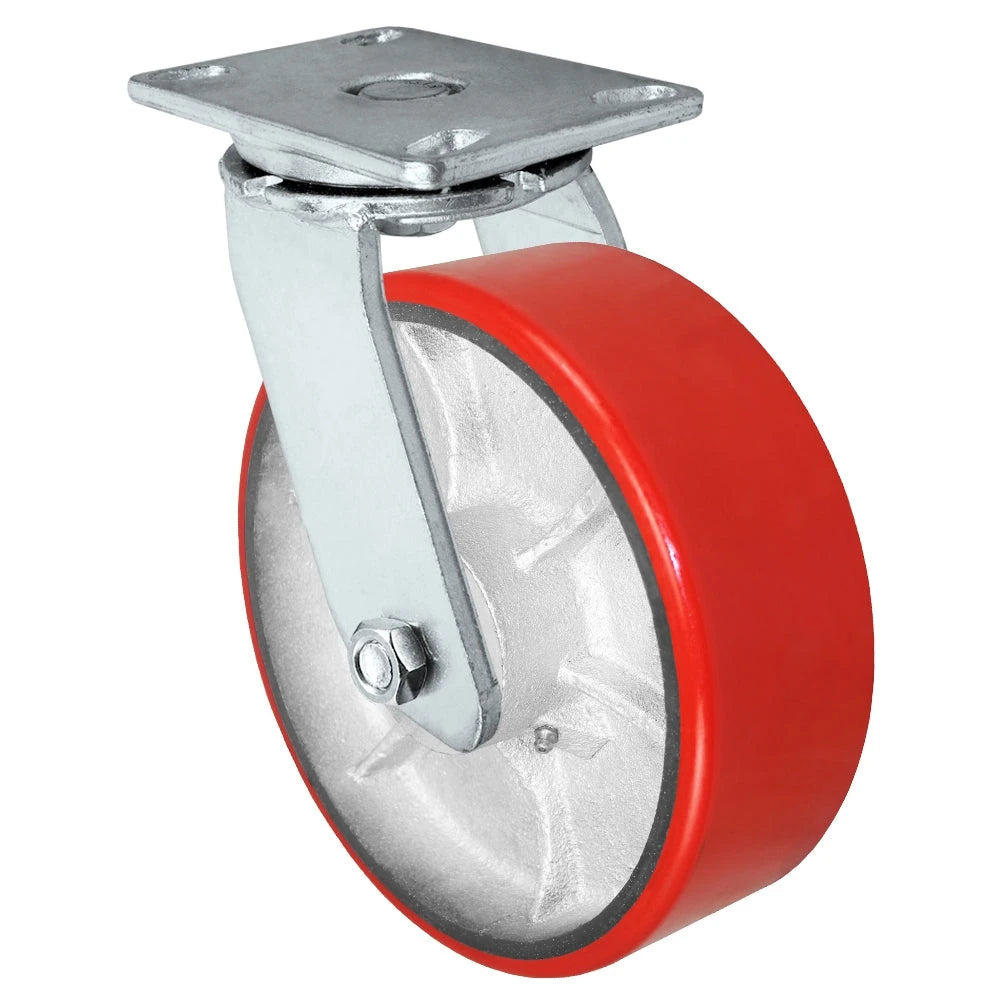

8" x 3" Heavy Duty Casters with Red Polyurethane on Cast Iron Wheels | up to 2,500 lbs Per Caster

Capacities up to 2,500 per caster - Wheel Sizes 8-inch Diameter x 3 inches Wide

Plate Size: 4-1/2" x 6-1/4"

This product page covers our 8-inch diameter x 3-inch wide Red Poly on Iron Wheel Casters. Polyurethane on Cast Iron Wheels can withstand a heavy load capacity all while protecting your floors from damage. Easy-rolling, heavy-duty, and affordable. Heavy Duty Casters manufactured with heavy-duty hot forged top plates and yokes using 1045 steel. Deeply grooved double ball bearing raceways with 3/8" Round edge steel legs, double-welded. 3/4" Diameter heat treated kingpin and nut, with a 3/4" axle and lock nut. All casters include a grease fitting in the swivel raceway and are finished off with a zinc-plated finish to increase rust resistance and durability. Power is drawn or manually pushed; the 60 series always delivers. Trusted by some of the biggest names in the fabrication, automotive, and manufacturing industries, these casters will out-perform and over-deliver. These Casters are typically seen on Heavy Duty Carts, Heavy Machinery, Industrial Warehouses, and Food Service Plants. Multiple Caster Wheel options are available to choose from, depending on your application. The rubber on Steel Wheels, Phenolic Wheels, HD Polyurethane on Steel Wheels, Semi-Steel Wheels, Regal Polyurethane, Ductile Steel, HD Solid Polyurethane, Glass Filled Nylon, and more. All wheels have different load capacities and application benefits.

Popular applications include; heavy-duty carts, trucks, dollies, racks & equipment for almost every industry, including industrial, warehousing, and endless other heavy-duty caster applications.

Features:

Heavy Duty Drop Forged Top Plate and Yoke Base Manufactured from 1045 Steel
Deeply Grooved Double Ball Bearing Raceway
3/8" Round Edge Steel Legs, Double Welded
3/4" Diameter Heat Treated Kingpin and Nut
3/4" Axle and Lock Nut
Grease Fitting in Swivel Raceway
Zinc Plated Finish

Questions? Please call us @ 844-439-4335 or Contact Us Here.

For quick online service, please email us: sales@casterhq.com or Message us through the Live Chat Feature on the Bottom Right Corner of your Browser, and a Caster Expert will help you answer any questions.

We ship Fast!!!
If ordered before 12-noon, we ship all orders typically ship SAME DAY!
All orders received after 12-noon will ship the following business day!
