Hamilton Steel/Iron Casters w/ 8" Wheels · Up to 16,500 lb

Plate sizes: 5-1/4 x 7-1/4Bolt holes: 3-3/8 x 5-1/4 slotted to 4-1/8 x 6-1/8Diameter: 8 inTread: 2-3/4, 3, 4 inCapacity: up to 15,000 lb
Match a 5-1/4 x 7-1/4 top plate when bolting casters under forging carts, aerospace fixtures, and multi-ton movers. Expect wheel diameters 8 in, steel treads, and capacities 2,500 to 15,000 lb. Match bolt-hole spacing or stem diameter to the frame before you standardize a fleet. Larger plates spread bolt stress on thick frames under continuous tow abuse. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level.
10000 lbs
TieredPricing
10,000 lbs Load Capacity - Hamilton Enhanced Precision Super Duty Rigid Caster - 8"x3" Forged Steel V-Grooved Wheel with 1 1/4" Tapered Roller Bearing - R-EPSD-83FVT Hamilton
Made to Order · 4-6 Wk
Hamilton R-EPSD-83FVT 8"x3" Forged Steel Rigid Caster – 10,000 lb
Part # R-EPSD-83FVT
$582.00
Volume pricing available
Load rating
10000 lbs
Diameter 8"
Capacity 10000 lbs
More Details Less Details
Width 3"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton 10,000 lbs Load Capacity Super Duty Swivel Caster | S-EPSD-83FVT Hamilton Enhanced Precision...
Shop Product
15000 lbs
TieredPricing
Hamilton Maxi-Duty 15,000 lbs. Swivel Caster - 8"x4" Forged Steel V-Grooved Wheel with 1 1/4" Precision Tapered Roller Bearings - S-MD-84FVT Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-84FVT 8"x4" Forged Steel Swivel Caster – 15,000 lb
Part # S-MD-84FVT
$1,229.00
Volume pricing available
Load rating
15000 lbs
Diameter 8"
Capacity 15000 lbs
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty 15,000 lbs. Swivel Caster - S-MD-84FVT Hamilton Maxi-Duty 15,000 lbs. Swivel Caster...
Shop Product
TieredPricing
Hamilton Maxi-Duty S-MD-84FVH Swivel Caster - 8"x4" Forged Steel V-Grooved Wheel with 1 1/2" Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-MD-84FVH 8"x4" Forged Steel Swivel Caster – 1 1/2" Roller Bearing
Part # S-MD-84FVH
$1,160.00
Volume pricing available
Plate
Diameter 8"
Mount Plate
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Swivel Caster: S-MD-84FVH Welcome to the future of industrial mobility with the...
Shop Product
10000 lbs
TieredPricing
Hamilton 10,000 lbs. Enhanced Precision Super Duty Swivel Caster - 8"x4" Forged Steel V-Grooved Wheel - 1 1/4" Tapered Roller Bearing - S-EPSD-84FVT CasterHQ
Made to Order · 4-6 Wk
Hamilton S-EPSD-84FVT 8"x4" Forged Steel Swivel Caster – 10,000 lb
Part # S-EPSD-84FVT
from $992.00
Volume pricing available
Load rating
10000 lbs
Diameter 8"
Capacity 10000 lbs
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Enhanced Precision Swivel Caster S-EPSD-84FVT Hamilton 10,000 lbs. Enhanced Precision Super Duty Swivel...
Shop Product
TieredPricing
S-EPSD-84FVH Hamilton Enhanced Precision | Super Duty Swivel Caster with 8"x4" Forged Steel V-Grooved Wheel | 1 1/2" Roller Bearing for Advanced Industrial Mobility Hamilton
Made to Order · 4-6 Wk
Hamilton S-EPSD-84FVH 8"x4" Forged Steel Swivel Caster – 1 1/2" Roller
Part # S-EPSD-84FVH
$839.00
Volume pricing available
Plate
Diameter 8"
Mount Plate
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-EPSD-84FVH Hamilton Enhanced Precision Super Duty Swivel Caster Introducing the S-EPSD-84FVH Hamilton Enhanced Precision...
Shop Product
TieredPricing

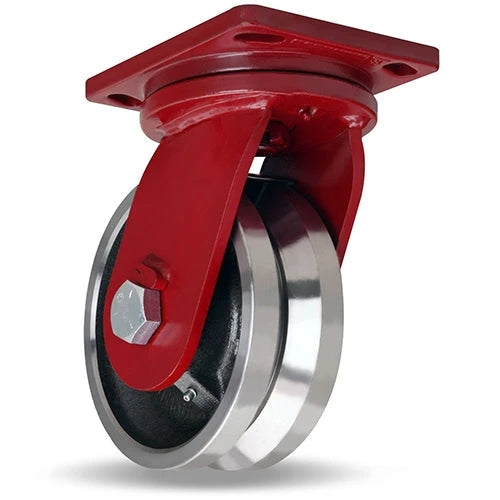

S-EPSD-83FVH Hamilton Enhanced Precision | Super Duty Swivel Caster with 8"x3" Forged Steel V-Grooved Wheel | 1 1/4" Roller Bearing for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton S-EPSD-83FVH 8"x3" Forged Steel V-Grooved Swivel Caster
Part # S-EPSD-83FVH
$692.00
Volume pricing available
Plate
Diameter 8"
Mount Plate
More Details Less Details
Width 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-EPSD-83FVH Hamilton Enhanced Precision Super Duty Swivel Caster | 8" x 3" Forged Steel...
Shop Product
2500 lbs
TieredPricing
Hamilton 2500 lbs. Load Capacity Swivel Caster - 8"x2 3/4" V-Grooved Wheel with 3/4" Precision Tapered Roller Bearings - S-CH-8VT Champion Hamilton
Made to Order · 4-6 Wk
Hamilton S-CH-8VT 8"x2 3/4" V-Grooved Swivel Caster – 2500 lb
Part # S-CH-8VT
from $432.00
Volume pricing available
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
More Details Less Details
Width 2-3/4"
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton 2500 lbs. Load Capacity Swivel Caster - S-CH-8VT Champion Hamilton 2500 lbs. Load...
Shop Product
TieredPricing

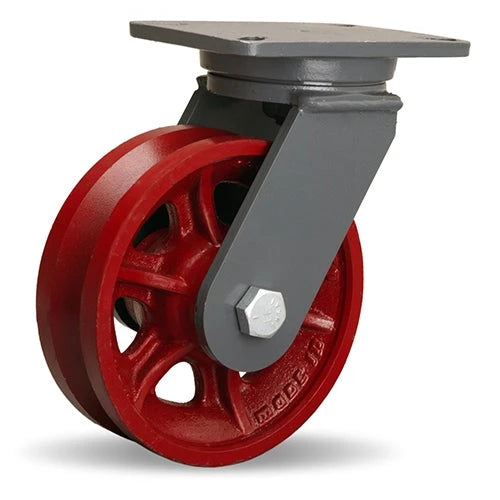

Hamilton Champion 8" Swivel Caster S-CH-8VH with V-Grooved Wheel and 1" Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-CH-8VH 8" x 2 3/4" V-Grooved Swivel Caster – 1" Roller Bearing
Part # S-CH-8VH
from $387.00
Volume pricing available
Cast IronPlate
Diameter 8"
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 2-3/4"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Champion Swivel Caster: S-CH-8VH Discover the pinnacle of swivel caster technology with the...
Shop Product
4000 lbs
TieredPricing

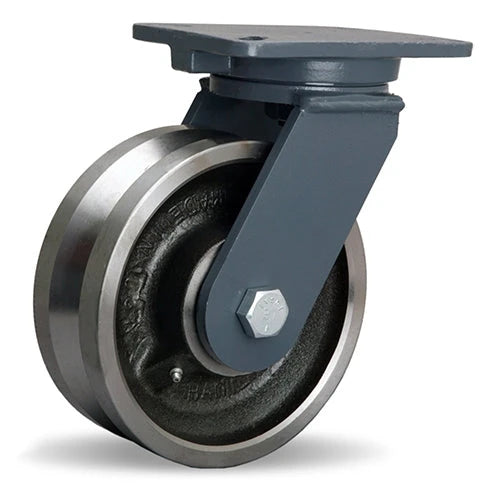

Hamilton Champion 4000 lbs Load Capacity Swivel Caster - 8" x 3" Forged Steel V-Grooved Wheel with 3/4" Precision Tapered Roller Bearings - S-CH-83FVT Hamilton
Made to Order · 4-6 Wk
Hamilton S-CH-83FVT 8" x 3" Forged Steel Swivel Caster – 4000 lb
Part # S-CH-83FVT
from $637.00
Volume pricing available
Plate
Load rating
4000 lbs
Diameter 8"
Capacity 4000 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10.5"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Champion 4000 lbs Load Swivel Caster | S-CH-83FVT Hamilton Champion Swivel Caster -...
Shop Product
TieredPricing
S-CH-83FVH Hamilton Champion 8"x3" Forged Steel V-Grooved Swivel Caster | Industrial Roller Bearing Wheel for Enhanced Mobility Hamilton
Made to Order · 4-6 Wk
Hamilton S-CH-83FVH 8"x3" Forged Steel Swivel Forged Caster
Part # S-CH-83FVH
from $592.00
Volume pricing available
Plate
Diameter 8"
Mount Plate
More Details Less Details
Width 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-CH-83FVH Hamilton Champion Swivel Caster | 8" x 3" Forged Steel V-Grooved Wheel S-CH-83FVH...
Shop Product
15000 lbs
TieredPricing
Hamilton Maxi-Duty 15,000 lbs. Rigid Caster - 8"x4" Forged Steel V-Grooved Wheel with 1 1/4" Precision Tapered Roller Bearings - R-MD-84FVT Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-84FVT 8"x4" Forged Steel Rigid Caster – 15,000 lb
Part # R-MD-84FVT
$842.00
Volume pricing available
Load rating
15000 lbs
Diameter 8"
Capacity 15000 lbs
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty 15,000 lbs. Swivel Caster - S-MD-84FVT Hamilton Maxi-Duty 15,000 lbs. Rigid Caster...
Shop Product
TieredPricing

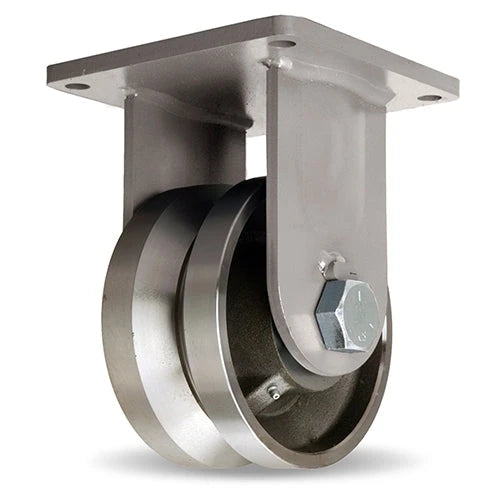

Hamilton Maxi-Duty R-MD-84FVH Rigid Caster - 8"x4" Forged Steel V-Grooved Wheel with 1 1/2" Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-MD-84FVH 8"x4" Forged Steel Rigid Caster – 1 1/2" Roller
Part # R-MD-84FVH
$746.00
Volume pricing available
Plate
Diameter 8"
Mount Plate
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Maxi-Duty Rigid Caster: R-MD-84FVH Welcome to the future of industrial mobility with the...
Shop Product
10000 lbs
TieredPricing
Hamilton 10,000 lbs. Enhanced Precision Super Duty Rigid Caster - 8"x4" Forged Steel V-Grooved Wheel - 1 1/4" Tapered Roller Bearing - R-EPSD-84FVT Hamilton
Made to Order · 4-6 Wk
Hamilton R-EPSD-84FVT 8"x4" Forged Steel Rigid Caster – 10000 lb
Part # R-EPSD-84FVT
$773.00
Volume pricing available
Load rating
10000 lbs
Diameter 8"
Capacity 10000 lbs
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Enhanced Precision Swivel Caster S-EPSD-84FVT Hamilton 10,000 lbs. Enhanced Precision Super Duty Rigid...
Shop Product
TieredPricing
R-EPSD-84FVH Hamilton Enhanced Precision | Super Duty Rigid Caster with 8"x4" Forged Steel V-Grooved Wheel | 1 1/2" Roller Bearing for Advanced Industrial Mobility Hamilton
Made to Order · 4-6 Wk
Hamilton R-EPSD-84FVH 8"x4" Forged Steel Rigid Caster – 1 1/2" Roller Bearing
Part # R-EPSD-84FVH
$605.00
Volume pricing available
Plate
Diameter 8"
Mount Plate
More Details Less Details
Width 4"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
R-EPSD-84FVH Hamilton Enhanced Precision Super Duty Rigid Caster Introducing the R-EPSD-84FVH Hamilton Enhanced Precision...
Shop Product
TieredPricing
R-EPSD-83FVH Hamilton Enhanced Precision | Super Duty Rigid Caster with 8"x3" Forged Steel V-Grooved Wheel | 1 1/4" Roller Bearing for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton R-EPSD-83FVH 8"x3" Forged Steel Rigid Caster 1 1/4" Roller
Part # R-EPSD-83FVH
$470.00
Volume pricing available
Plate
Diameter 8"
Mount Plate
More Details Less Details
Width 3"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
S-EPSD-83FVH Hamilton Enhanced Precision Super Duty Swivel Caster | 8" x 3" Forged Steel...
Shop Product
2500 lbs
TieredPricing
Hamilton 2500 lbs. Load Capacity Rigid Caster - 8"x2 3/4" V-Grooved Wheel with 3/4" Precision Tapered Roller Bearings - R-CH-8VT Champion Hamilton
Made to Order · 4-6 Wk
Hamilton R-CH-8VT 8"x2 3/4" V-Grooved Rigid Caster – 2500 lb
Part # R-CH-8VT
$296.00
Volume pricing available
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
More Details Less Details
Width 2-3/4"
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton 2500 lbs. Load Capacity Swivel Caster - S-CH-8VT Champion Hamilton 2500 lbs. Load...
Shop Product
TieredPricing
Hamilton Champion 8" Rigid Caster R-CH-8VH with V-Grooved Wheel and 1" Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-CH-8VH 8" x 2 3/4" V-Grooved Rigid Caster 1" Roller Bearing
Part # R-CH-8VH
$284.00
Volume pricing available
Cast IronPlate
Diameter 8"
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 2-3/4"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Champion Rigid Caster: R-CH-8VH Discover the pinnacle of swivel caster technology with the...
Shop Product
4000 lbs
TieredPricing
Hamilton Champion 4000 lbs Load Capacity Rigid Caster - 8" x 3" Forged Steel V-Grooved Wheel with 3/4" Precision Tapered Roller Bearings - R-CH-83FVT CasterHQ
Made to Order · 4-6 Wk
Hamilton R-CH-83FVT 8" x 3" Forged Steel Rigid Caster – 4000 lb
Part # R-CH-83FVT
$514.00
Volume pricing available
Plate
Load rating
4000 lbs
Diameter 8"
Capacity 4000 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10.5"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Champion 4000 lbs Load Swivel Caster | S-CH-83FVT Hamilton Champion Rigid Caster -...
Shop Product
TieredPricing
R-CH-83FVH Hamilton Champion 8"x3" Forged Steel V-Grooved Rigid Caster | Industrial Roller Bearing Wheel for Enhanced Mobility Hamilton
Made to Order · 4-6 Wk
Hamilton R-CH-83FVH 8"x3" Forged Steel Rigid Forged Caster
Part # R-CH-83FVH
$470.00
Volume pricing available
Plate
Diameter 8"
Mount Plate
More Details Less Details
Width 3"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
S-CH-83FVH Hamilton Champion Swivel Caster | 8" x 3" Forged Steel V-Grooved Wheel R-CH-83FVH...
Shop Product

Search
