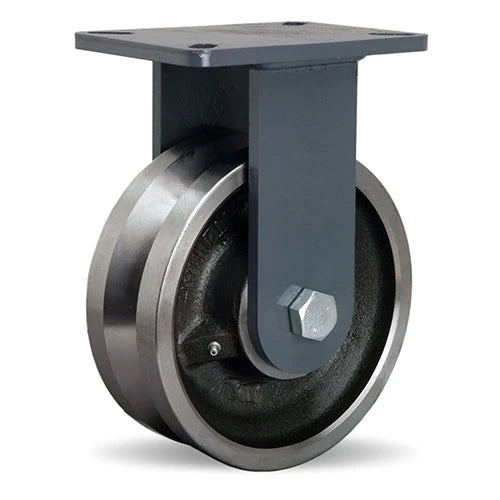

The Hamilton Champion R-CH-83FVT Rigid Caster is designed for industrial applications demanding the highest standards of strength and durability. Its large load capacity combined with the precision tapered roller bearings ensures optimum performance even in challenging environments. Whether you're moving heavy machinery or industrial equipment, trust the strength and reliability of Hamilton's Champion Series.
| Product Code: | R-CH-83FVT |
| Wheel Diameter: | 8 inches |
| Wheel Width: | 3 inches |
| Wheel Material: | Forged Steel V-grooved |
| Bearing Type: | 3/4" Precision Tapered Roller |
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Experience unmatched robustness and efficiency with the Hamilton Champion Rigid Caster. Whether you're involved in heavy industrial tasks or need reliable movement solutions, this caster is designed to meet the highest standards.
Discover the unique benefits that set our caster apart:
Every dimension and detail has been crafted for optimal performance:
| Feature | Specification |
|---|---|
| Bolt Holes | 3 3/8 x 5 1/4 and 4 1/8 x 6 1/8 inches |
Our wheels are not just about durability; they're about precision:
This Hamilton R-CH-83FVT 8" x 3" Forged Steel Rigid Caster – 4000 lb is rated to 4000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 10.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$514.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 3" |
| Overall Height | 10.5" |
| Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 4000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
8" x 3" Polyurethane on Steel Swivel Caster – 3500 lb | CasterHQ
8" x 3" · 3500 lbs
$252
8" x 3" Polyurethane on Steel Rigid Caster – 3500 lb | 5-1/4" x 7-1/4" Top Plate
8" x 3" · 3500 lbs · Direct fit
$353
Albion 470PF08528S 8"x3" Poly-on-Iron Swivel Kingpinless Caster – 3500 lb | CasterHQ
8" x 3" · 3500 lbs · Direct fit
$343
View all 8′ x 3′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 3500 lbsLighter duty | 8" × 3"Polyurethane | Swivel | 10-1/8" | $252.00 | View → | |
| 3500 lbsLighter duty | 8" × 3" | Swivel | 10.5" | $343.00 | View → | |
| 4000 lbs | 8" × 3" | Rigid | 10.5" | $514.00 | Viewing | |
| 5500 lbsHeavier duty | 8" × 3"Polyurethane | Swivel | 8" | $373.00 | View → | |
| 6000 lbsHeavier duty | 8" × 3"Ductile Iron | Rigid | 10-1/8" | $201.00 | View → |
