Advantco Casters · 3"–5" · 275–300 lb · Rubber

This collection holds Advantco Casters with rubber, polyolefin and polyurethane wheels, built for light carts, racks, and stands. Casters in this collection range from 275 to 300 lb per caster. Wheels in this category range from 3 up to 5 inches in diameter with a 1-1/4 in tread width. The collection includes swivel and brake models. Rubber wheels are quiet, cushion the load, and protect floors. Polyolefin is light, low cost, and resists water and many chemicals. It is hard, so it is loud on rough floors. Polyurethane (poly or urethane) treads are quiet, floor safe, and resist water and many chemicals. Soft rubber or TPR is the better pick when the floor has chips or grit. Common uses include food service, bakeries, hospitals, schools, laboratories, and material handling carts. Match plate size, bolt pattern, and overall height before you order. Read the listing for the exact wheel size, overall height, and mount shown. Rubber aisle: rubber casters. Wheel hub: replacement wheels.
275 lbs
TieredPricing

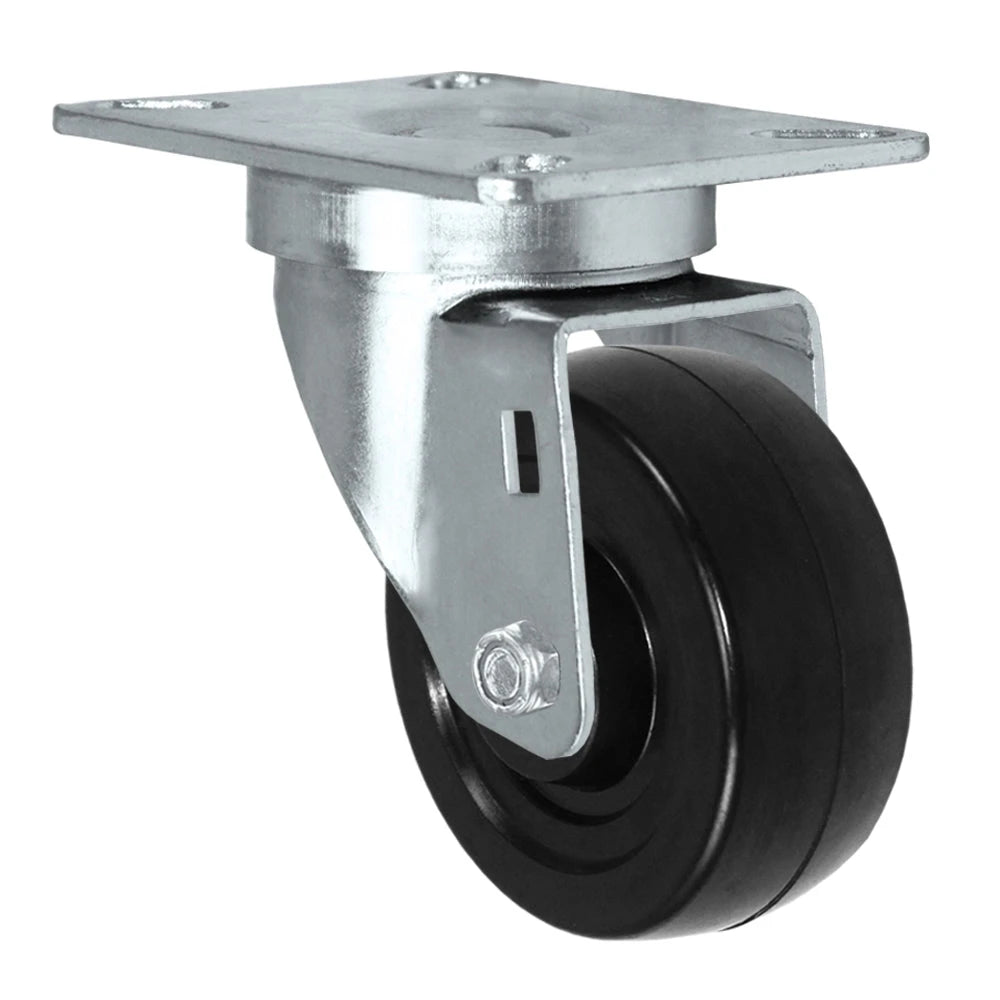

Avantco 17811532 Caster for PT, UC, WT, UBB, UDD Series - High-Quality & Versatile - CasterHQ CasterHQ
In Stock · Same/Next Day
3" x 1-1/4" Hard Rubber Swivel Caster – 275 lb
Part # CHQ-AVT-17811532-CAST
from $20.00
Volume pricing available
RubberPlate
Load rating
275 lbs
Size3" x 1-1/4"
Capacity275 lbs
WheelRubber
MountPlate 1-1/4" x 3"
TypeSwivel
More Details Less Details
Width 1-1/4"
Height 4-1/8"
Bolt Pattern 1-3/4" x 2-15/16"
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Avantco Compatible Swivel Caster Enhance your Avantco commercial kitchen appliances with our top-grade swivel...
Shop Product
300 lbs
TieredPricing

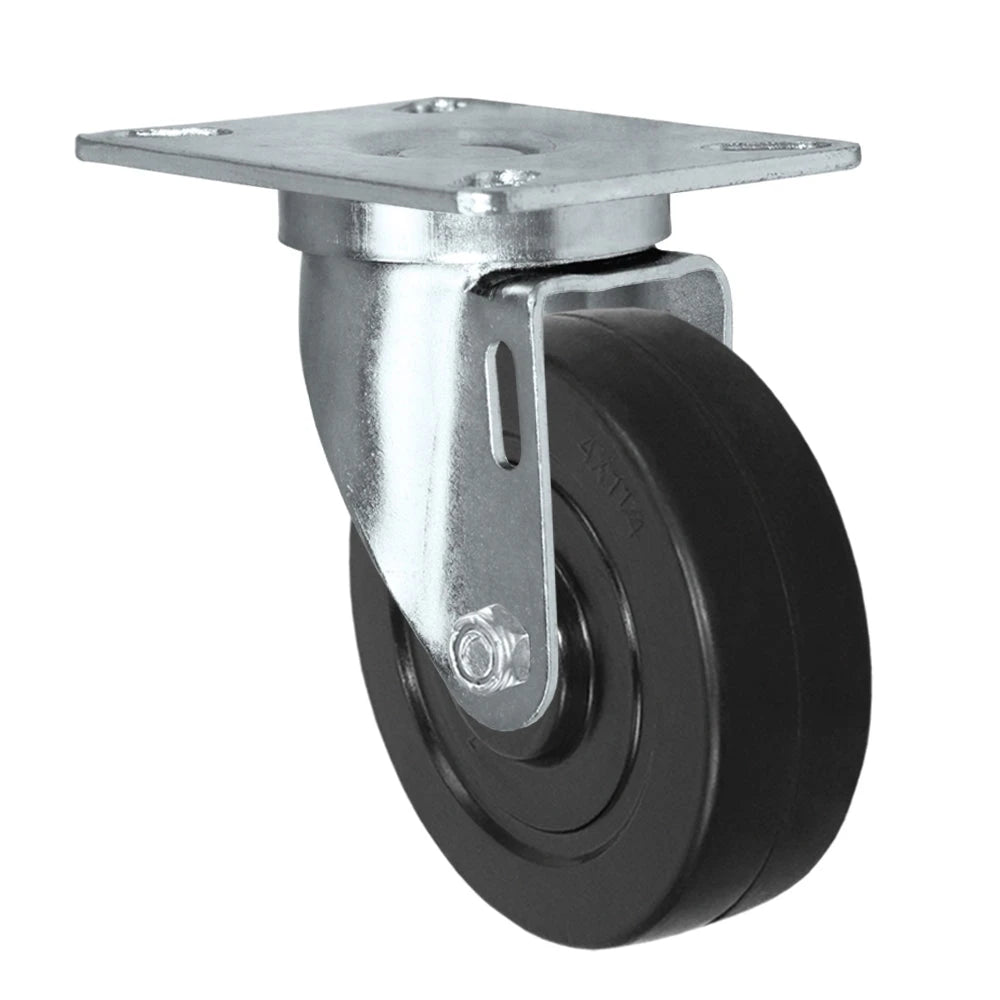

Avantco 17819301 Swivel Plate Caster 4 Inch - Premium Mobility Upgrade for Commercial Appliances CasterHQ
In Stock · Same/Next Day
4" x 1-1/4" Hard Rubber Swivel Caster – 300 lb
Part # AVT-4SWVL-PLT-17819301
from $23.00
Volume pricing available
RubberPlate
Load rating
300 lbs
Size4" x 1-1/4"
Capacity300 lbs
WheelRubber
MountPlate 1-1/4" x 4"
TypeSwivel
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Bolt Pattern 1-3/4" x 2-15/16"
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Avantco 17819301 Swivel Plate Caster 4 Inch - Premium Mobility Upgrade for Commercial AppliancesEnhance...
Shop Product
275 lbs
TieredPricing

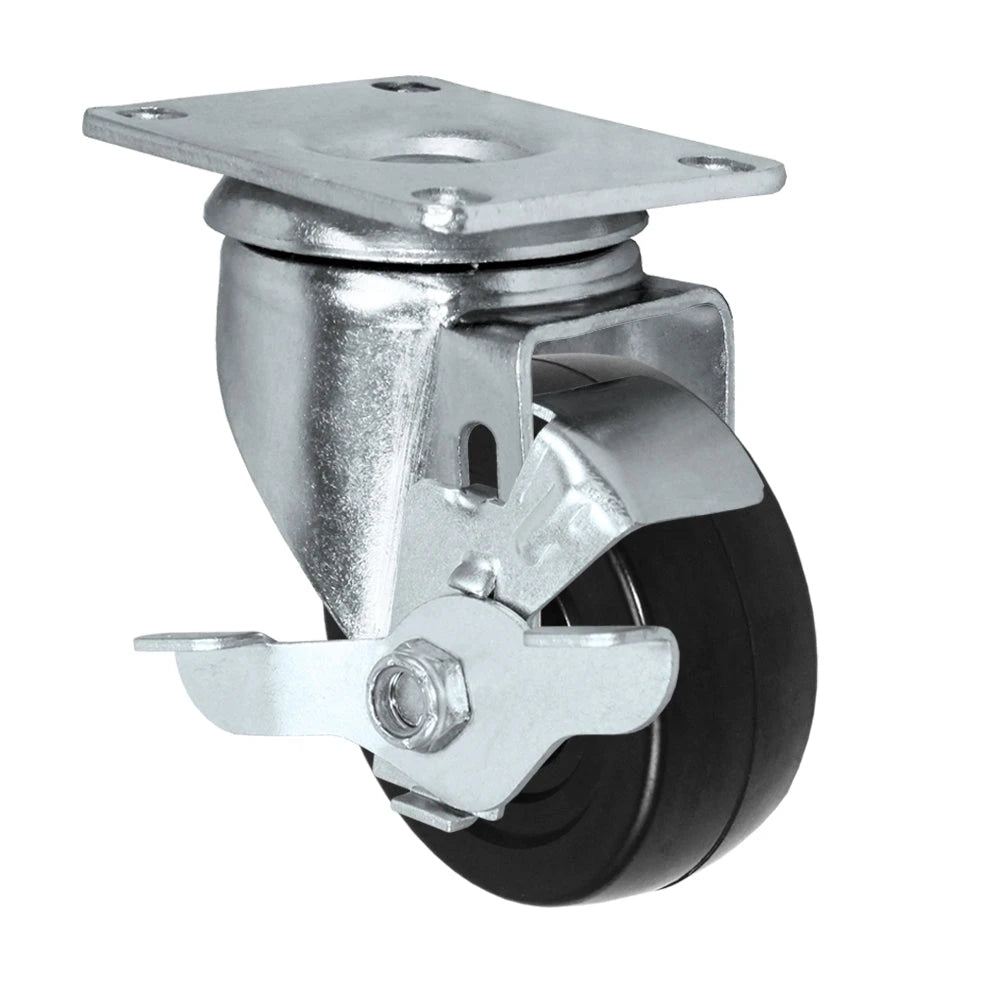

Avantco 17811532 Caster With Brake for PT, UC, WT, UBB, UDD Series - High-Quality & Versatile - CasterHQ CasterHQ
In Stock · Same/Next Day
3" x 1-1/4" Hard Rubber Swivel Caster with Brake – 275 lb
Part # CHQ-AVT-17811532-CAST-TLB
from $26.00
Volume pricing available
RubberPlate
Load rating
275 lbs
Size3" x 1-1/4"
Capacity275 lbs
WheelRubber
MountPlate 1-1/4" x 3"
TypeSwivel with Brake · Top Lock Brake
More Details Less Details
Width 1-1/4"
Height 4-1/8"
Bolt Pattern 1-3/4" x 2-15/16"
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Zinc Plated Steel
Avantco Compatible Swivel Caster with Brake Enhance your Avantco commercial kitchen appliances with our...
Shop Product
300 lbs
TieredPricing

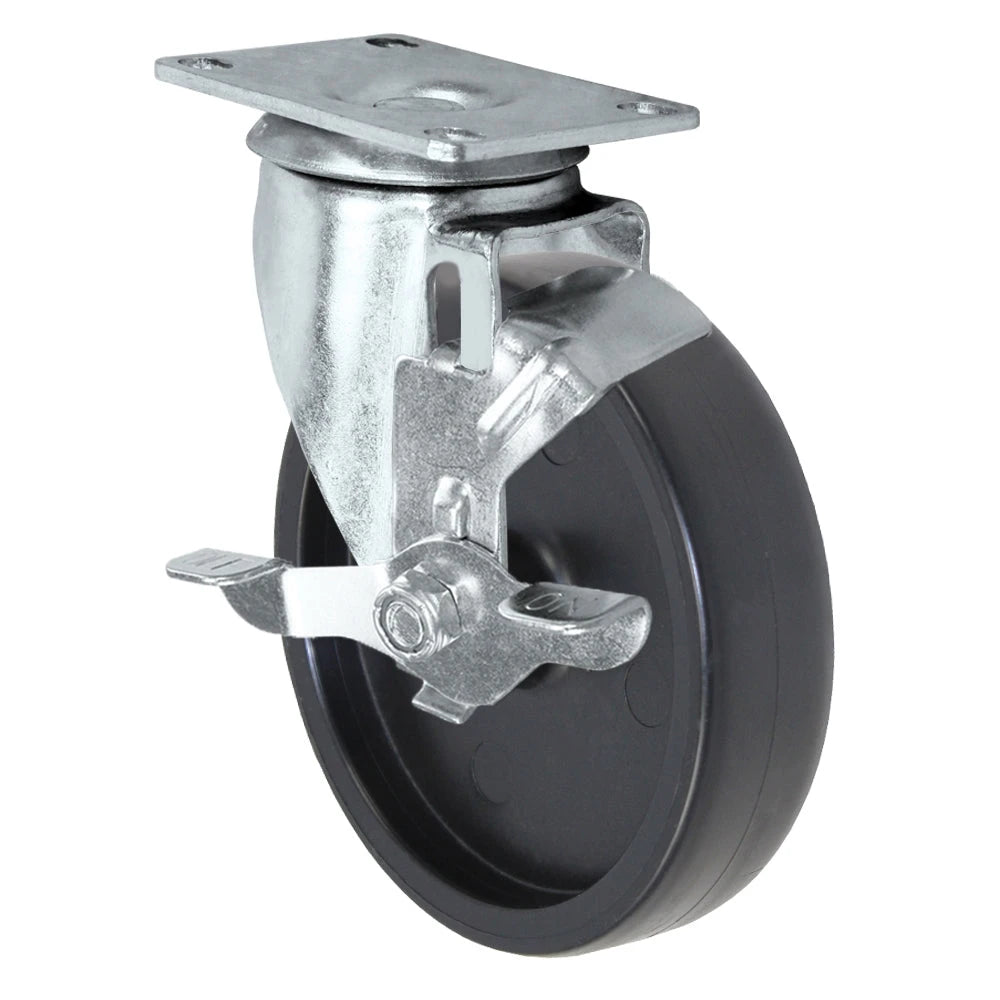

Avantco FF300-FF518 & Frymaster Dean Floor Fryer: Replacement Caster Wheels with Brake CasterHQ
In Stock · Same/Next Day
5" x 1-1/4" Polyolefin Swivel Caster with Brake – 300 lb
Part # AVF-FRY5-CSTR-TLB
from $21.00
Volume pricing available
PolyolefinPlate
Load rating
300 lbs
Size5" x 1-1/4"
Capacity300 lbs
WheelPolyolefin
MountPlate 1-1/4" x 5"
TypeSwivel with Brake · Top Lock Brake
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -40°F to 180°F
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Zinc Plated Steel
Avantco & Frymaster/Dean Floor Fryer Swivel Casters with Brakes Elevate Your Commercial Kitchen Upgrade...
Shop Product
300 lbs
TieredPricing

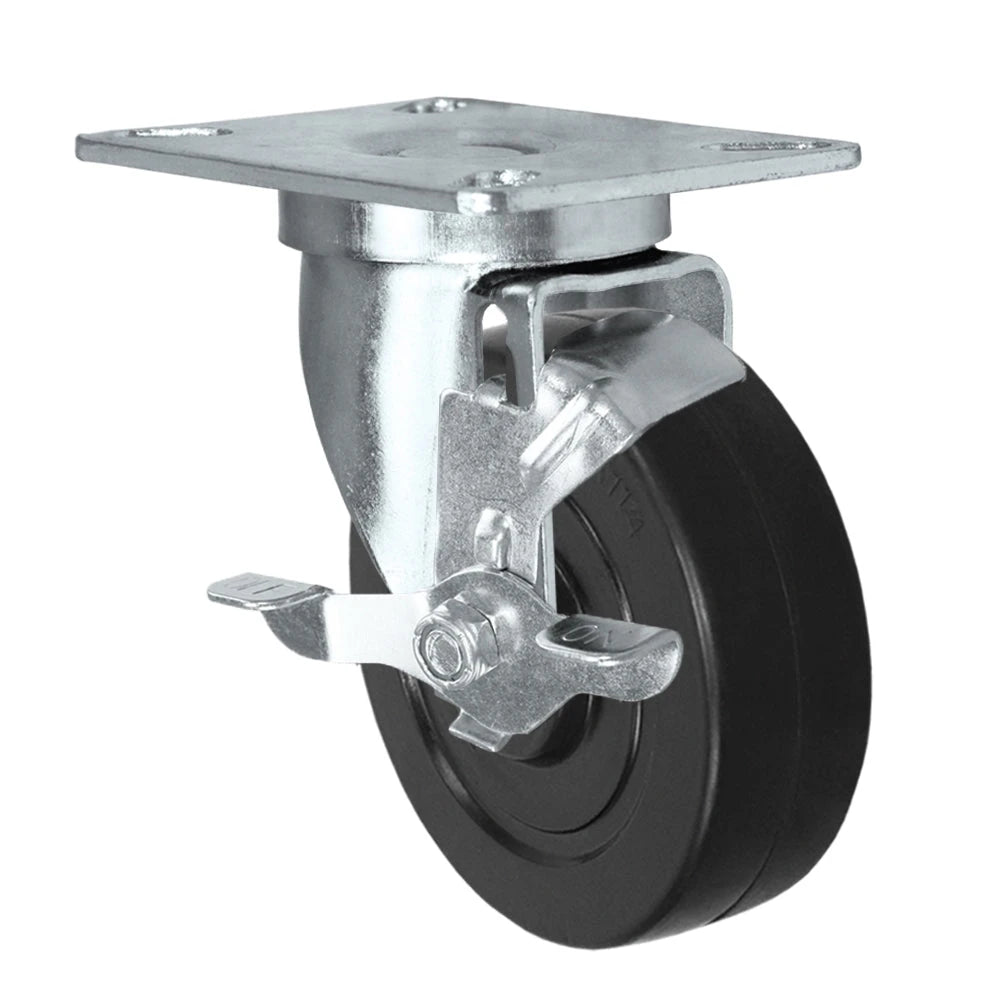

Avantco 17819301 Swivel Plate Caster with Brake 4 Inch - Premium Mobility Upgrade for Commercial Appliances CasterHQ
In Stock · Same/Next Day
4" x 1-1/4" Hard Rubber Swivel Caster with Brake – 300 lb
Part # AVT-4SWVL-PLT-17819301-TLB
from $27.00
Volume pricing available
RubberPlate
Load rating
300 lbs
Size4" x 1-1/4"
Capacity300 lbs
WheelRubber
MountPlate 1-1/4" x 4"
TypeSwivel with Brake · Top Lock Brake
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Bolt Pattern 1-3/4" x 2-15/16"
Rig Type Swivel with Brake
Brake Top Lock Brake
Frame Zinc Plated Steel
Avantco 17819301 Swivel Plate Caster with Brake 4 Inch - Premium Mobility Upgrade for...
Shop Product
300 lbs
TieredPricing

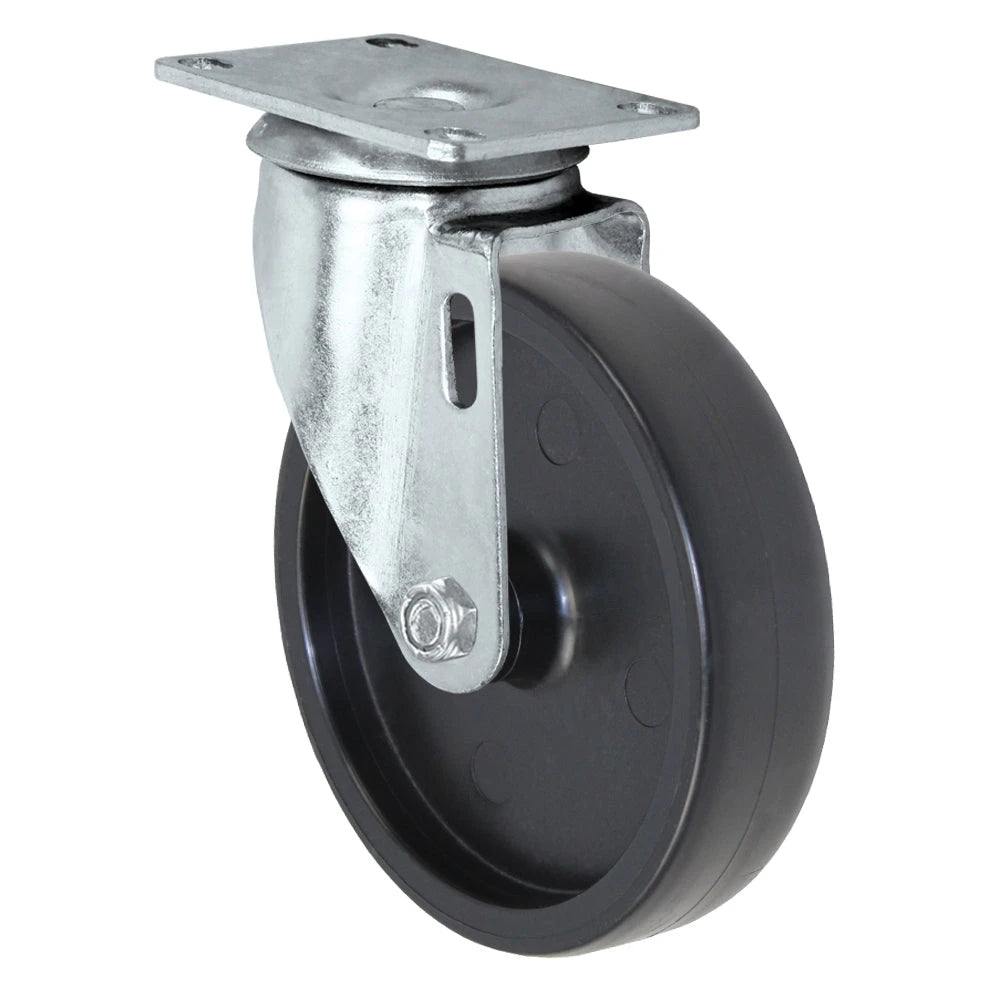

Avantco FF300-FF518 & Frymaster Dean Floor Fryer: Replacement Caster Wheels CasterHQ
In Stock · Same/Next Day
5" x 1-1/4" Polyolefin Swivel Caster – 300 lb
Part # AVF-FRY5-CSTR
from $17.00
Volume pricing available
PolyolefinPlate
Load rating
300 lbs
Size5" x 1-1/4"
Capacity300 lbs
WheelPolyolefin
MountPlate 1-1/4" x 5"
TypeSwivel
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Avantco & Frymaster/Dean Floor Fryer Swivel Casters Elevate Your Commercial Kitchen Upgrade your Avantco...
Shop Product

Casters in this Advantco collection by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Rubber 3 and 4 in 275 to 300 lb cushioned and quiet on finished floors
Polyolefin 5 in 300 lb -40°F to 180°F wet and chemical areas, light to medium loads

Ratings are for single casters of casters in this Advantco collection, from product fields [S1].

Wheel sizes

Wheel Treads Rated
3 x 1-1/4 in rubber 275 lb
4 x 1-1/4 in rubber 300 lb
5 x 1-1/4 in polyolefin 300 lb

Choosing casters in this Advantco collection

  1. Load: divide the loaded weight by three for a four-caster cart [S2]. A 300 lb caster from this page then suits about 900 lb, and the strongest at 300 lb about 900 lb.
  2. Mount: most casters in this Advantco collection use a 1-1/4 x 3 in top plate; 1-1/4 x 4 in and 1-1/4 x 5 in plates are listed too; measure bolt hole centers on the old plate and compare.
  3. Floor: on casters in this Advantco collection, rubber is kinder to tile and finished floors; polyolefin rolls easier under heavy loads on smooth concrete.
  4. Rig: swivel casters in this Advantco collection are listed, with top lock brake options.

Related: industrial casters.

Casters in this Advantco collection questions

How much weight can casters in this Advantco collection carry?

Single casters in this Advantco collection are rated 275 to 300 lb.

What top plate do casters in this Advantco collection use?

Most casters in this Advantco collection use 1-1/4 x 3 in. Others listed: 1-1/4 x 4 in and 1-1/4 x 5 in.

What wheel material is most common on casters in this Advantco collection?

Rubber leads on casters in this Advantco collection, rated 275 to 300 lb per caster. Polyolefin is next at 300 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com
