Elevate Your Commercial Kitchen

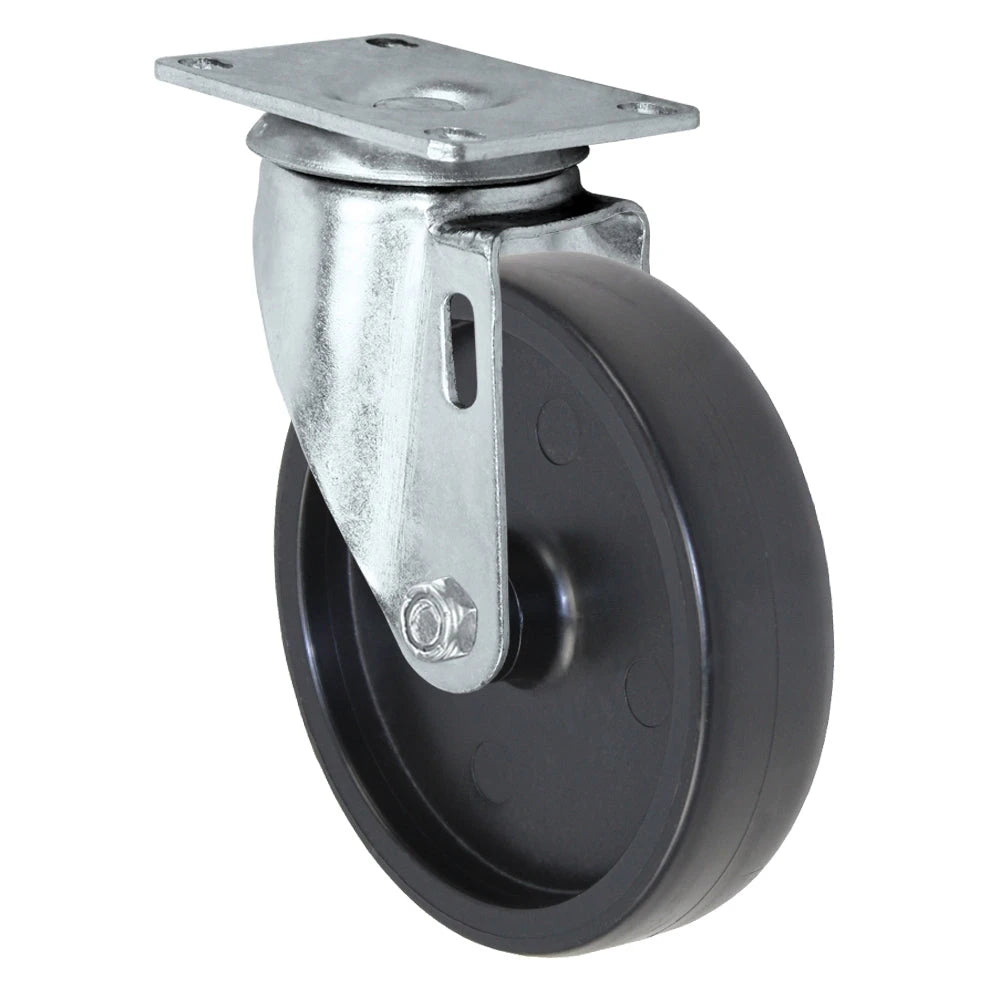

Upgrade your Avantco or Frymaster/Dean floor fryers with our premium swivel casters featuring Polyolefin wheels. Designed to fit a variety of models, these casters enhance the mobility and efficiency of your heavy-duty fryers.
The heat-treated ball-bearing raceway ensures smooth glides, while the bright zinc-plated finish adds resilience and rust resistance.
Exceptional Wheel Quality
Polyolefin wheels are known for their high resistance to shock and impact. They're also non-marking, protecting your floors from any damage. The wheels offer resistance to abrasions and chemicals, ensuring a long-lasting product.
| Technical Specifications |
|---|
| Wheel Size: 5" x 1-1/4" |

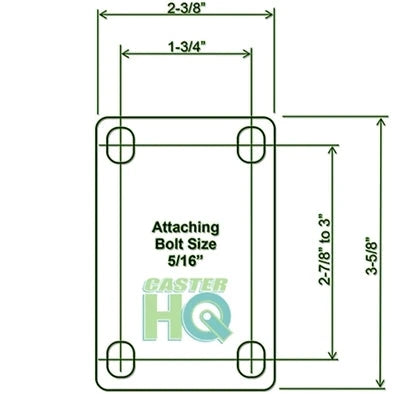

| Top Plate Size: 2-3/8" x 3-5/8" |
| Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3" |
| Bolt Size: 5/16" (hardware not included) |
| Mounting Height: 6-1/8" |
| Weight Capacity: 300 lbs per caster |
Opt for quality and convenience—make the move to these premium swivel casters and elevate the efficiency and mobility of your commercial kitchen.
Fits Beverage-Air equipment (replaces 401-209A): STF-49, STF-58 milk coolers.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Upgrade your Avantco and Frymaster fryers with our top-of-the-line replacement casters. Designed specifically for heavy-duty fryers, these casters are built to withstand the heat and rigorous conditions of a busy kitchen.
The smooth-rolling 5" polyolefin wheels make it a breeze to move your fryers for cleaning or rearrangement, offering a practical blend of durability and maneuverability.
Easy to install with a standard bolt size of 5/16" (hardware not included). Compatible with Avantco FF300, FF400, FF500, FF518, and Frymaster / Dean Floor Fryers.
Each caster can handle up to 300 lbs, making it perfect for heavy-duty fryers. The wheels are highly resistant to chemicals and abrasions, ensuring longevity.
This 5" x 1-1/4" Polyolefin Swivel Caster – 300 lb is rated to 300 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyolefin wheel with a 1-1/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

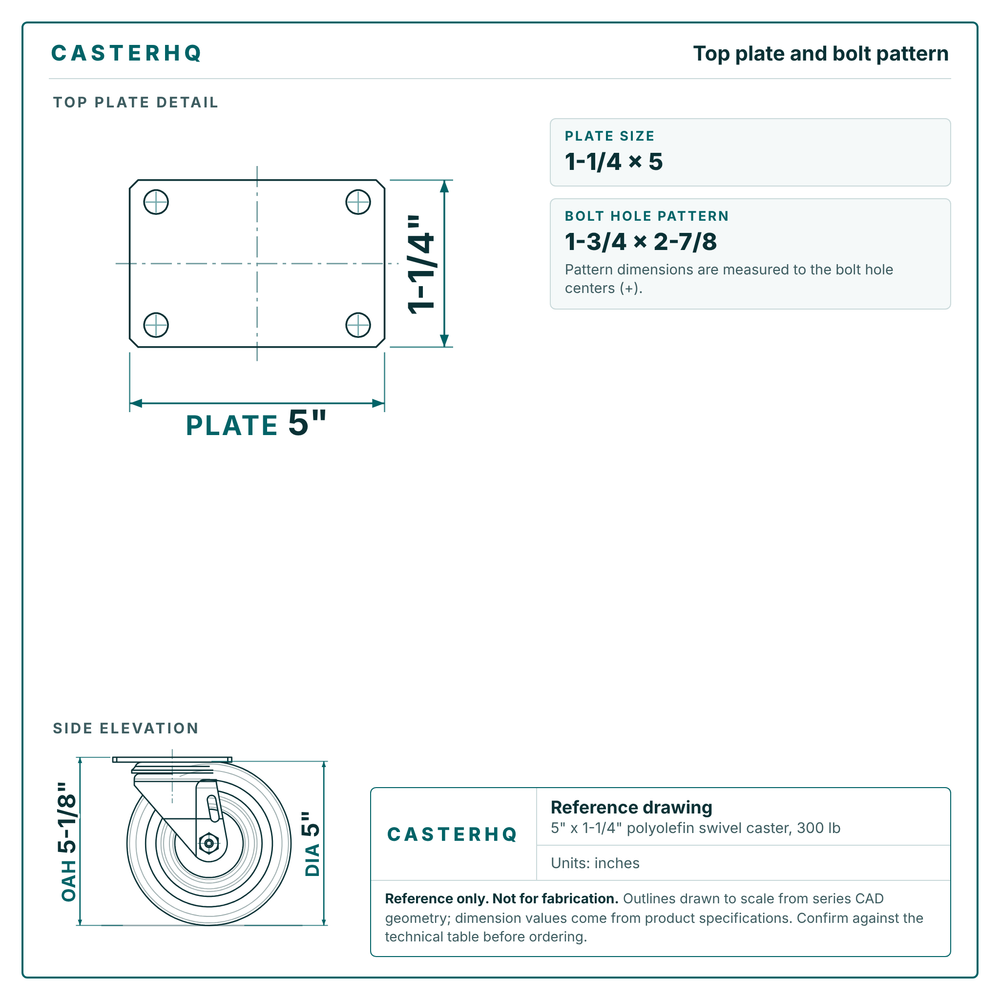

This caster uses a top-plate mount with a 1-1/4" x 5" plate and a 1-3/4" x 2-7/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyolefin wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5-1/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$17.00

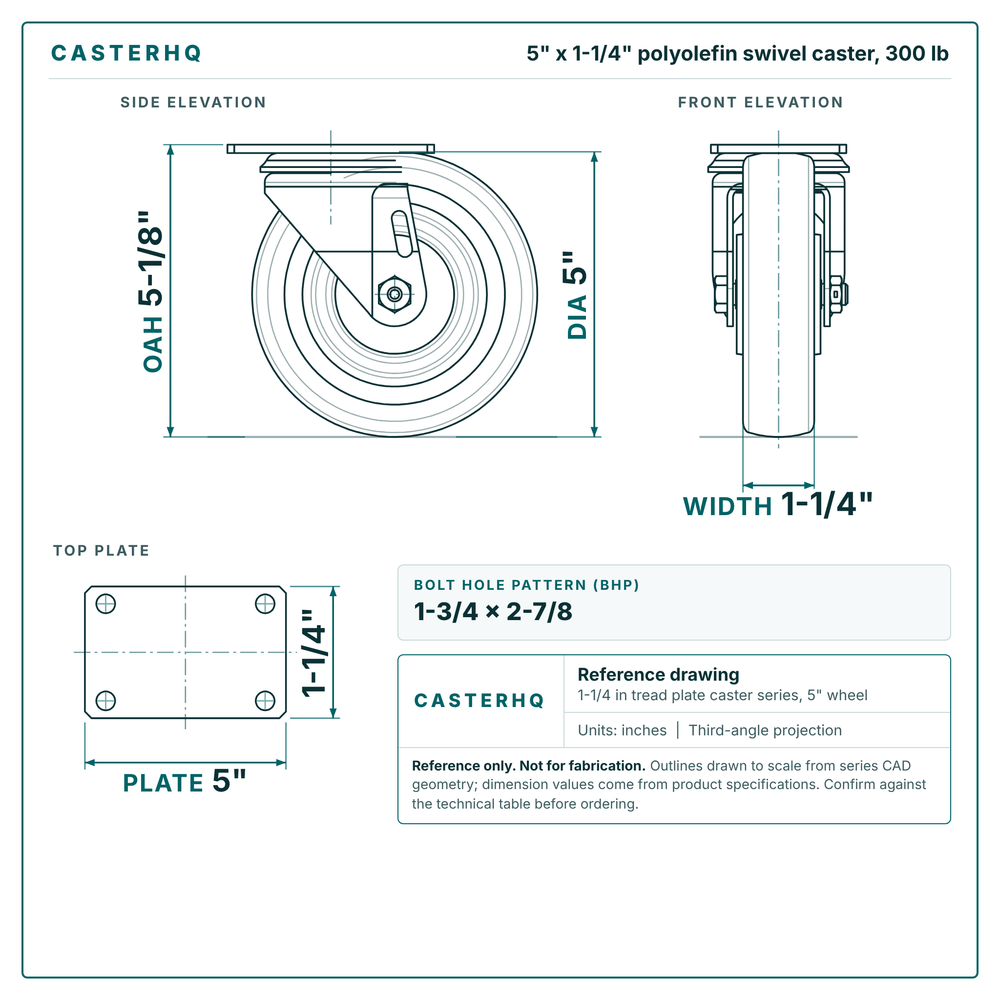

| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 5-1/8" |
| Plate Size | 1-1/4" x 5" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 300 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
5" x 1-1/4" Thermo Plastic Rubber Swivel Caster – 315 lb | CasterHQ
5" x 1-1/4" · 315 lbs
$23
5" x 1.25" FX Formula XS TPR Rigid Caster – 315 lb | CasterHQ
5" x 1-1/4" · 315 lbs
$17
5" x 1.25" TPR FX Formula XS Swivel Caster – 315 lb | CasterHQ
5" x 1-1/4" · 315 lbs
$18
View all 5′ x 1-1/4′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 300 lbs | 5" × 1-1/4"Polyolefin | Swivel | 5-1/8" | $17.00 | Viewing | |
| 315 lbsHeavier duty | 5" × 1-1/4"Gray Rubber | Swivel | 6-1/4" | $23.00 | View → | |
| 315 lbsHeavier duty | 5" × 1-1/4"Gray Rubber | Rigid | 6-1/4" | $17.00 | View → | |
| 315 lbsHeavier duty | 5" × 1-1/4"Gray Rubber | Swivel | 6-1/4" | $18.00 | View → | |
| 325 lbsHeavier duty | 5" × 1-1/4"Polyurethane | Rigid | 6-1/4" | $20.00 | View → |
