All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Wheel = wheel diameter · capacity is per caster.














| Series and housing | Ball | Rating |
|---|---|---|
| HDBT, carbon steel housing, yellow zinc | 1-3/16 in stainless | 550 or 850 lb |
| HDBT, aluminum housing, stainless inner race | 1-3/16 in stainless | 550 lb |

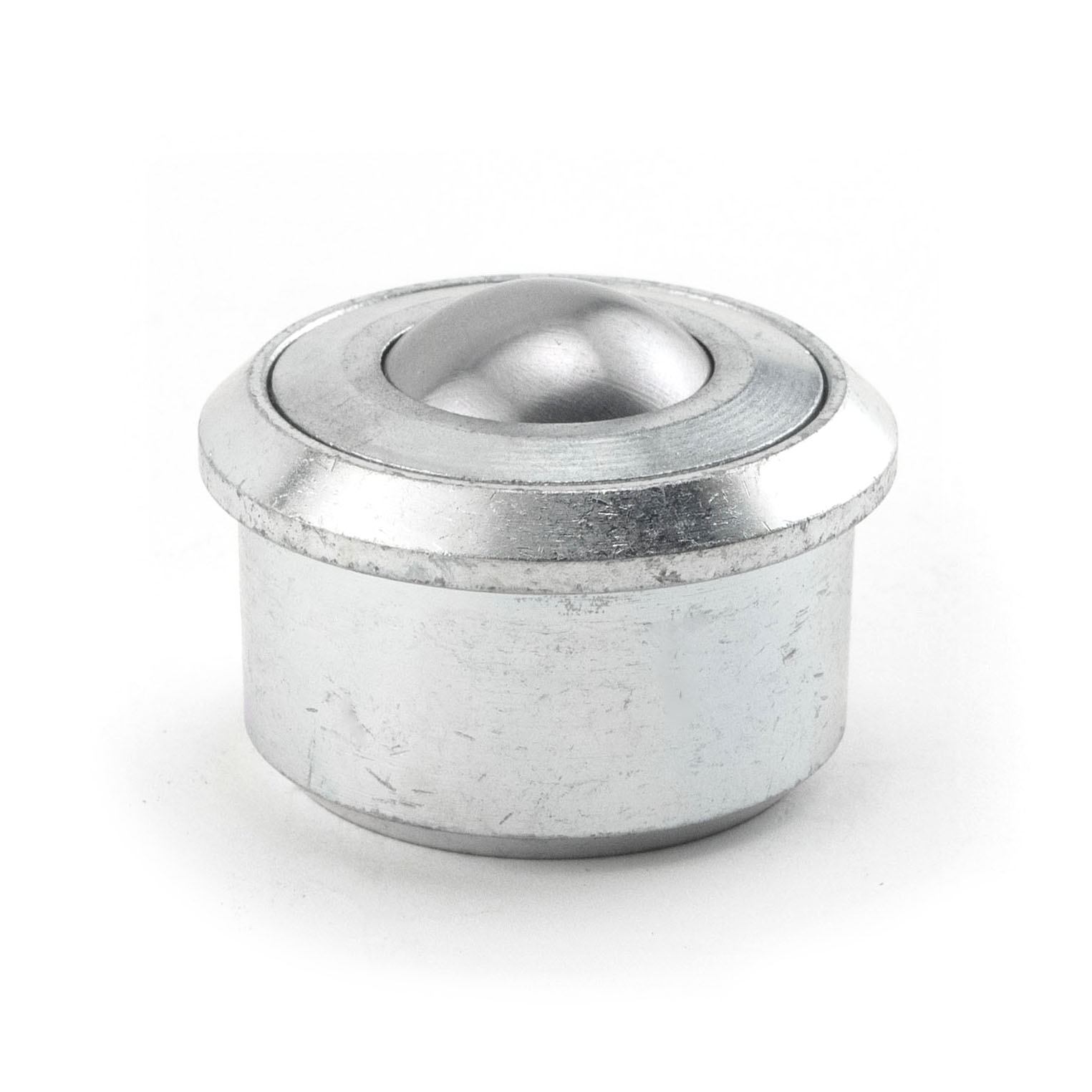

| HDBTM, carbon steel housing, yellow zinc | 1-3/16 in stainless | 750 or 850 lb |
| HDBTM, stainless housing | 1-3/16 in stainless | 850 lb |
From product titles and listings [S1].
Related: HDBT series, HDBTM series and all Hudson Bearings ball transfers.
550 to 850 lb each, all with a 1-3/16 in stainless ball.
It saves weight on aircraft decks; the aluminum HDBT lists 550 lb.
