Ductile Steel Casters

Plate sizes: 4-1/2 x 6-1/4Bolt holes: 2-7/16 x 4-15/16Diameter: 5, 6, 8, 10 inTread: 2, 2-1/2 inCapacity: up to 1,500 lb
4-1/2 x 6-1/4 inch top-plate casters for warehouse carts, racks, and everyday plant fixtures. You will see wheel diameters 5, 6, 8, 10 in, steel treads, and capacities 1,500 lb across the SKUs listed below. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. These medium-duty options cover everyday warehouse carts, racks, and everyday plant fixtures without jumping to extreme forged series.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 5" x 2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
5" x 2" Ductile Steel Swivel Caster – 1500 lb
Part # 35-S-520-DS-04
from $38.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Diameter 5"
Capacity 1500 lbs
Wheel Ductile Iron
Mount Plate
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 5" x 2" Ductile Steel Swivel Caster...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Ductile Steel Rigid Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
10" x 2-1/2" Ductile Steel Rigid Caster – 1500 lb
Part # 35-R-1025-DS-04
$280.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Diameter 10"
Capacity 1500 lbs
Wheel Ductile Iron
Mount Plate
More Details Less Details
Width 2-1/2"
Height 11-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -40°F to 600°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Ductile Steel Rigid Caster...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Ductile Steel Swivel Caster – 1500 lb
Part # 35-S-825-DS-04
$240.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Diameter 8"
Capacity 1500 lbs
Wheel Ductile Iron
Mount Plate
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Ductile Steel Swivel Caster...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" Ductile Steel Swivel Caster – 1500 lb
Part # 35-S-820-DS-04
from $30.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Diameter 8"
Capacity 1500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 4-1/2" x 6-1/4"
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2" Ductile Steel Swivel Caster...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 6" x 2-1/2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
6" x 2-1/2" Ductile Steel Swivel Caster – 1500 lb
Part # 35-S-625-DS-04
$224.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Diameter 6"
Capacity 1500 lbs
Wheel Ductile Iron
Mount Plate
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range Up to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 6" x 2-1/2" Ductile Steel Swivel Caster...
Shop Product
1500 lbs
TieredPricing

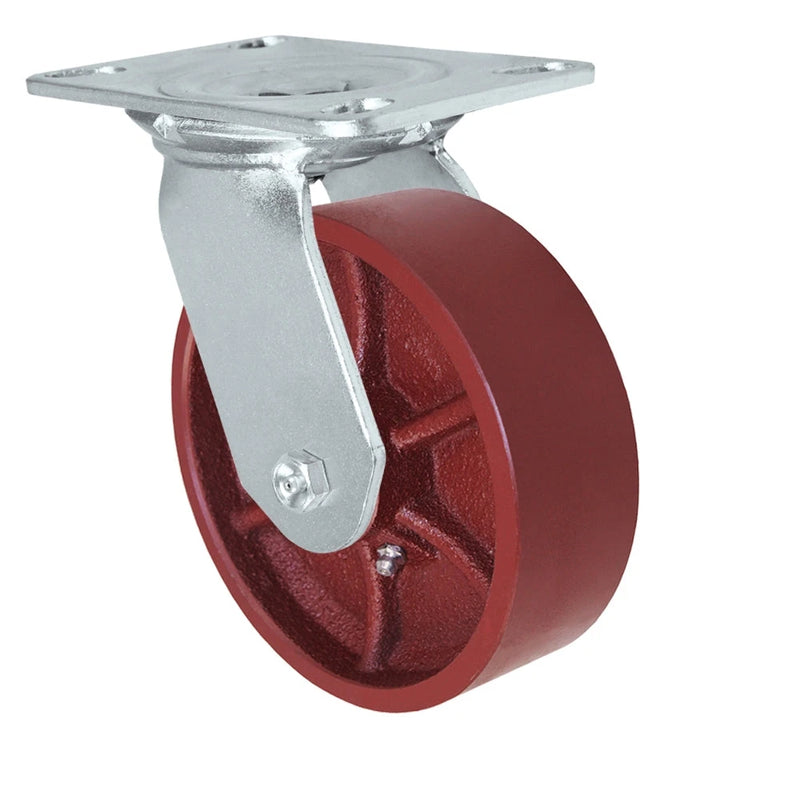

Durastar Medium Heavy Duty 35 Series - 6" x 2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
6" x 2" Ductile Steel Swivel Caster – 1500 lb
Part # 35-S-620-DS-04
from $27.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Diameter 6"
Capacity 1500 lbs
Wheel Ductile Iron
Mount Plate
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 6" x 2" Ductile Steel Swivel Caster...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
10" x 2-1/2" Ductile Steel Swivel Caster – 1500 lb from $139.99
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Diameter 10"
Capacity 1500 lbs
Wheel Ductile Iron
Mount Plate
More Details Less Details
Width 2-1/2"
Height 11-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -40°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Ductile Steel Swivel Caster...
Shop Product
