Durastar Medium Heavy Duty 35 Series - 6" x 2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 35-S-620-DS-04

Product Overview

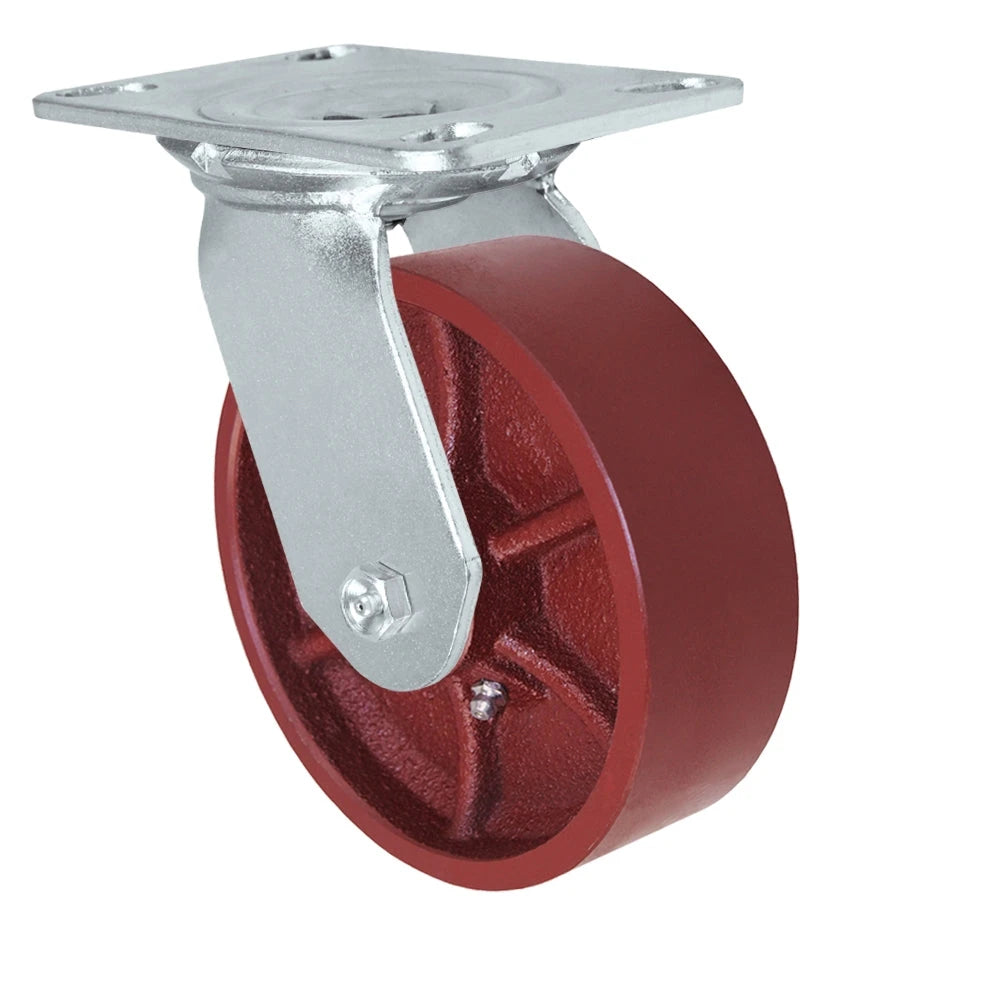

Durastar Medium Heavy Duty 35 Series - 6" x 2" Ductile Steel Swivel Caster


Product Overview

The Durastar Medium Heavy Duty 35 Series Ductile Steel Swivel Caster represents the pinnacle of industrial mobility solutions. Featuring a robust 6" x 2" ductile steel wheel, this swivel caster supports an impressive load capacity of up to 1500 lbs while ensuring smooth and efficient mobility. Designed for extreme heavy-duty applications, it combines unparalleled strength with superior performance and customizable bearing options.

Key Features

  • Wheel Size: 6" diameter x 2" width Ductile Steel
  • Load Capacity: Supports up to 1500 lbs per caster
  • Caster Type: Swivel for enhanced maneuverability
  • Bearing Options: Choose from Roller, Precision Ball, or Delrin bearings
  • Durable Construction: 1/4" cold forged steel top plate and yoke legs with zinc-plated finish for corrosion resistance
  • Temperature Range: Suitable for use in high-temperature environments (up to 180°F with metal bearing components)
  • Easy Maintenance: Zerk fitting available for simple lubrication

Applications

This versatile caster is ideal for use in:

  • Heavy manufacturing plants and foundries
  • Automotive and aerospace industries
  • Warehouses and distribution centers with extreme load requirements
  • Heavy-duty industrial carts and dollies
  • Material handling equipment in harsh environments
  • Applications exposed to high temperatures and corrosive substances
Technical Specs

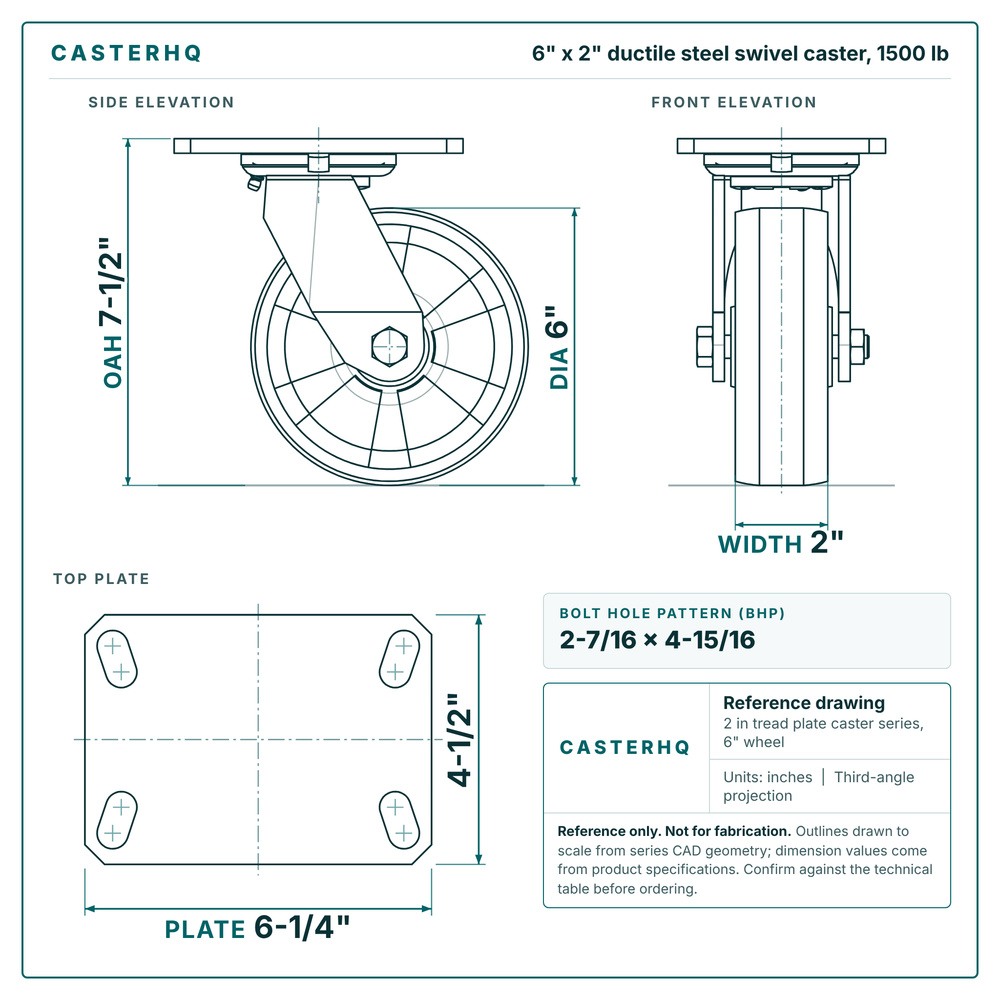

Technical Specifications

  • Wheel Diameter: 6 inches
  • Tread Width: 2 inches
  • Wheel Type: Ductile Steel
  • Plate Size: 4-½" x 6-¼"
  • Load Capacity: 1500 lbs per caster
  • Overall Height (OAH): 7-1/2 inches
  • Swivel Radius: 4-3/4 inches
  • Bearing Options: Roller or Q34 Precision Ball
  • Caster Type: Swivel
  • Attaching Bolt Diameter: 1/2 inch
  • Bolt Pattern: 2-7/16" x 4-15/16" to 3-⅜" x 5-¼"
Key Features

Top 10 Features: Durastar Medium Heavy Duty 35 Series Ductile Steel Swivel Caster

  • Exceptional Load Capacity: Supports up to 1500 lbs per caster, ideal for extreme heavy-duty industrial applications
  • Premium Wheel Material: 6" x 2" Ductile Steel wheel for unmatched durability and strength in harsh environments
  • Customizable Bearings: Choose between Roller or Q34 Precision Ball bearings to suit specific operational needs
  • Corrosion-Resistant Finish: Zinc-plated for enhanced longevity in various industrial settings
  • Versatile Swivel Design: 4-3/4" swivel radius for excellent maneuverability in tight spaces
  • Robust Construction: 1/4" cold forged steel top plate and yoke legs for maximum strength and durability
  • Large Mounting Plate: 4-½" x 6-¼" top plate with multiple bolt hole patterns for secure attachment
  • High-Temperature Tolerance: Suitable for use in environments up to 180°F with metal bearing components
  • Easy Maintenance: Zerk fitting available for simple lubrication without disassembly
  • Versatile Applications: Ideal for heavy manufacturing, automotive, aerospace industries, and extreme load requirements
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Medium Heavy Duty 35 Series Ductile Steel Swivel Caster


Industrial-Grade Performance

The Durastar 35 Series 6" x 2" Ductile Steel Swivel Caster represents the pinnacle of industrial mobility solutions. With a robust 1500 lb capacity per caster, this powerhouse is engineered for extreme heavy-duty applications, combining unparalleled strength with exceptional durability.

Advanced Wheel Technology

  • Material: Ductile Steel with tensile strength of 70,000 PSI
  • Benefits: Extreme durability for the toughest industrial environments
  • Resistance: High shock and impact resistant
  • Performance: Ideal for applications involving heavy loads and frequent movement
  • Temperature Range: Suitable for use up to 180°F with metal bearing components

Customizable Bearing Options

Choose from a range of bearing types to suit your specific operational needs:

  • Roller Bearing: For smooth rolling under heavy loads
  • Q34 Precision Ball Bearing: For reduced rolling resistance and precise movement

Industrial Applications

The Durastar 35 Series Ductile Steel caster excels in various industrial settings, including:

  • Heavy manufacturing plants and foundries
  • Automotive and aerospace industries
  • Warehouses and distribution centers with extreme load requirements
  • Material handling equipment in harsh environments
  • Applications exposed to high temperatures and corrosive substances

Why Choose Durastar?

With over three decades of caster innovation, Durastar stands as a trusted name in industrial mobility solutions. The 35 Series undergoes rigorous testing, including:

  • 150,000+ rotation cycles at maximum load
  • Corrosion resistance validation
  • Impact resistance testing per ISO 22883

Backed by a comprehensive warranty and expert support, this caster is designed to enhance productivity and operational efficiency in the most demanding industrial environments.
