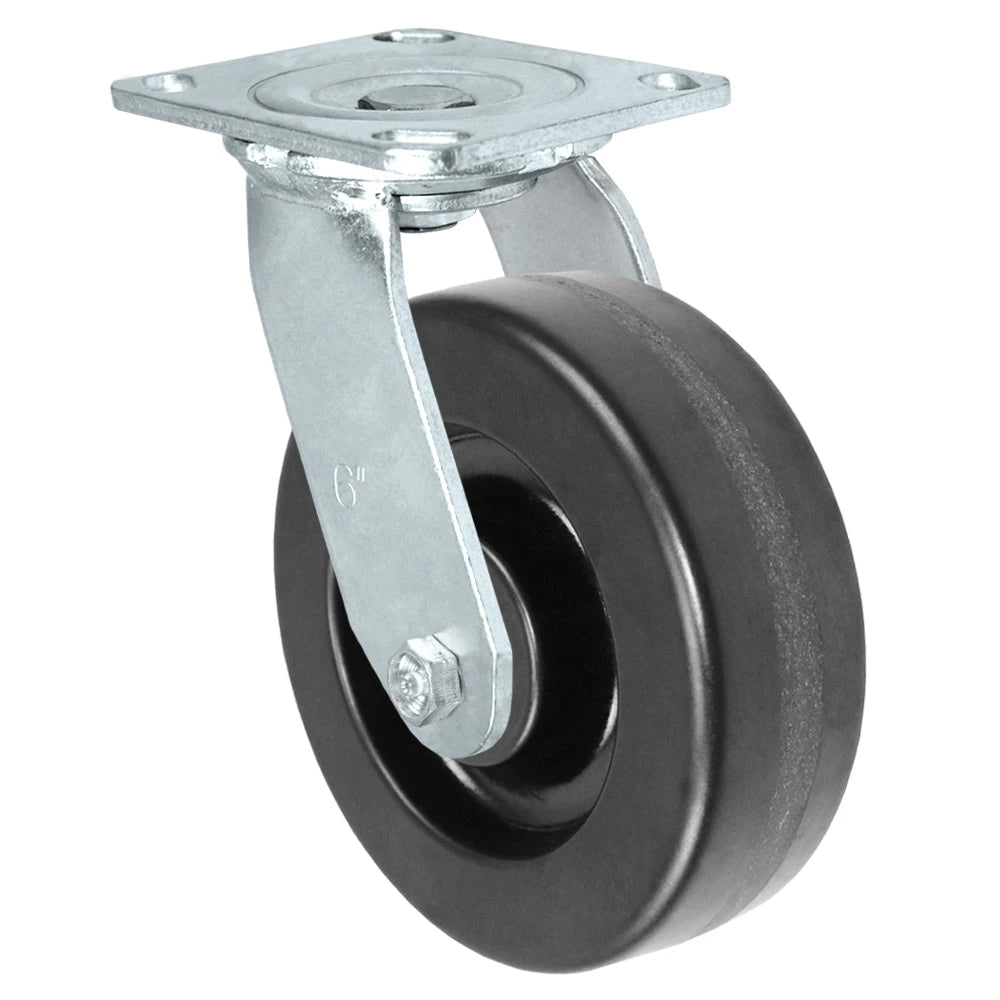

When reliability matters, this 6-inch x 2-inch swivel caster is your go-to solution for heavy-duty applications. Designed for industrial performance, it features a phenolic wheel that delivers steel-like strength without the weight. With a 1,250 lbs capacity per caster, this is the perfect solution for carts, dollies, racks, and equipment that demand durability and seamless maneuverability.
Made from 1/4" thick cold-rolled steel, the bracket is designed to withstand the toughest environments. Double ball raceways ensure smooth swiveling, while the 5/8" kingpin provides rock-solid stability under heavy loads.
This caster is trusted by warehouses, manufacturers, food service operations, and industrial facilities for its unbeatable combination of strength, mobility, and long-term durability.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 6-inch swivel caster is one of the most widely used industrial casters in medium-to-heavy-duty applications. It’s trusted by OEM manufacturers, warehouses, food service operations, and material handling industries.
The phenolic wheel delivers unmatched durability—providing the strength of steel without the weight. Non-marking and highly resistant to chemicals, it’s a smart choice for environments where floor protection and high load capacity are critical.
With multiple brake and bearing options, this caster is fully customizable to meet the specific needs of warehouses, retail stores, distribution centers, and heavy-duty equipment.
Order now and get fast shipping on this industrial-grade caster!
This 6" x 2" Phenolic Swivel Caster – 1,250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

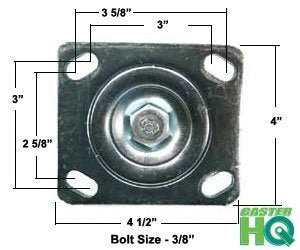

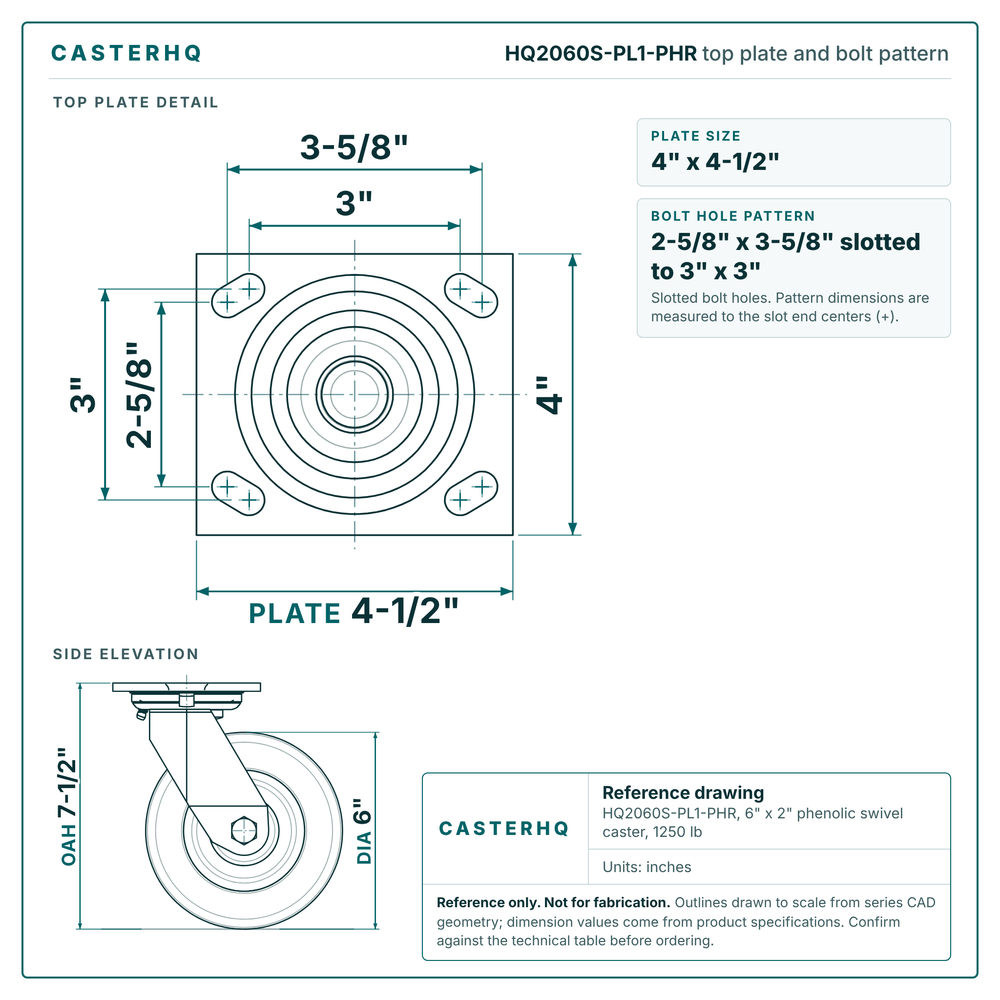

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -50°F to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

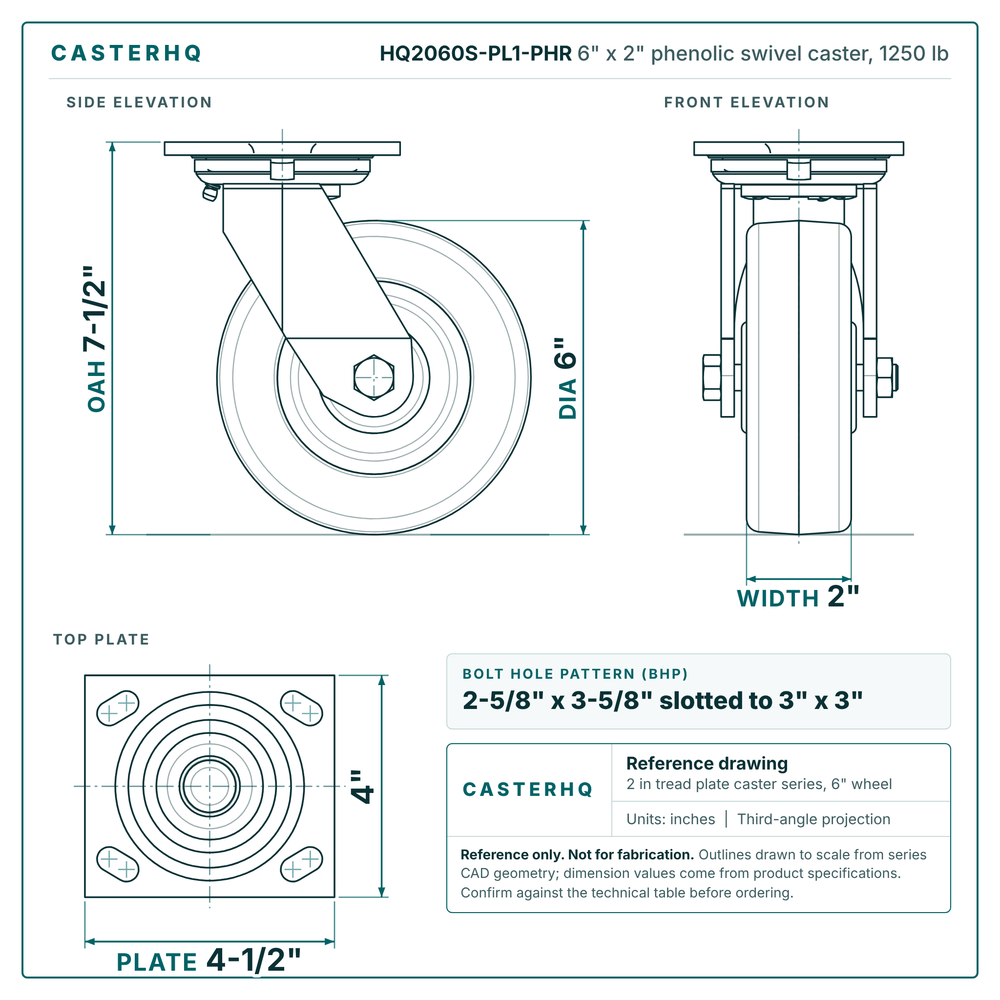

The overall height (floor to top of plate or stem) is 7-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$29.00
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Overall Height | 7-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -50°F to 250°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
